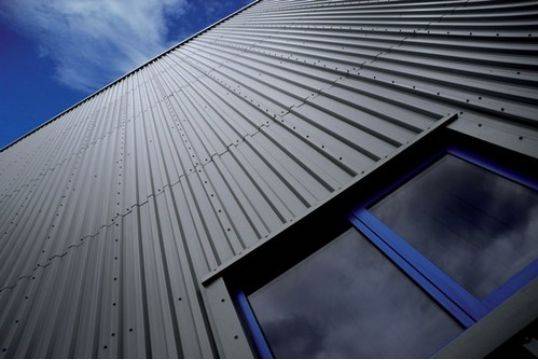

KS1000 EP (EnergiPanel) Insulated Wall Panel System – PIR

Application

Suitable for vertical applications.

Description

Recurring box profile, through-fix steel-faced, polyisocyanurate (PIR) insulated wall panel system with intelligent solar air heating capacity.

Four evacuated hex profiles are formed adjacent to each insulated panel's solar absorbent, external steel skin. Air flow is induced through these evacuated channels, harvesting solar energy collected by the panels’ external surface. This heated air can be delivered into the building providing an effective supplementary renewable energy heating system.


Features and benefits:

  • Panels are immune to attack from mould, fungi, mildew and vermin.
  • No urea-formaldehyde is used in the construction.
  • Panels are not deleterious.
  • Zero ozone depletion potential (ODP).
  • An air leakage rate of 3 m³/hr/m² at 50 Pa or less can be achieved when the full building envelope is constructed using Kingspan panel
  • Can be integrated with the KS1000 FC Five Crown/ Box Profile PIR insulated panel system (specified separately).


Approvals:

  • CE marked to BS EN 14509: 2013.

- Fire:

  • LPS 1181: 2014: Part 1: Issue 1.2, series of fire growth tests for LPCB approval and is certified to LPS 1181 Grade EXT-B. For further information contact manufacturer's technical services department.
  • Reaction to fire classification according to BS EN 13501–1:2007+A1:2009: B-s2,d0.


Side rails and platforms supports:

Framed structure to be specified separately to include the following as required:

  • Multibeam eaves beams.
  • Multibeam side rails.
  • Multichannel side rails.
  • Multichannel trimmers.
  • Multichannel structural partitions.


Warranties:

Kingspan Panel Protection Warranty covering the structural and thermal performance for a period of up to 25 years and Kingspan Coating Warranty for a period of up to 40 years (subject to project specific information).

General information

Material

Steel

PIR

Shape

Rectangular

WarrantyDescription

25/ 40 years

Kingspan Panel Protection Warranty covering the structural and thermal performance for a period of up to 25 years and Kingspan Coating Warranty for a period of up to 40 years (subject to project specific information).

Uniclass 2015

Ss_25_20_14_54 Metal insulating sandwich panel cladding systemsPrimary

CAWS

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

Specification data - Metal insulating sandwich panel cladding systems Enhanced data

Cladding panels

-

Panel type

ECOsafe and FIREsafe steel/PIR insulated sandwich panels, 0.35 W/m²K.

Specify colour/ finish below, under 'Panel.


Core thickness: 68 mm, overall thickness: 106 mm.

Weight: 11.5 kg/m².


External facing material: Metallic protected steel to BS EN 10346: 2009, 0.5 mm nominal thickness.


Internal facing material: Metallic protected steel to BS EN 10346: 2009., 0.4 mm thick.

Internal facing colour/ finish: CLEANsafe 15: Standard colour is “bright white” with an easily cleaned surface.


Single figure weighted sound reduction index (Rw): 25 dB.

Panel fasteners

Consult manufacturer for installation details and insert requirements for primary and secondary fasteners (type and number/ location).

-

Side laps sealing

Site-applied sealant.

End laps sealing

Site-applied sealant.

Continuity thermal insulation

Kingspan LPCB or FM Approved PIR board insulation to be installed in certain details to ensure thermal continuity.

Fill any gaps with fire-rated canister insulation.

Consult with manufacturer for further details.

System accessories

Consult manufacturer and insert requirements.

-

Product Reference

KS1000 EP (EnergiPanel) Insulated Wall Panel System – PIR

Design

Insert drawing reference or similar.


Length:

  • Standard lengths: 1.8–12.0 m, or insert drawing reference.
  • Non-standard lengths of 12.0–15.0 m or <1.8 m are available on request; consult manufacturer for details.
