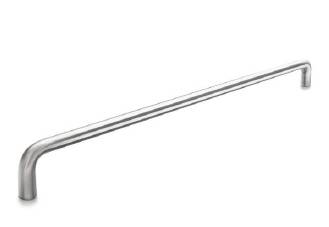

Knud Holscher collection: Pull handle straight - Pull handle

Verified by manufacturer 1 month ago

14MM STRAIGHT 125MM, THREAD M8 SSS

dline Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • Certificate of Conformity

    Certificate type

Stainless steel, straight pull handles.

Jump to:
+44 (0)121 3734488 Website

Application

Stainless steel pull handle straight. Suitable for private homes or commercial buildings, government offices and cultural centres.

Description

Features and benefits:

  • Available in multiple finishes and colours.
  • Part of Knud Holscher collection.
  • Available in 14 mm and 19 mm diameter.
  • Thread and bush options.
  • Manufactured in the highest quality marine grade, AISI 316 stainless steel, protecting against high levels of corrosion.
  • Certified in accordance with EN 1906 to ---A----.
  • 20 year warranty.


d line hardware is all about balance: the balance between form and function; between the senses of sight, hearing and touch; between that which you see and that which you don’t; between design that looks good and design that works well; between changing tastes and advances in engineering; and between that which is bent and that which is straight.


Hardware is so named because its products are designed for constant use. Pushed, pulled, turned and bumped over and over again every day –whether in private homes or commercial buildings, government offices and cultural centres – they are required to bear the weight of a heavy coat, to open a window and lock it again, or to prevent a door pulled open from hitting the wall behind it.


Every hardware piece in the Knud Holscher collection is made in AISI 316 steel. AISI 316 is an acid-proof, non-corrosive, marine quality stainless steel – a robust, raw, sustainable substance whose strength and resilience we have unfaltering confidence in.


Both internally and externally, every detail of every d line piece is rigorously tested for seamless functioning so that it endures. Then, assisted by the most cutting-edge machinery in our field, each is expertly crafted by hand.

General information

Color

Silver

Guidance for specification option:

  • Satin stainless steel.
  • Polished stainless steel.

Copper

Black

Guidance for specification option:

  • Charcoal.
  • Black.
  • Super matt black.

Gold

Finish

Satin

Guidance for specification option:

Satin grain 320, crafted by hand.

Polished

PVD

Brass

Material

Stainless steel

Guidance for specification option:

Stainless steel AISI 316.

Shape

Rectangle

Length

139 mm

144 mm

219 mm

319 mm

419 mm

Show more

Width

14 mm

19 mm

Manufacturer guidance

Diameter.

Height

50 mm

65 mm

Manufacturer guidance

Projection.

Warranty description

20 year

Guidance for specification option:

20 year warranty (5 years for coated items).

Uniclass

Pr_30_36_59_64 Pull handlesPrimary

CAWS

P21/42 Pull handles

P21/641 Pull handles

Specification data - Pull handles

Standard

To EN 1906 A.

Classification grades (minimum)

-

Door mass

No requirement.

Corrosion resistance

3.

Form

Straight bar.

Diameter

14 mm.

Material and finish

AISI 316 stainless steel (polished).

AISI 316 stainless steel (PVD).

AISI 316 stainless steel (powder-coated).

AISI 316 stainless steel (satin).

Guidance for specification option:

Satin grain 320, crafted by hand.

Colour

Silver.

Charcoal.

Gunmetal.

Copper.

Brass.

White.

Black.

Pale telegrey.

Grey.

Super matt black.

Super matt white.

Accessories

Not required.

14491592380 - Bush head bolt M8 x 30 mm.

Projection

50 mm.

Length

139 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Stainless steel

Guidance for specification option:

Stainless steel AISI 316.

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.59 kg CO₂ eq/kg

Manufacturer guidance

We have fully declared our product and by doing so have now an option to Re-handle at the end of life. All our EPD information is contained within the certificate. By Re-handling at the end of life you will extend the product warranty up to 100 years. Also, the embodied carbon used to produce the product will be reduced by 84%.

Recyclability

100%

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

IFC
-

1

DWG
-

1

Third party certifications

EPD

EPD

EPD - pull handles

EPD

EPD

Pull handle straight (EPD)

Certificate of Conformity

Certificate of Conformity

EN1906

Literature

d line brand book

d line brand book

Book of curated collections

Book of curated collections

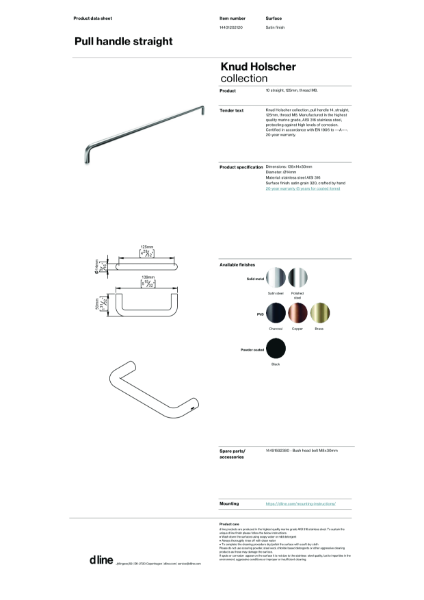

Pull handle straight (data sheet)
