Kingspan Kooltherm Cavity Closer

Kingspan Insulation

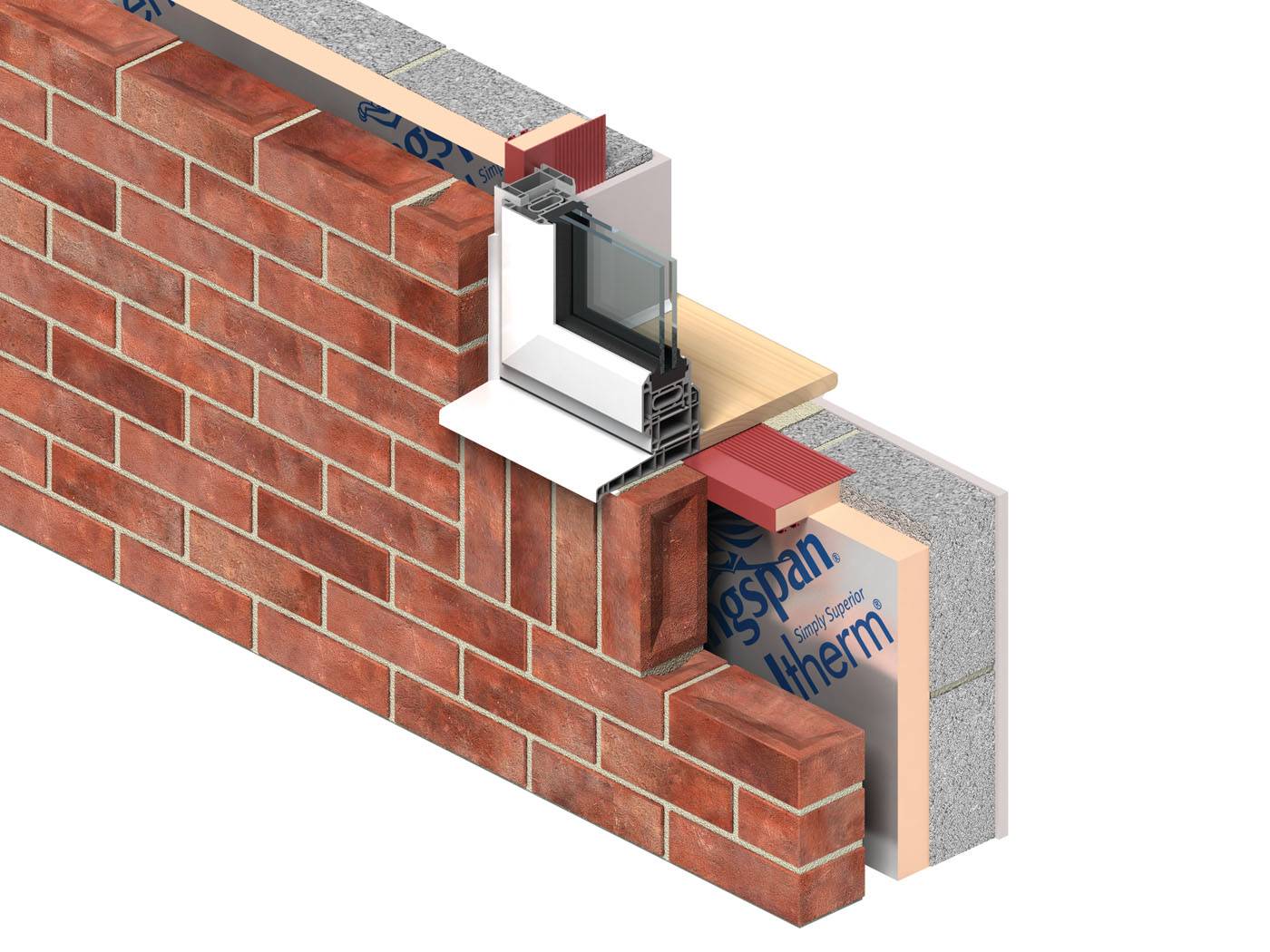

Premium performance rigid thermoset phenolic insulated PVC-U extrusions for closing cavities around wall openings in masonry cavity, timber frame and steel frame system (SFS) wall constructions.

Jump to:
+44 (0)1544 388601 www.kingspaninsulation.co.uk
Description

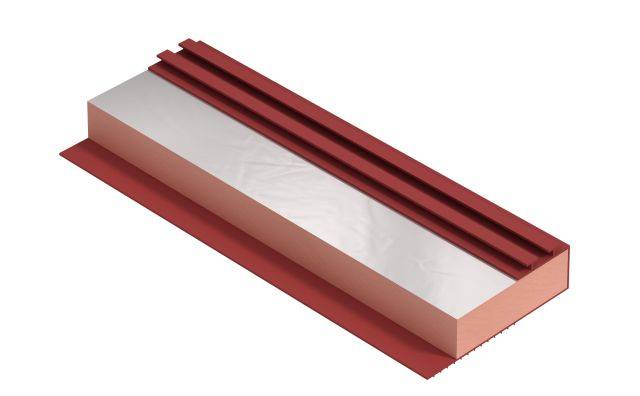

Kingspan Kooltherm Cavity Closer is a cavity closer comprising a PVC-U extrusion with a premium performance rigid thermoset fibre-free phenolic insulation core.

Available in thirteen profile widths ranging from 50–150 mm. Jointing clips extend the range further by enabling sections to be coupled back-to-back, in order to suit cavity widths of up to 300 mm.

The casing incorporates tee projections along one plane length for the prevention of water tracking within the cavity, and fins along the widest plane length, which form an effective key for the direct application of plaster or screed.

Kingspan Kooltherm Cavity Closer PLUS is a pre–assembled frame, comprising cavity closer sections, fabricated off site, to accurately match specified opening sizes. Available in the same profile widths as Kingspan Kooltherm Cavity Closer.

The cavity closer is manufactured under a management system certified to ISO 9001: 2015 (Quality Management Systems. Requirements), ISO 14001: 2015 (Environmental Management Systems. Requirements), BS OHSAS 18001: 2007 (Occupational Health & Safety Management Systems. Requirements) and ISO 50001: 2011 (Energy Management Systems. Requirements with guidance for use).

General information
Material

PVC–U extrusion with a rigid urathane insulation core

Uniclass 2015 Plastics cavity closers (Pr_35_90_50_64)
Specification data
Product Reference

Kingspan Kooltherm Cavity Closer 50

For 50 mm wide cavities.

Kingspan Kooltherm Cavity Closer 75

For 75 mm wide cavities.

Kingspan Kooltherm Cavity Closer 100

For 100 mm wide cavities.

Kingspan Kooltherm Cavity Closer 105

For 105 mm wide cavities.

Kingspan Kooltherm Cavity Closer 110

For 110 mm wide cavities.

Kingspan Kooltherm Cavity Closer 115

For 115 mm wide cavities.

Kingspan Kooltherm Cavity Closer 120

For 120 mm wide cavities.

Kingspan Kooltherm Cavity Closer 125

For 125 mm wide cavities.

Kingspan Kooltherm Cavity Closer 130

For 130 mm wide cavities.

Kingspan Kooltherm Cavity Closer 135

For 135 mm wide cavities.

Kingspan Kooltherm Cavity Closer 140

For 140 mm wide cavities.

Kingspan Kooltherm Cavity Closer 145

For 145 mm wide cavities.

Kingspan Kooltherm Cavity Closer 150

For 150 mm wide cavities.

Kingspan Kooltherm Cavity Closer PLUS

Made to order to match specified opening sizes. Available for the same range of cavity widths as standard Kingspan Kooltherm Cavity Closer.

Accessories

None

Curved sections

Jointing clip

Jointing strip

Fixing tie

Standard product features

Casing:

PVC-U J-section.

Core:

Premium performance rigid thermoset fibre-free phenolic insulant manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP).

Thermal conductivity:

0.021 W/m·K.

Fire performance:

Details on the fire performance of Kingspan Insulation products may be obtained from the Kingspan Insulation Technical Service Department.

Responsible sourcing:

Certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) for boards produced at Kingspan Insulation’s Pembridge and Selby manufacturing facilities.

Kingspan Kooltherm Cavity Closer insulation strips achieve a BRE 2008 Green Guide Summary Rating of A.

Product Options

Accessories:

  • Curved sections: Comprise sections that are factory fabricated to suit any specified radius for specified radius for bullseye windows, curved heads, etc.
  • Fixing tie: Moulded PVC-U, white in colour, useful for wider cavities or in using sections to form openings, designed with different angled ends which slot securely between the tees at the ‘back’ of the section and keys fully into the mortar bed joint of the outer masonry leaf.
  • Jointing clip: Blue in colour, it connects two sections back-to-back along their length to suit cavities widths greater than for use in cavities greater than 150 mm wide.
  • Jointing strip: Grey in colour, it connects two abutting sections along their cross-sectional plane. It allows for opening sizes greater than 2.4 m and the reduction of wastage through the use of off-cuts. Limited to one butt joint per side of the opening.
