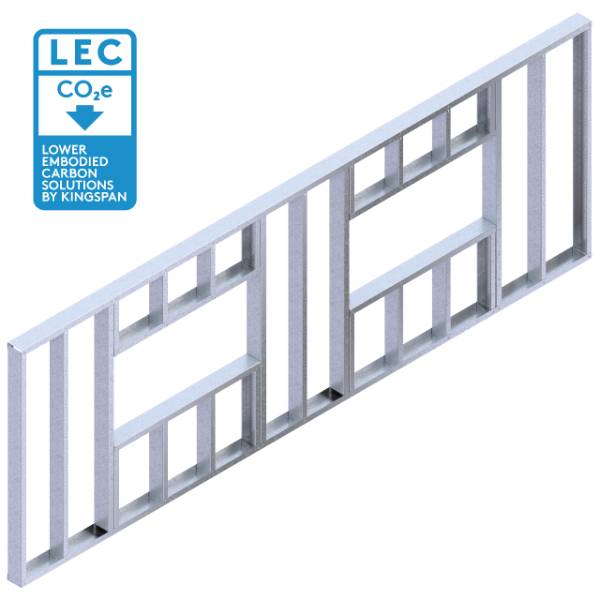

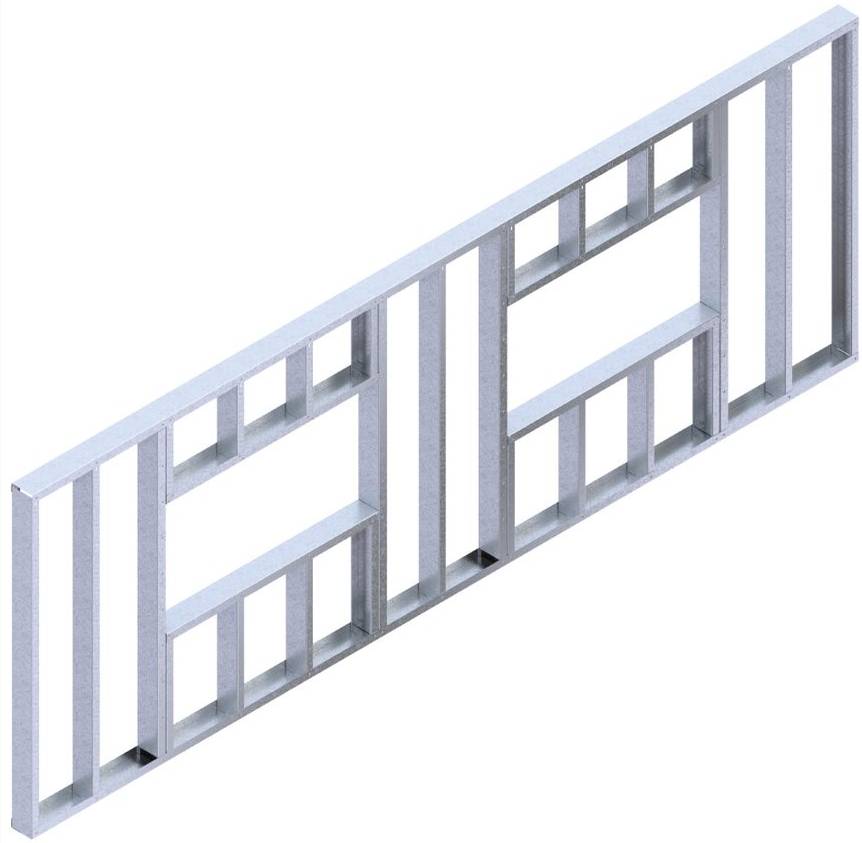

Kingframe Steel Frame System SFS

Infill systems:

Typically supported at the slab edge between hot-rolled steel or concrete primary support frame. The secondary SFS frameworks are typically assembled as kit form on site or, for more rapid installation, the SFS frameworks as part of Modern Methods of Construction (MMC) may be provided as a pre-panelised solution that is factory-assembled off-site. Such pre-assembled panels may be supplied in either small or large format depending on individual project requirements. The SFS framework allows insulation and external finishes to be installed outside the main structural frame if the correct tolerance scheme is adopted. The system is suitable for both low and high-rise construction. A deflection allowance is required at each floor level. Kingframe infill systems are BBA approved.

Oversail systems:

Fitted outside the line of the structural frame using support cleats at each floor level with connections designed to allow slab deflection. It is particularly suited to situations where cladding materials are sensitive to differing movement of the main frame. Adequate base support must be provided to accommodate vertical loading. Kingframe oversail systems are BBA approved.

Load bearing systems:

The SFS studs are designed to provide primary support for vertical (axial) compressive loads from the roof and floors of the building. No deflection detail is incorporated.

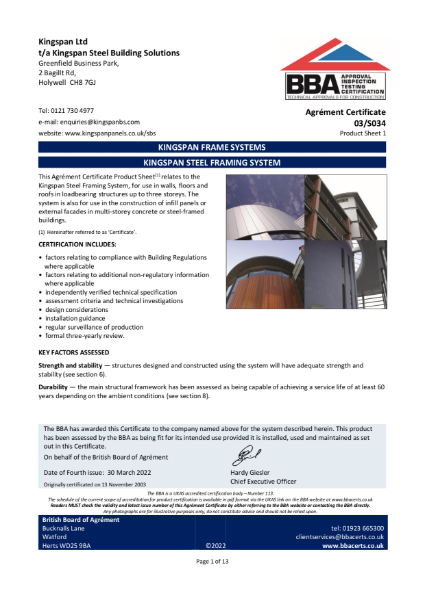

System typically incorporates SFS floor joists at coincident positions to stud set out to robustly tie all the floors, roof and walls together forming the structure. Kingframe load bearing systems are BBA approved up to three storeys.
