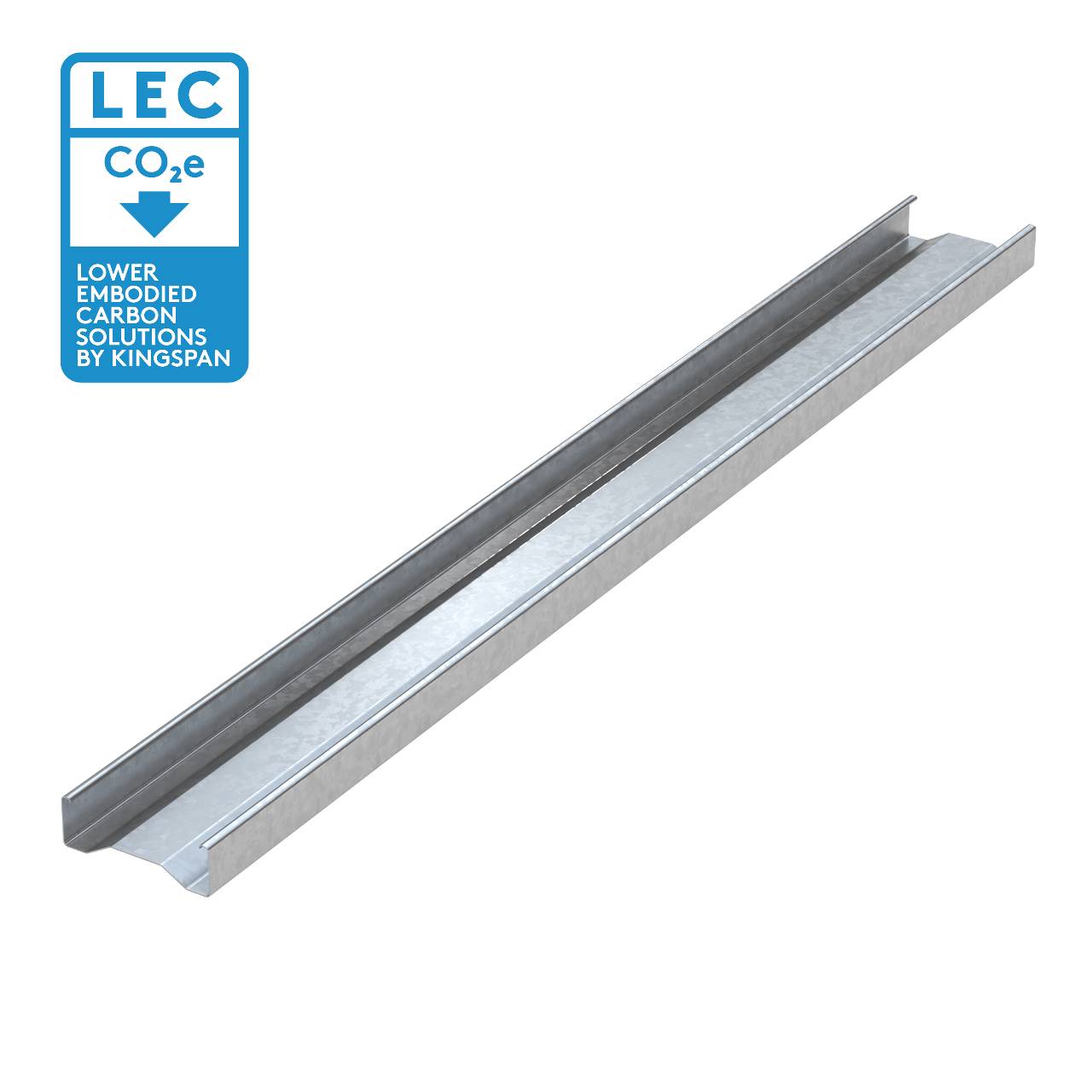

Multibeam LEC Purlin
Verified by manufacturer 1 month ago
A range of purlins that are suitable for all types of modern roof construction with bay sizes up to 15 m.
Application
Suitable for all types of roof cladding and for use on any roof slope.
Multibeam cladding rail systems are designed specifically to support metal-clad walls in horizontal or vertical orientation.
Description
Multibeam LEC Purlin is part of Kingspan Insulated Panels Lower Embodied Carbon solutions.
Multibeam LEC Purlin has an LCA (LifeCycle Assessment) that shows a 66% reduction in embodied carbon (measured by the Global Warming Potential ‘GWP’ kgCO2e) between life cycle modules A1–A3, and a 63% reduction in embodied carbon between life cycle modules A–C.
The reduction percentage is created by comparing standard Multibeam with Multibeam LEC to the EN 15804, A2 standard.
Features and benefits:
- Bay widths up to 15 m.
- 95 mm flange width available to suit roof sheeting requirements.
- Our Multicleats are available to suit most sheeting line requirements.
- Suitable for all roof types.
General information
Finish | Galvanized |
Material | Steel |
Shape | Other |
Length | Bespoke Guidance for specification option: Spans up to 15 metres. |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | G10/170 Cold-formed galvanized steel G10/30 Cold-formed galvanized steel |
Specification data - Cold-formed galvanized steel sections
Primary components | Purlins. |
Material | |
Thickness | Manufacturer guidance95 mm flange width available. Consult manufacturer for details. |
Coating finish | Galvanized steel. |
Standards | To EN 15804+A2:2019 and ISO 14025/ ISO 21930. |
Span | 15 m (maximum). Guidance for specification option: Up to 15 m, insert requirement and consult manufacturer. |
Section | 145 x 65 mm section. |
Dimensions | Guidance for specification option: Consult manufacturer and insert requirements. |
Sustainability data
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 836 kg CO₂ eq/m² Self declared |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 75 % |
