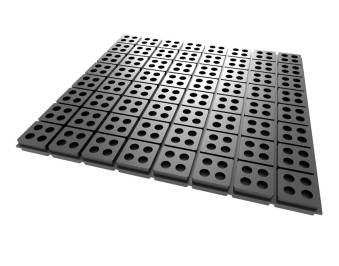

Kinetics RSP Elastomeric Isolators
Verified by manufacturer 22 hours ago
EPDM elastomer pads designed for vibration isolation with 55 durometer hardness and oil and water resistance.
Application
Kinetics RSP elastomer in-shear isolation pads are suitable for the isolation of noise, shock, and high frequency vibration produced by mechanical, industrial, or process equipment located on grade, structural slab, or in other noncritical areas.
Description
Kinetics RSP pads are produced from a EPDM elastomer. Pads are 55 durometer and are designed for a maximum of 5.97 kg/cm² loading. Pads are designed for a maximum deflection of approximately twenty per cent of its unloaded thickness, 0.38 cm. The elastomer is oil and water resistant, offers a long life expectancy consistent with EPDM compounds, and has been designed to operate within the safe stress limits of the material. Pads are elastomer in-shear and using 175 kg/cm² minimum tensile strength, oil resistant EPDM compounds with no color additives.
Features and benefits:
- 55 durometer EPDM pads.
- Designed for maximum 5.97 kg/cm².
- 457 x 457 x 19 mm with 51 x 51 mm scores.
- Can be cut-to-fit as needed.
- Oil, water and corrosion resistant.
General information
Color | Black |
Finish | Matt |
Material | EPDM |
Shape | Square |
Length | 457 mm |
Width | 457 mm |
Height | 19 mm |
Uniclass | |
CAWS | P10/500 Anti-vibration mats or pads |
Specification data - Pad mountings
Classification data | |
Material | EPDM. |
Size | 457 x 457 mm. Cut to size. |
Thickness | 19 mm. |
Static load range | 5.97 kg/cm² (maximum). |
TensileStrength | 175 kg/cm² (minimum). |
Sustainability data
Material | EPDM |
Literature
Kinetics RSP Elastomeric Isolators - TDS
