CMSDA Raised Access Floor - Isolation Pad System - Isolation Pads
Verified by manufacturer 13 days ago
Isolation pads for raised access flooring pedestals.
Application
- Suitable for reducing the transmitted impact noise in raised access flooring systems.
- Can be adhesively fixed to concrete subfloors, or screw/ bolt fixed to timber subfloors.
Description

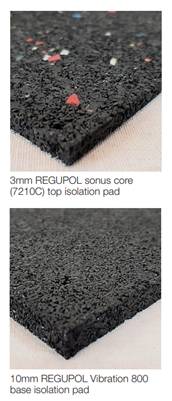

10 mm REGUPOL Vibration series isolation pads for raised access flooring pedestals provide a high level of impact isolation by decoupling the pedestal from the subfloor yet still allowing a high integrity fixing. 3 mm REGUPOL sonus core (7210C) top pads for placing on the pedestal before installation of the floor panel.
Features and benefits:
- Reduces impact noise transmission.
- Minimal deflection, allows floor to pass stability testing.
- Easily bonded in position.
- High performance levels.
General information
Color | Black |
Finish | Smooth |
Material | Rubber Polyurethane (PUR) |
Shape | Square |
Length | 100 mm 125 mm 150 mm 75 mm |
Width | 100 mm 125 mm 150 mm 75 mm |
Height | 10 mm 3 mm |
Warranty description | One year Other |
Uniclass |
Specification data - Pad mountings
Classification data | |
Material | Composite synthetic rubber. |
Size | REGUPOL Vibration 800: 100 x 100 mm; REGUPOL sonus core (7210C): 75 x 75 mm. REGUPOL Vibration 800: 125 x 125 mm; REGUPOL sonus core (7210C): 75 x 75 mm. REGUPOL Vibration 800: 150 x 150 mm; REGUPOL sonus core (7210C): 75 x 75 mm. |
Thickness | REGUPOL Vibration 800: 10 mm; REGUPOL sonus core (7210C): 3 mm. |
Static load range | REGUPOL Vibration 800: 0.800 N/mm². Manufacturer guidanceMaximum static load bearing capacity. |
Impact sound reduction | 30 dB ΔLW (combined). Guidance for specification option: REGUPOL Vibration 800 - Base Pad: 28 dB ΔLW. REGUPOL sonus core (7210C) - Upper Pad: 19 dB ΔLW. Manufacturer guidanceThe combined calculated impact noise reduction for both pads. |
Sound insulation | REGUPOL sonus core (7210C): Airborne (DnT,w + Ctr): 49 dB (mean average); Impact (L’nT,w (Ci)): 50 dB. |
Sustainability data
Material | Rubber Polyurethane (PUR) |
Literature
CMS Danskin Acoustics Raised Access Floor Isolation Pads - TDS issue 4 03 2024
