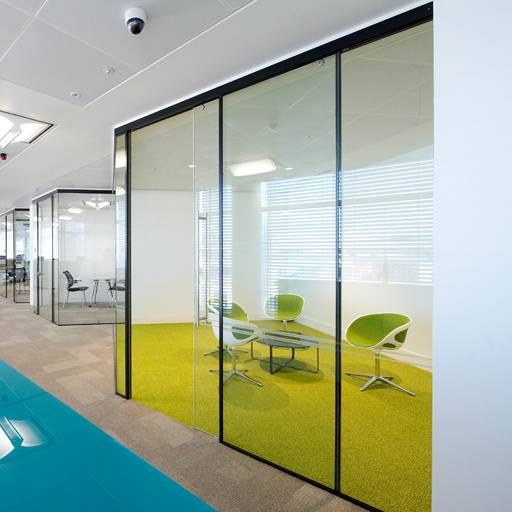

Kinetic Seal Frameless Glass Sliding Door and Partition

Name: Kinetic Seal Frameless Glass Sliding Door and Partition
Brand: Optima
SKU: cZZnvvej5KrFNmm3oLYXbJ

Verified by manufacturer 1 day ago

Optima

Frameless sliding door leaf with a slam post and a vertical channel at the trailing edge of the door.

Jump to:

+44 (0)1494 492725 Website

Application

Suitable for applications in:

Office and workplace buildings.
Retail.
Airports.
Universities and education centres.
Modern residential developments.
Commercial sector environments.

Description

A frameless sliding door leaf with a slam post and a vertical channel at the trailing edge of the door; each incorporating acoustic seals for an enhanced acoustic performance.

Features and benefits:

It consists of a 10 mm heat-soaked toughened glass leaf acting on carriages within a robust head track.
For use in conjunction with Kinetic partition system.
Integrates flawlessly with Optima 117 Plus single and double glazed systems.

General information

Color	White Silver Other
Finish	Anodized Grained Polished Powder-coated
Material	Glass Aluminium
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: See Warranty Policy literature for more information.

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary Pr_25_71_57_60 Partition panels
CAWS	L20/520 Sliding doors L20/65 Sliding pocket doors

Product range	Sliding Doorsets

Specification data - Sliding door and partition sets

Classification data
Third party accreditation	BM Trada certified.
Performance	Acoustic.
Arrangement	Vertical channel at the trailing edge of the door.
Track system	Acting on carriages within a robust head track.
Door leaves	-
Construction	Laminate single-glazed partition.
Hardware	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Accessories	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Finish/ Colour	Anodized. Guidance for specification option: 25 microns thickness. Grained. Polished. Powder-coated, RAL. Guidance for specification option: Insert requirement, contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal).
Deflection head	Not required. Required.
Manifestation	Guidance for specification option: Insert requirements.
Locking	Manufacturer's standard. Guidance for specification option: Patch hook bolt lock and Euro-profile cylinder and turn. Non locking. Special order. Guidance for specification option: Insert requirements; contact manufacturer for more information.
Handles	Pull handles in satin finish. Special order. Guidance for specification option: Insert requirements; contact manufacturer for more information.
Glazing	10 mm heat-soaked toughened glass (to BS EN 14179).
AcousticRating	24 dB. Guidance for specification option: (in conjunction with 12.8 mm acoustic laminate single-glazed partition). Manufacturer guidance (Rw, maximum):
Overall size	Guidance for specification option: Available up to 3000 mm in height. Leaf width only: 1030 mm. Overall frame size: 1050 mm.
Configuration	As schedule. As drawing.

Sustainability data

Material	Glass Aluminium
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 2.39 (kg CO₂ eq/kg) Declared unit : 2.39 Value guidance: A1-A3 See Environmental Product Declaration literature for detailed LCA data.
