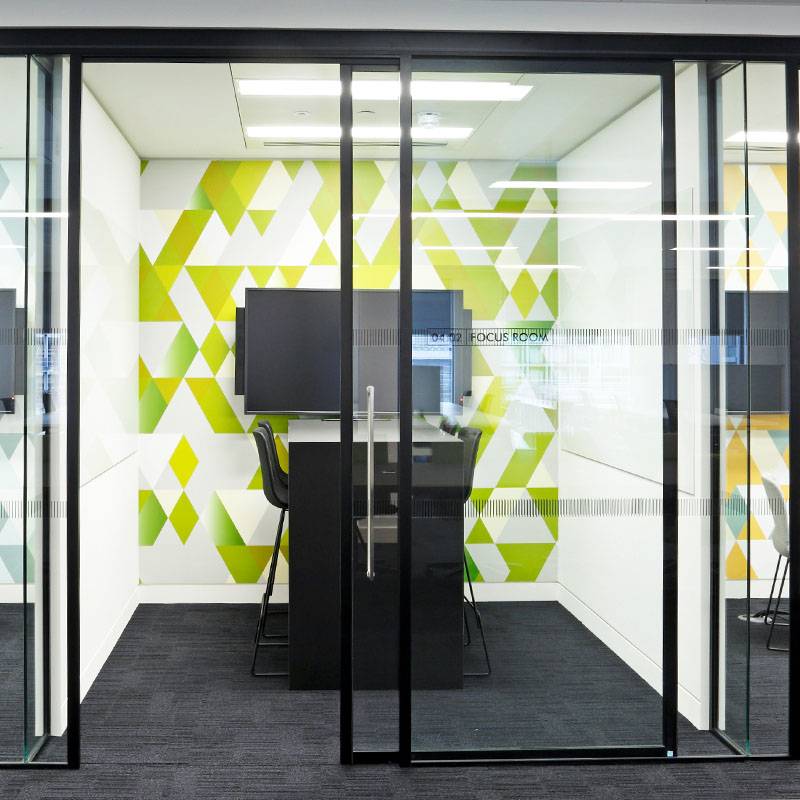

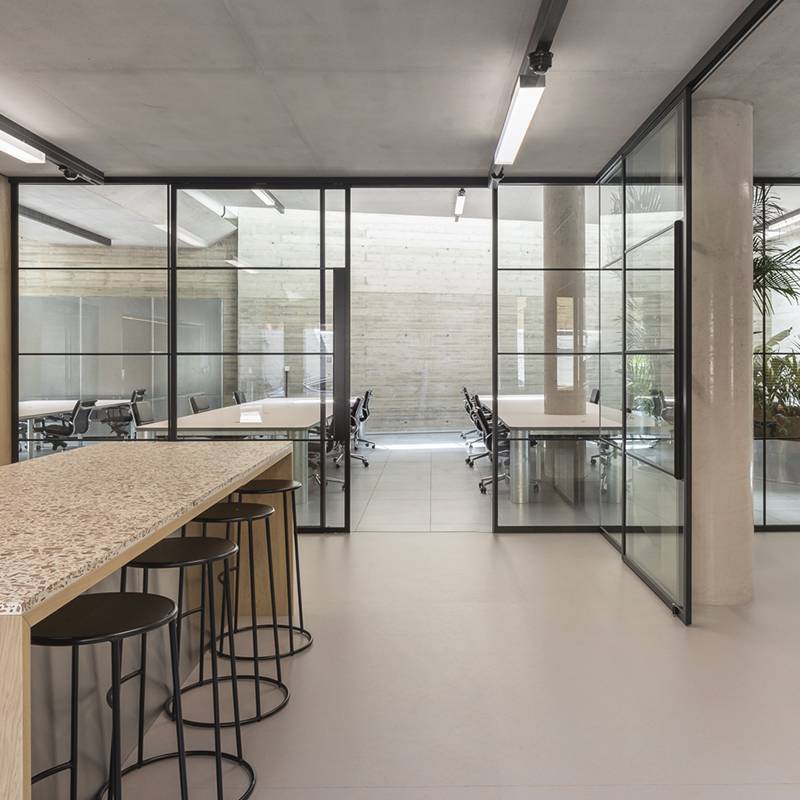

Kinetic Align Single Glazed Sliding Framed Door with Single Glazed Partition

Name: Kinetic Align Single Glazed Sliding Framed Door with Single Glazed Partition
Brand: Optima
SKU: V1kVXFxS7un843EQj54P

Verified by manufacturer 1 day ago

Optima

Fully framed sliding glass door with a 12mm toughened door leaf and acoustic seals providing up to Rw36dB of acoustic resistance.

Jump to:

+44 (0)1494 492725 Website

Application

Designed for use in conjunction with Kinetic partition system.

Suitable for applications in:

Office and workplace buildings.
Retail.
Airports.
Universities and education centres.
Modern residential developments.
Commercial sector environments.

Description

A classic, fully framed sliding door consisting of a 12 mm toughened door leaf.

Features and benefits:

Provides up to Rw36dB of acoustic resistance.
Aluminium frame, available in a range of finishing options.
Acoustic seals on all the edges for maximized acoustic performance.
Discrete continuous floor guide for optimized running alignment.
Optional lockable pull handles.
Screen-mounted mortised hook bolt lock, Euro-profile cylinder and turn.
Integrates with Optima 117 Plus single glazed systems.
Customisable to project requirements.

General information

Color	White Silver Other
Finish	Anodized Glazed Grained Laminated Polished Powder-coated Show more
Material	Glass Aluminium
Shape	Rectangle
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: This excludes installation, moving parts, ironmongery and fire rated glass which are covered elsewhere (see Optima policy document for more information).

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary Pr_25_71_57_60 Partition panels
CAWS	L20/520 Sliding doors L20/65 Sliding pocket doors

Product range	Sliding Doorsets

Specification data - Sliding door and partition sets

Classification data
Third party accreditation	To BS EN 14179.
Performance	Sound-resistant. Guidance for specification option: Acoustic rating (Rw, maximum): 36 dB (in conjunction with 12.8 mm acoustic laminate single-glazed partition).
Arrangement	As drawing. Guidance for specification option: Insert drawing reference number. As schedule.
Track system	Manufacturer's standard. Guidance for specification option: Aluminium sliding door head channel incorporating single glazed screen 50 x 67 mm. 25 mm aluminium base channel for fixed single glazed screen.
Door leaves	-
Construction	Manufacturer's standard. Guidance for specification option: 12 mm heat-soaked toughened glass, acoustic laminate 12.8 mm thick screen, aluminium framework.
Finish and colour	Single glazed.
Operation	Manual.
Hardware	Guidance for specification option: Insert requirements; contact manufacturer for more information.
Accessories	Not required. Stainless steel satin finish pull handles. Guidance for specification option: Insert diameter, length and style. Special order. Guidance for specification option: Insert requirements; contact manufacturer for more information.
Size	Guidance for specification option: Available up to 3000 mm in height. Leaf width is 1200 mm. Overall frame size is 1196 mm. Insert requirements or drawing reference number.
Frame finish	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated. Guidance for specification option: Insert requirements; contact manufacturer for more information.
External	Not required. Colour, RAL. Guidance for specification option: Insert requirements; contact manufacturer for more information. Colour, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Colour, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal). Manufacturer guidance Powder-coated:
Internal	Not required. As external. Colour, RAL. Guidance for specification option: Insert requirements; contact manufacturer for more information. Colour, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Colour, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal). Manufacturer guidance Powder-coated:
Manifestation	Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for more information.
Deflection head	Not required. Required. Guidance for specification option: Insert requirements; see Kinetic Series product literature or contact manufacturer for more information. Manufacturer guidance Options: 2-part deflection heads: ± 25 mm – 94 mm deep aluminium channel.
Locking	Manufacturer's standard. Guidance for specification option: Screen-mounted mortised hook bolt lock and Euro-profile cylinder with turn. Non-locking. Special order. Guidance for specification option: Insert requirements; contact manufacturer for more information.
