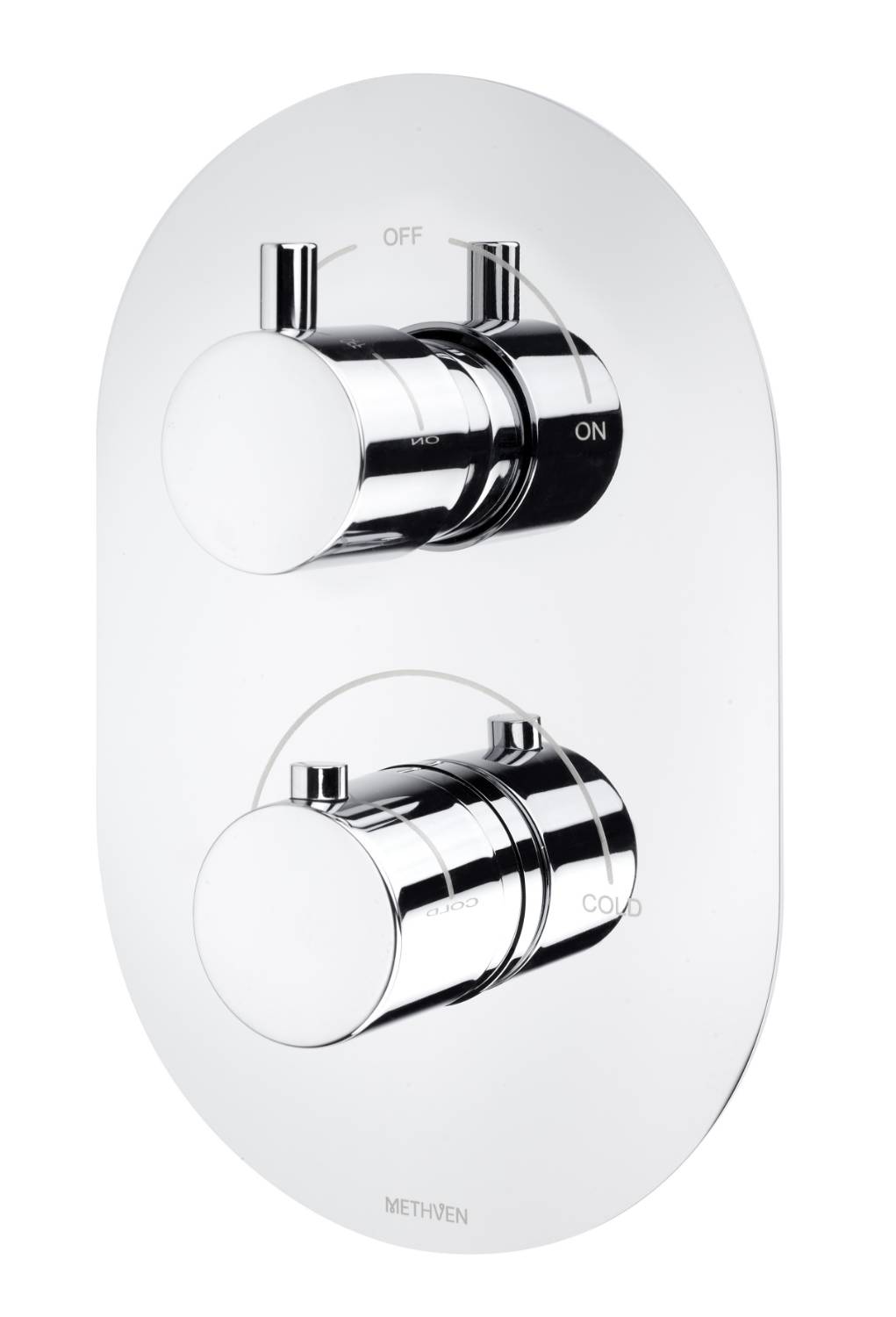

Kaha Concealed Mixer Valve (2 Outlets) - Brass Plate
KAHA 2D
Concealed thermostatic shower mixer.
Application
Suitable for all plumbing systems.
Description
Concealed thermostatic shower mixer.
Features and benefits:
- Diverter cartridge to two outlets.
- 38°C temperature hot stop with override facility.
- Brass concealing plate.
- Front access filters - no need to disconnect shower from water supply during maintenance.
- Concealed shower spindle extension available.
- Can be purchased as separate Valve and Trims - VALVE 2D & TR KAHA 2D.
- Available in a range of metallic finishes.
General information
Color | Silver Black Bronze Grey |
Finish | Chrome Matt Brushed |
Material | Brass |
Shape | Oval |
Size | 210 x 140 mm |
WarrantyDescription | Five years |
Uniclass 2015 | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower thermostatic valves Enhanced data
Approvals | Water Regulations Advisory Scheme (WRAS)-approved; Certified to NSF, TMV. |
Form | Concealed wall-mounted thermostatic shower mixer valve. |
Materials | - |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 34.2 L/ min at 3 bar. |
Water supply temperature (maximum) | 38°C.38°C temperature hot stop with override facility. |
InletConnectionSize | ½” BSP. |
WorkingPressure | 0.2–5.0 bar. |
Operation | Separate flow and temperature controls. |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | - | 1 | 2.1 |
 IFC | - | 1 | 2.1 |
