KABSEAL PRO - Airtight Grommet

Verified by manufacturer today

KABSEAL PRO 4–8

PARTEL Variant:
Third party certifications:
  • Passive House Institute - Certificate

    Passive House Institute - Certificate

    Certificate type

An airtight flexible sealing grommet for cables and pipes.

Jump to:
+44 20 3740 1918 Website

Application

Suitable for:

  • Internal and external use.
  • Partel membranes, vapour control layers and breathable membranes.
  • Sealing cables, conduits, pipes, and ventilation cross-sections in the building envelope.
  • Airtight sealing according to Part L & DIN 4108-7, featuring excellent outdoor exposure.
  • Airtight and thermal-bridge-free electrical installation in accordance with DIN 18015-5.


Description

KABSEAL PRO is a high-performance airtight flexible sealing grommet for cables and pipes, designed for various applications in the building envelope.


Features and benefits:

  • Made of permanently flexible rubber, which can be used in a wide temperature range.
  • Strain-relieving function.
  • Flexible - offsets structural movement.
  • Excellent adhesion, withstands a damp climate.
  • Accurate, and permanent sealing of penetrations
  • Highly tear-resistant.
  • Strong acrylic adhesive with excellent ageing resistance.
  • Split release liner for quick installation.
  • Solvent-free component.
  • Halogen free.
  • Very low emission.

General information

Color

Black

Guidance for specification option:

Grommet.

White

Guidance for specification option:

Adhesive sleeve.

Material

EPDM

High density polyethylene (HDPE)

Guidance for specification option:

Adhesive sleeve.

Shape

Circle

Square

Length

150 mm

230 mm

320 mm

350 mm

400 mm

Width

150 mm

230 mm

320 mm

350 mm

400 mm

Uniclass

Pr_65_52_61_64 Pipe sleeve sealsPrimary

CAWS

P31/40 Sealing around services

P31/710 Sealing

J42/480 Pipe collars

J41/480 Pipe collars

Specification data - Pipe sleeve seals

Materials

-

Body

EPDM rubber.

Guidance for specification option:

Grommet.

Seal

Special HDPE film reinforced with elasticity.

Guidance for specification option:

Adhesive sleeve.


Acrylic water-resistant adhesive.

  • Adhesive force > 25N/ 25 mm.
  • Tensile strength > 50N/ 25 mm.

Size

4–8 mm.

Certification

Certified Passive House.

Density

To DIN ISO 1183-1, 1.15 g/cm³.

TensileStrength

To DIN ISO 37, 11.6 MPa.

VOC emissions

A+.

Guidance for specification option:

GEV Emicode, EC1 plus.

Colour

Black.

Seal colour

White.

Seal size

150 x 150 mm.

Application temperature range

-30°C to 100°C.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

EPDM

High density polyethylene (HDPE)

Guidance for specification option:

Adhesive sleeve.

Expected Life

Lifetime

Third party certifications

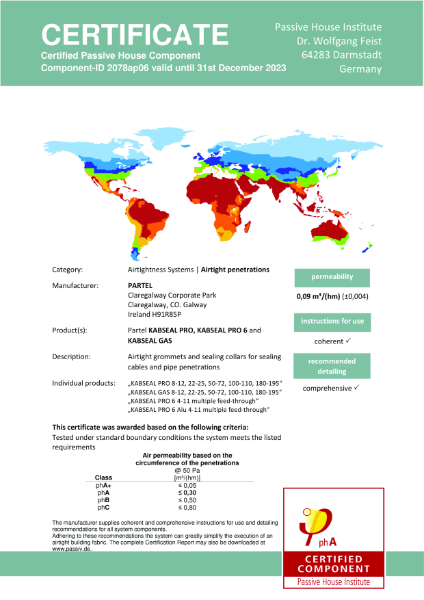

Passive House Institute - Certificate

Passive House Institute - Certificate

phA Certificate Partel KABSEAL

Literature

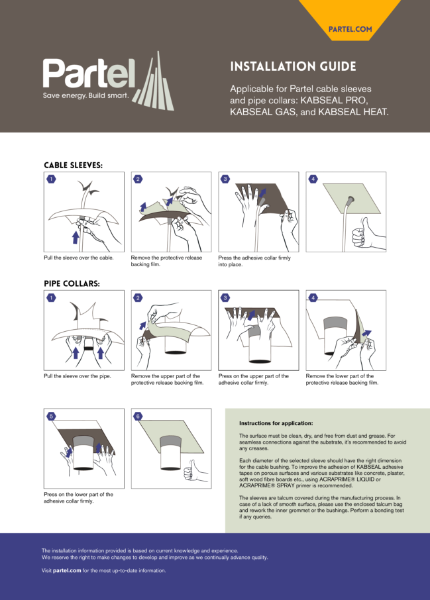

KABSEAL PRO-GAS-HEAT

KABSEAL PRO-GAS-HEAT

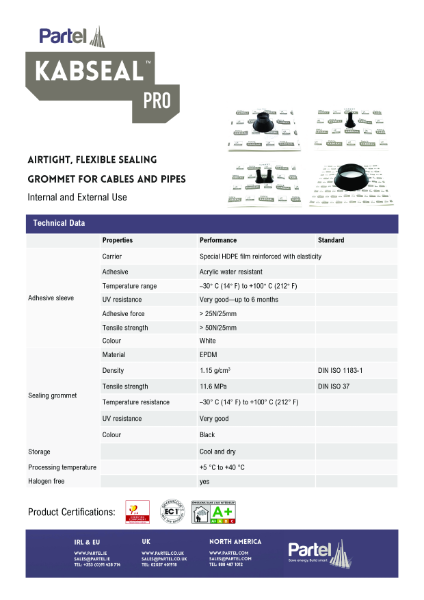

KABSEAL PRO
