KABSEAL PRO 6 - Multi-Cables Airtight Grommet
Verified by manufacturer 4 days ago
KABSEAL PRO 6 4–11
KABSEAL PRO 6 4–11
Passive House Institute - Certificate
Certificate type

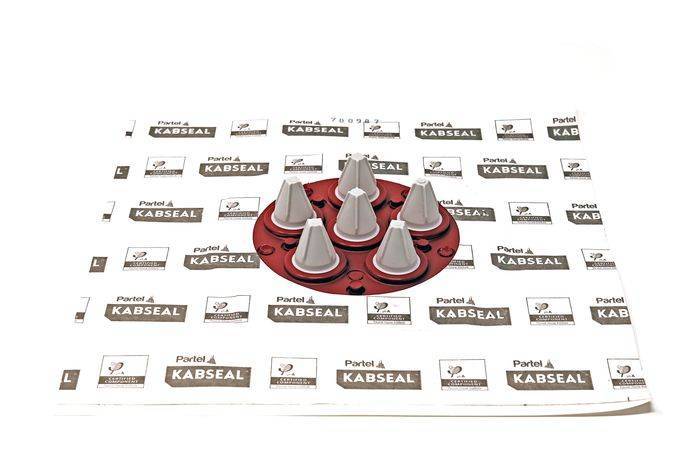

An airtight sealing grommet for multi-cables.
Application
Suitable for:
- Internal and external use.
- Variety of Partel products, including vapor control layers and breathable membranes.
- Sealing of up to six penetrations, cables, or empty conduits through the airtight layer.
- Airtight sealing in accordance with Part L & DIN 4108-7.
- Airtight and thermal-bridge-free electrical.
- Installations in compliance with DIN 18015-5.
Description
KABSEAL PRO 6 is a versatile airtight sealing grommet designed for multi-cable penetrations, capable of withstanding moist environments, making it suitable for quickly and permanently, sealing openings in building covers.
Features and benefits:
- Made of permanently flexible rubber, which can be used in a wide temperature range.
- Strain-relieving function.
- Flexible conical grommet - offsets structural movement.
- Excellent adhesion that permanently withstands a damp climate.
- Accurate, and permanent sealing of penetrations.
- Highly tear-resistant.
- Strong acrylic adhesive with excellent ageing resistance.
- Split release liner for quick installation.
- Solvent-free component.
General information
Color | Grey Guidance for specification option: Conical grommet. White Guidance for specification option: Adhesive sleeve. |
Material | Thermoplastic elastomer (TPE) Styrene Polypropylene Plastic High density polyethylene (HDPE) Guidance for specification option: Adhesive sleeve. |
Shape | Circle Square |
Length | 230 mm 320 mm |
Width | 230 mm 320 mm |
Uniclass | |
CAWS | J42/480 Pipe collars P31/710 Sealing P31/40 Sealing around services J41/480 Pipe collars |
Specification data - Pipe sleeve seals
Materials | |
Body | Thermal Plastic Styrene, SEBS (Styrene-Ethylene-Butylene-Styrene) and Polypropylene.Guidance for specification option: Conical grommet. |
Seal | Special HDPE film reinforced with elasticity.Guidance for specification option: Adhesive sleeve. Acrylic water-resistant adhesive.
|
Size | 6 x 4–11 mm. |
Certification | Certified Passive House. |
Density | To DIN ISO 1183-1, 1.05 g/cm³. |
Elongation at break | To ISO 180/1A, 11 kJ/m². |
TensileStrength | To DIN 53504, 3 N/mm². |
VOC emissions | A+. |
Colour | Grey. |
Seal colour | White. |
Seal size | 230 x 230 mm. |
Application temperature range | -30°C to 100°C. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Thermoplastic elastomer (TPE) Styrene Polypropylene Plastic High density polyethylene (HDPE) Guidance for specification option: Adhesive sleeve. |
Expected Life | Lifetime |
Third party certifications

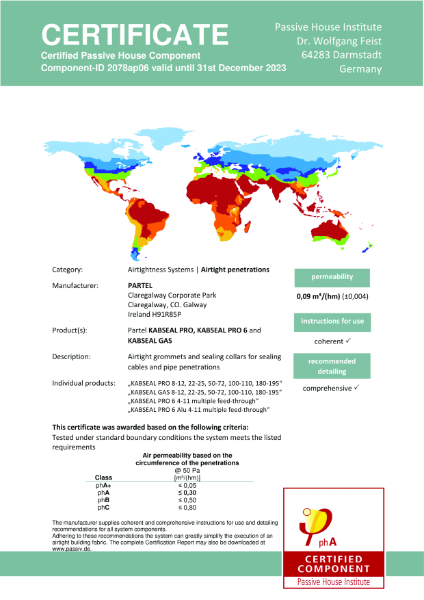

Passive House Institute - Certificate
phA Certificate Partel KABSEAL
Literature

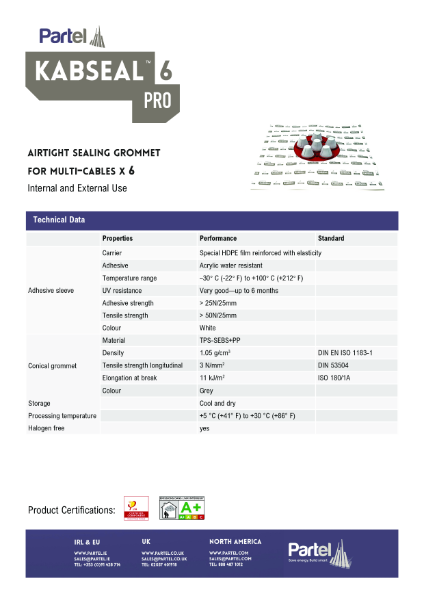

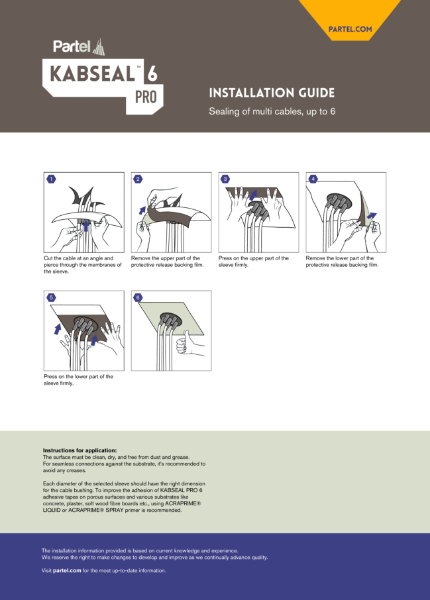

KABSEAL PRO 6
KABSEAL PRO 6 - final digital
