Application

Suitable for use in:

  • Civic and public sector.
  • Schools and educational establishments.
  • Leisure and sports environments.

Description

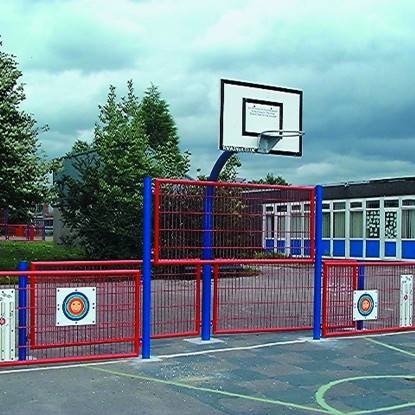

Goal sporting equipment, designed to suit the needs of junior players and the coaches, teachers and parents that are supervising them.


Features and benefits:

  • Simple design.
  • Features a realistic goal mouth, and has a ball stop panel which prevents risk of injury to players behind the goal.
  • Open-sided, meaning that children can easily pass in and out of the goal area without getting trapped - which minimizes the chance of bullying.
  • A basketball unit and targets for cricket and football practice can be added.
  • Cost effective and economical.
  • Aesthetically pleasing and colourful.
  • High ball retention.
  • Low maintenance.
  • RoSPA compliant.
  • 1200 mm goal height (other heights are available).
  • 3023 mm goal width (other widths are available).

General information

Finish

Galvanized

Powder-coated

Material

Metal

Size

4500 x 2510 mm

Uniclass

Pr_40_30_84_31 Football goalsPrimary

CAWS

Q52/580 Goals

Specification data - Football goals

Standard

To BS1722, ISO 12944.

Posts

-

Dimensions

60 x 60 mm.

Guidance for specification option:

Centres at 2525 mm.

80 x 40 mm.

Guidance for specification option:

Centres at 2525 mm.

100 x 50 mm.

Guidance for specification option:

Centres at 2525 mm.

120 x 60 mm.

Guidance for specification option:

Centres at 2525 mm.

Manufacturer guidance

Dependant on height.

Net

-

Mesh

66.6 x 50 mm.

Guidance for specification option:

Lower.

200 x 50 mm.

Guidance for specification option:

Above.

Manufacturer guidance

Full height rebound available on request.

Accessories

Not required.

Targets.

Basketball unit.

Height

Up to 4500 mm.

Manufacturer guidance

Fence heights above 3m are made using 2 or more panels.

Width

2510 mm.

Bar centres:

87 mm.

Bar diameter

27 mm.

WireDiameter

5 mm / 2 x 6 mm.

Guidance for specification option:

Duo Sports 6 - Vertical x Horizontal.

6 mm / 2 x 8 mm.

Guidance for specification option:

Super rebound 6 - Vertical x Horizontal.

Fixings

Anti tamper security fixings.

Literature

Zaun Systems Brochure

Zaun Systems Brochure
