JD-AL H-20 Floor Access Doors with Drainage (DOUBLE LEAF)
Verified by manufacturer 3 months ago
Pit and Floor Door, Type JD-1 AL H20
Pit and Floor Door, Type JD-1 AL H20
Double leaf drainage door to withstand vehicular traffic in off-street locations.
Application
Designed to withstand heavy vehicular traffic in off-street locations, in most corrosive environments.
Description
A range of double leaf drainage doors. These units are supplied with a threaded drain coupling, fully welded to the channel frame, for connection to a dry or wet well in the field; constructed of 6.35 mm aluminium diamond pattern plate and reinforced for heavy wheel loading (11 000 kg axle load); and feature all anti-corrosion hardware, standard debris gasket and a versatile anchoring system for ease of installation.
Features and benefits:
- Constructed with corrosion resistant materials.
- Heavy-duty construction and positive latching mechanism help to prevent unauthorized access.
- Adjustable anchor tabs.
- 38 mm drain coupling welded beneath the frame.
General information
Finish | Mill |
Material | Aluminium |
Shape | Rectangle |
Length | 1220 mm 1525 mm |
Width | 760 mm 1220 mm 1525 mm 1830 mm |
Warranty description | Manufacturer guidanceManufacturer's warranty. |
Uniclass | |
CAWS | L20/60 Doors L20/630 Hatches |
Product range |
Specification data - Floor hatches
Door | |
Orientation | Horizontal. |
Material | Aluminium. |
Optional items | Cylinder lock with threaded cover plug. High security detention lock. Motorised operation. Padlock lugs welded to the exterior door surface. Recessed padlock hasps with flush hinged lid. |
Dimensions | 1220 x 760 mm. |
Sustainability data
Material | Aluminium |
Literature

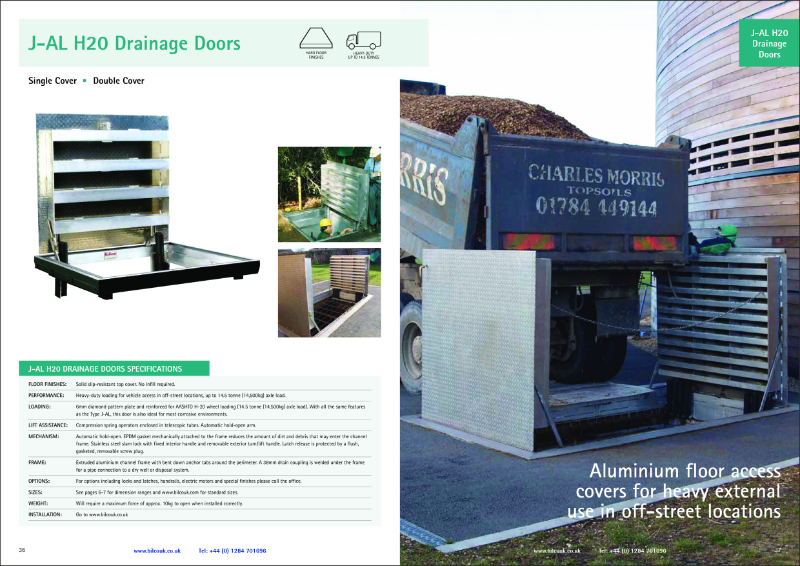

TYPE J-AL/JD-AL H-20 Floor Access Door with Drainage
