JD-AL Floor Access Doors with Drainage (DOUBLE LEAF)

Verified by manufacturer 1 month ago

Access 360

Double leaf drainage door.

Jump to:
+44 (0)1827 718222 Website

Application

Designed for use in exterior applications or in those situations where there is concern of water or other liquids entering the access opening.

Description

A range of double leaf drainage doors designed for use in exterior applications or in those situations where there is concern of water or other liquids entering the access opening. These units are supplied with a threaded drain coupling, fully welded to the channel frame, for connection to a dry or wet well in the field; constructed of 6.35 mm aluminium diamond pattern plate and reinforced for a 1464 kg/m² live load; and features all anti-corrosion hardware, standard debris gasket and a versatile anchoring system for ease of installation.


Features and benefits:

  • 38 mm drain coupling welded beneath the frame.
  • Heavy-duty construction and positive latching mechanism help to prevent unauthorized access.
  • Adjustable anchor tabs.

General information

Finish

Mill

Material

Aluminium

Shape

Rectangle

Length

760 mm

1220 mm

1525 mm

Width

1220 mm

1525 mm

1830 mm

Height

305 mm

Guidance for specification option:

Curb 305 mm in height formed with a 114 mm flange.

Warranty description

Five year

Manufacturer guidance

Manufacturer warranty.

Uniclass

Pr_30_59_36_30 Floor hatchesPrimary

CAWS

L20/60 Doors

L20/630 Hatches

Product range

Pits and Floor Doors

Specification data - Floor hatches

Door

-

Orientation

Horizontal.

Material

Aluminium.

Product Reference

Pit and Floor Door, Type JD-1 AL

Pit and Floor Door, Type JD-2 AL

Pit and Floor Door, Type JD-3 AL

Pit and Floor Door, Type JD-4 AL

Sustainability data

Material

Aluminium

Literature

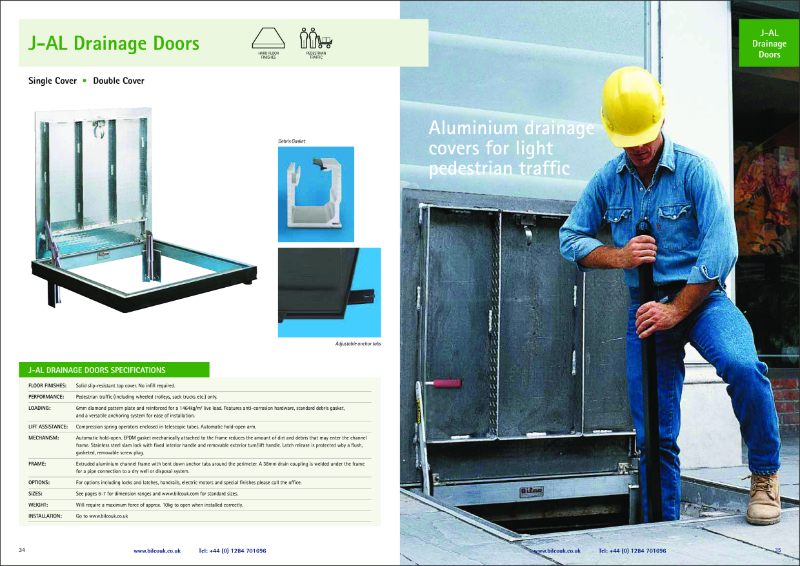

TYPE J-AL/JD-AL 300PSF Floor Access Door with Drainage

TYPE J-AL/JD-AL 300PSF Floor Access Door with Drainage
