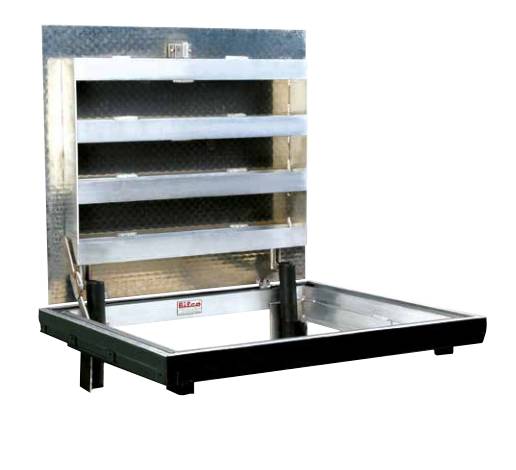

J-AL H-20 Floor Access Doors with Drainage (SINGLE LEAF)

Verified by manufacturer 1 month ago

Pit and Floor Door, Type J-1 AL

Access 360 Variant:

Single leaf drainage door to withstand vehicular traffic in off-street locations.

Jump to:
+44 (0)1827 718222 Website

Application

Designed to withstand heavy vehicular traffic in off-street locations, in most corrosive environments

Description

A range of single leaf drainage doors designed for use in exterior applications or in those situations where there is concern of water or other liquids entering the access opening. These units are supplied with a threaded drain coupling, fully welded to the channel frame, for connection to a dry or wet well in the field.


The doors are constructed of 6.35 mm aluminium diamond pattern plate and reinforced for a 1464 kg/m² live load; and features all anti-corrosion hardware, standard debris gasket and a versatile anchoring system for ease of installation.


Features and benefits:

  • 38 mm drain coupling welded beneath the frame.
  • Constructed with corrosion resistant materials.
  • Heavy-duty construction and positive latching mechanism help to prevent unauthorized access.
  • Adjustable anchor tabs.

General information

Finish

Mill

Material

Aluminium

Shape

Rectangle

Length

610 mm

760 mm

915 mm

1065 mm

Width

610 mm

760 mm

915 mm

1065 mm

Warranty description

-

Manufacturer guidance

Manufacturer's warranty.

Uniclass

Pr_30_59_36_30 Floor hatchesPrimary

CAWS

L20/60 Doors

L20/630 Hatches

Product range

Pits and Floor Doors

Specification data - Floor hatches

Door

-

Orientation

Horizontal.

Material

Aluminium, mill finish.

Accessories

None.

Cylinder lock with threaded cover plug.

High security detention lock.

Motorised operation.

Padlock lugs welded to the exterior door surface.

Recessed padlock hasps with flush hinged lid.

Stainless steel hardware.

Dimensions

610 x 610 mm.

Sustainability data

Material

Aluminium

Literature

TYPE J-AL/JD-AL H-20 Floor Access Door with Drainage

TYPE J-AL/JD-AL H-20 Floor Access Door with Drainage
