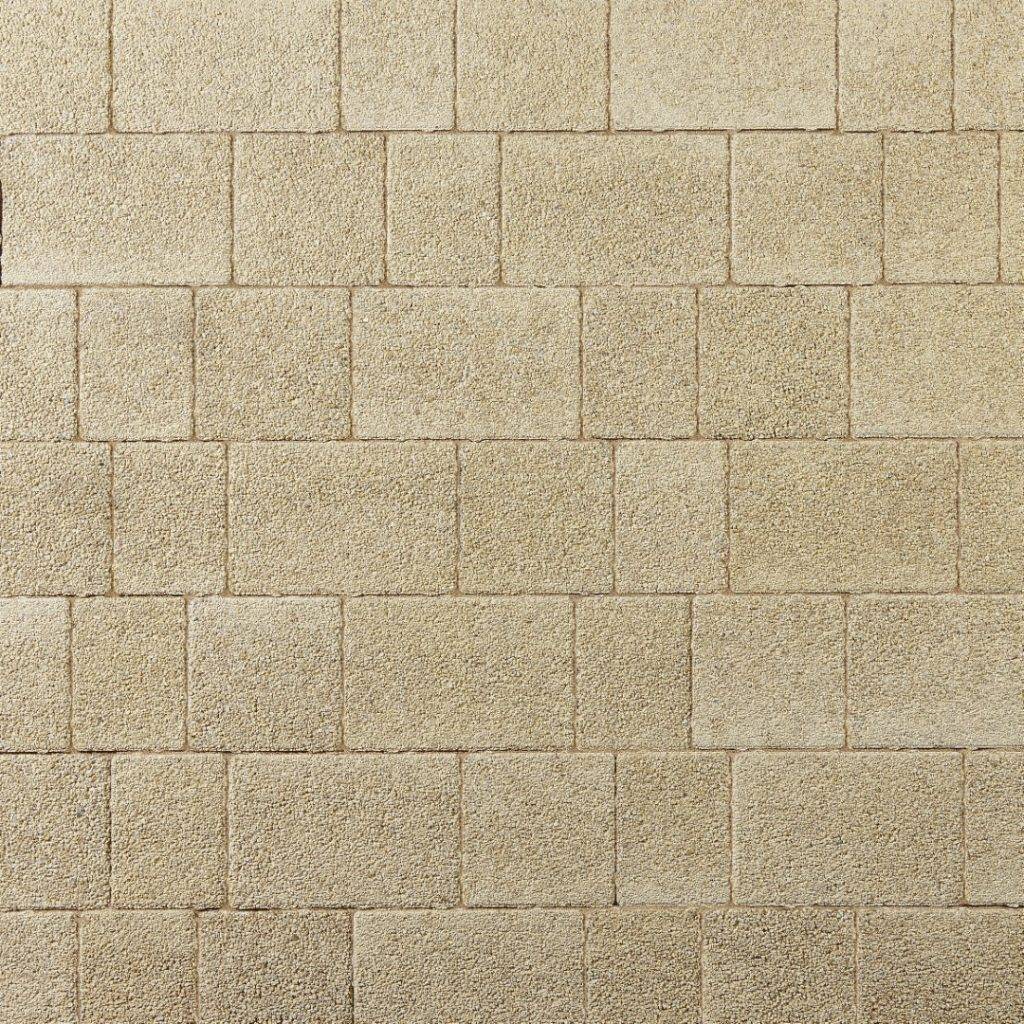

Invicta Block Paving

Verified by manufacturer 4 months ago

80 mm single size pack, 200 x 100 mm

Brett Landscaping Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

Invicta uses a unique combination of natural aggregates on the top surface to create a hard wearing, long lasting paving solution whilst offering a stunning vibrant finish with a hint of sparkle.

Jump to:
+44 (0)345 60 80 570 Website

Application

Domestic and commercial use; hardstanding for vehicular and pedestrian pavements including footpaths, cycle tracks, driveways, adoptable highways, commercial pavements, roof top and balcony applications.

Description

Invicta uses a unique combination of natural aggregates on the top surface to create a hard wearing, long lasting paving solution whilst offering a stunning vibrant finish with a hint of sparkle. Invicta is available in four complementary colours and both traditional and contemporary plan sizes, making this a versatile product suitable for most projects.


Features and benefits:

  • For domestic and commercial use.
  • Hardstanding for vehicular and pedestrian pavements.

General information

Color

Grey

Silver

Yellow

Finish

Textured

Material

Concrete

Guidance for specification option:

Precast (Agg-Tech semi-dry-pressed and vibrated).

Shape

Square

Rectangle

Length

200 mm

300 mm

Width

100 mm

200 mm

Height

80 mm

Uniclass

Pr_25_93_60_17 Concrete paving blocksPrimary

CAWS

Q24/10 Conventional concrete block paving

Q24/110 Conventional concrete block paving

Specification data - Concrete paving blocks

Standard

To BS EN 1338:2003.

Guidance for specification option:

Design standard: To BS 7533-1:2001; To BS 7533-2:2001.

Installation standard: To BS 7533-3:2005 + A1:2009.

Physical properties

-

Colour

Pearl.

Onyx.

Citrine.

Moonstone.

Finish

Textured.

Profile

-

Paver type

Regular plan form.

Arrises

Chamfered.

Dimensions and associated tolerances

-

Nominal sizes

200 x 100 x 80 mm.

Guidance for specification option:

Unit weight: 3.86 kg.

Arrises

Chamfered (textured finish).

Weathering resistance

Class 3.

Abrasion resistance

Class 3.

Guidance for specification option:

≤23 mm, determined by Wide Wheel Abrasion test.

Slip resistance

Unpolished Slip Resistance Value (USRV): ≥55; Potential for slip: Low.

Guidance for specification option:

Unpolished slip resistance value.

Reaction to fire

Class A1.

Guidance for specification option:

When used for internal flooring.

ThermalConductivity

1.2 W/m·K.

Strength

Characteristic tensile splitting strength ≥3.6 MPa; Failing load ≥250 N/mm.

Tolerances on plan dimension and thickness nominal

Thickness: ±3 mm; Plan size: ±2 mm.

Sustainability data

Third party certifications

EPD

EPD

Environmental Product Declaration - Concrete Block Paving Cliffe

ISO 9001 Quality Management

ISO 9001 Quality Management

Quality Management System Certification - BS EN ISO 9001:2015

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

Occupational Health & Safety Management System Certification - BS ISO 45001:2018

Literature

2024 Gardens & Drive Brochure

2024 Gardens & Drive Brochure

Brett Landscaping Trade Guide 2024

Brett Landscaping Trade Guide 2024

Invicta Technical Brochure

Invicta Technical Brochure

Inspiring-Paving-Kerbs

Inspiring-Paving-Kerbs

Case studies

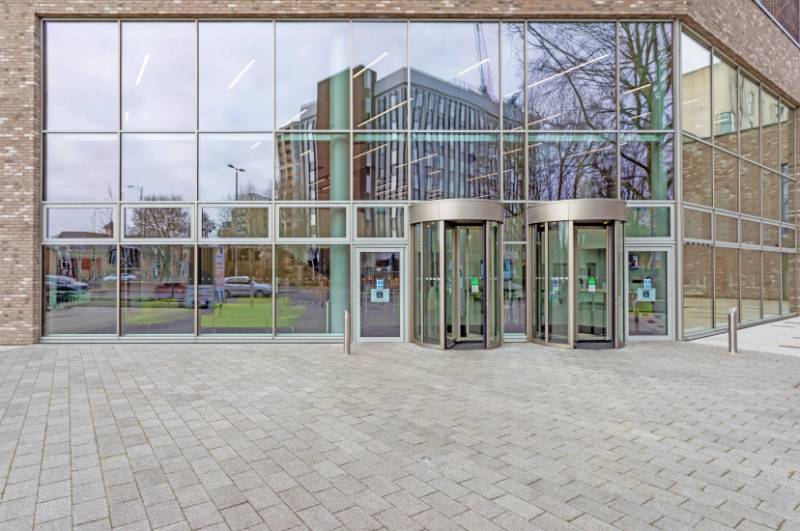

Brett Invicta Granite Paving paves Kingston Colleges £10m refurbishment

Brett Invicta Granite Paving paves Kingston Colleges £10m refurbishment

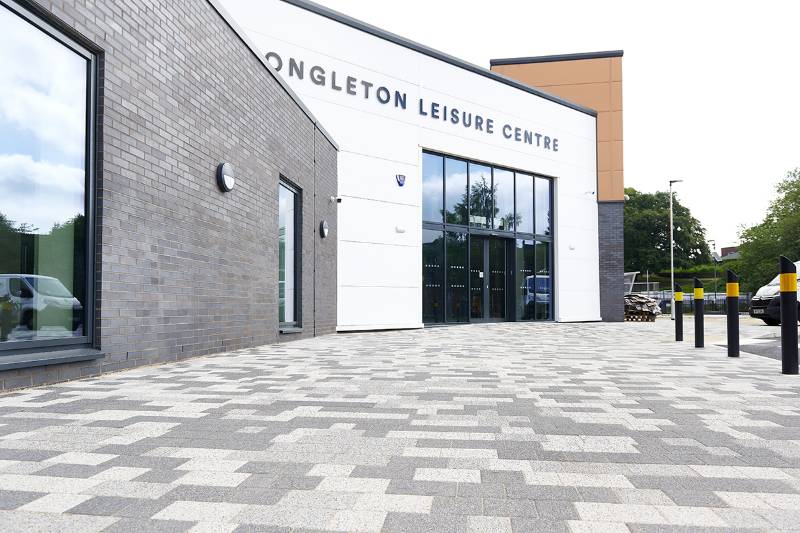

Brett Invicta is the perfect paving solution for the refurbishment of Congleton Leisure Centre.

Brett Invicta is the perfect paving solution for the refurbishment of Congleton Leisure Centre.

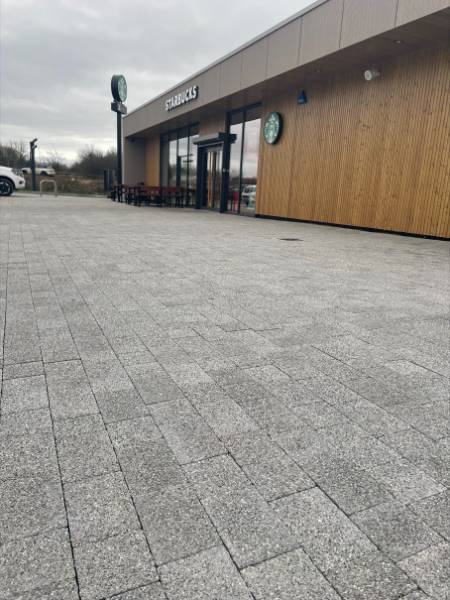

Brett Invicta paving provides a high end look to latest Starbucks drive-thru.

Brett Invicta paving provides a high end look to latest Starbucks drive-thru.

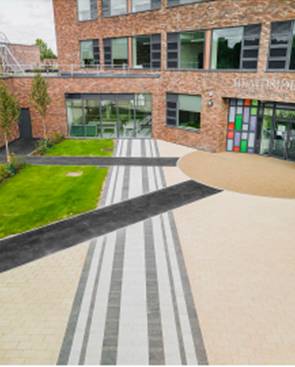

Heathfield School creates quality external communal areas using Brett's high quality Invicta Paving.

Heathfield School creates quality external communal areas using Brett's high quality Invicta Paving.

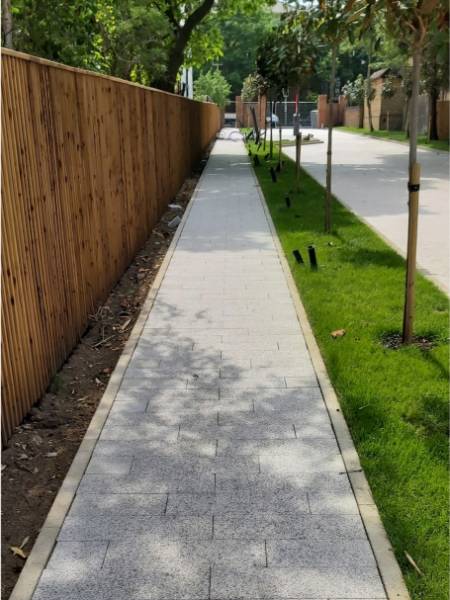

Premier League Team choose Invicta Paving for their training ground.

Premier League Team choose Invicta Paving for their training ground.
