INVI Jamb Single Rebate SRC - Single Rebate Door Jamb
Verified by manufacturer today
Fire Resistance Testing to BS 476
Certificate type
Fire Resistance Testing to BS 476
Certificate type
Single Rebated Concealed door jamb.
Application
This trimless door jamb system allows for a seamless finish that defines a new standard in modern interiors. The premium design of the INVI Jamb SRC provides a smooth transition from one side of the door jamb allowing a minimalistic sophistication in apartments, homes and commercial buildings. For use with 44 mm and 54mm doors.
Description
Give your project a clean-cut architrave free edge with the INVI Jamb® Single Rebated door frame (SRC). This one-piece frameless door jamb is made custom to perfectly suit your wall thickness for a flush finish.
Features and benefits:
- Rebated on only one side of the door stop, to allow the door to be installed flush with the side of the wall that houses the hinges.
- Wraps the plasterboard during framing to conceal fixings and incorporate the door into the wall face.
- Made from quality Zintec steel.
- Simple to install and can be painted immediately.
- Complemented by INVI Hardware® Hinges that are designed and tested to withstand heavy traffic flow.
- Available in full height or custom heights and widths.
- Recessed latchplate supplied with fixings.
- Wall thickness: 91–375 mm.
General information
Color | Silver Other |
Finish | Powder-coated Guidance for specification option: Zinc annealed |
Material | Zintec steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceWidth: Up to 1219 mm single or 2438 mm pair. |
Height | Bespoke Manufacturer guidanceHeight: Up to 3048 mm. |
Warranty description | One year |
Uniclass | |
CAWS | L20/370 Door frames |
SKU Code | SRC |
Specification data - Carbon steel door frames
Classification data | |
Fire performance | FD30. FD60. |
Configuration | Single Rebate SRC. |
Steel grade | Manufacturer's standard. |
Dimensions | |
Width and height | Manufacturer guidanceWidth: Up to 1052 mm single or 2438 mm double. Height: Up to 3048 mm. Custom sizes available upon request. Insert requirements. |
Perimeter seals or inserts | Not required. Required. |
Finish | |
Coating | Powder coating. |
Colour | Manufacturer guidanceConsult manufacturer and insert requirements. |
Installation fasteners | Screws. Guidance for specification option: Timco or equivalent 4 x 50 mm screws. Consult manufacturer for details. |
Handing | Left hand reverse. Right hand reverse. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Zintec steel |
Expected Life | 15 year |
Product certifications
Fire Resistance Testing to BS 476

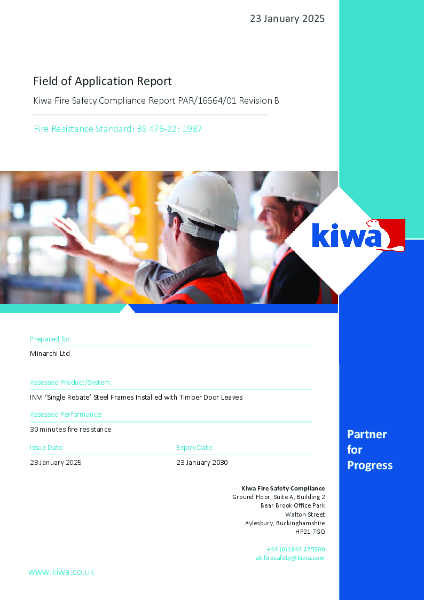

INVI Jamb SRC - FD30 Field Of Application
Fire Resistance Testing to BS 476

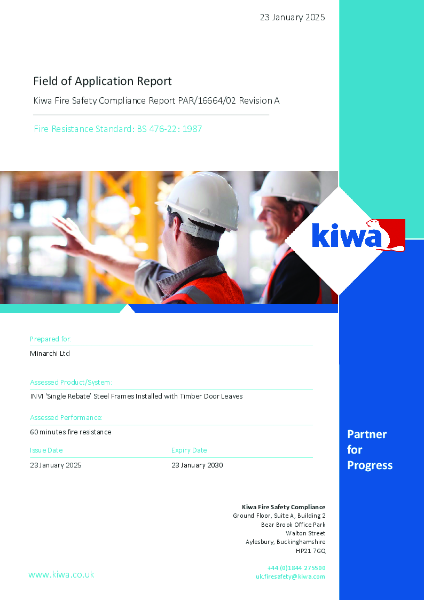

INVI Jamb SRD - FD60 Field Of Application
Literature
INVI-Jamb-SRC-Datasheet
