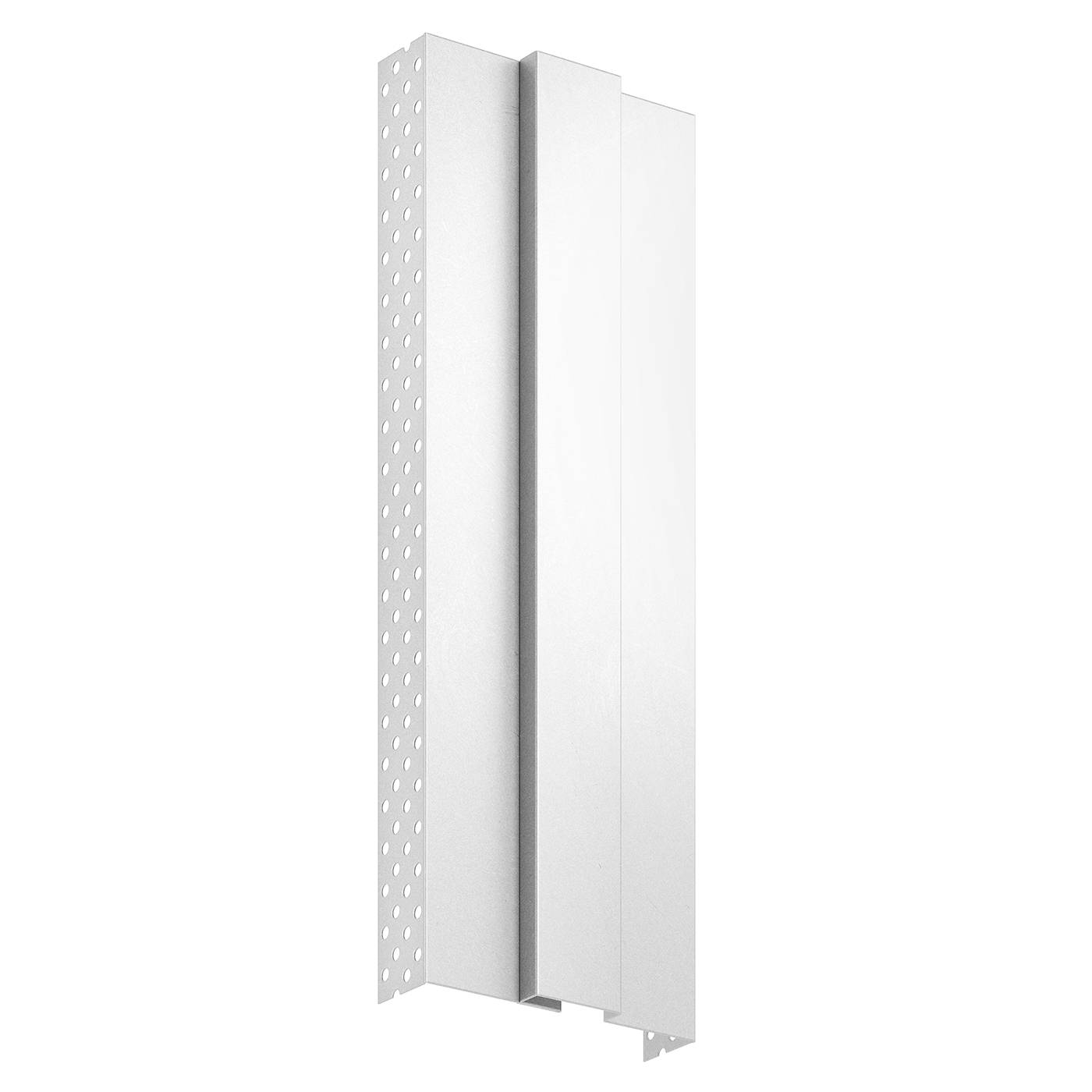

INVI Jamb Classic Adjust EZC - Split Type Door Jamb
Verified by manufacturer 7 days ago
Fire Resistance Testing to BS 476
Certificate type
Fire Resistance Testing to BS 476
Certificate type
Fire Resistance Testing to BS 476
Certificate type
Classic adjust split type door jamb.
Application
Concealed Frame For use with 44 and 54 mm doors.
Description

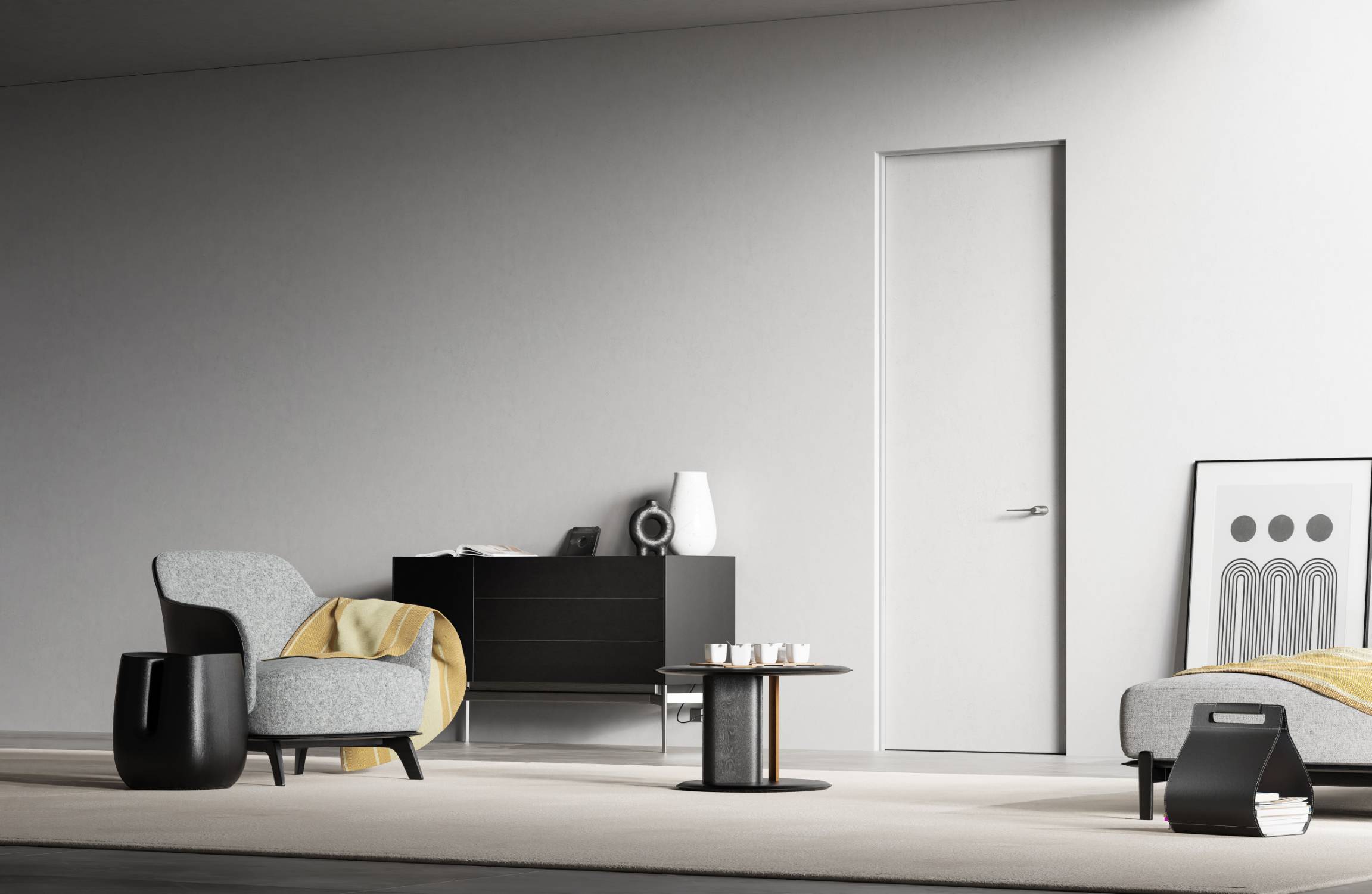

INVI Jamb® Classic Adjust – EZC is a split jamb door system that creates inconspicuous clean lines to complete the contemporary look of architectural spaces. The two-piece jamb is adjustable to allow for various wall thicknesses, ensuring a smooth finish along the wall face.
Features and benefits:
- Wraps the plasterboard during framing to conceal fixings and incorporate the door into the wall face.
- Adjustable width to match the thickness of the wall for a secure fit.
- Manufactured from steel.
- Simple to install and can be painted immediately.
- Complemented by INVI Hardware® Hinges that are designed and tested to withstand heavy traffic flow.
- Available in standard, full height or custom heights and widths.
- Surface mounted latchplate supplied with fixings.
- Wall thickness: 90–225 mm.
General information
Color | Silver Other |
Finish | Other Guidance for specification option: Zinc annealed |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceWidth: Up to 1219 mm single or 2438 mm pair. |
Height | Bespoke Manufacturer guidanceHeight: Up to 3048 mm. |
Warranty description | One year |
Uniclass | |
CAWS | L20/370 Door frames |
SKU Code | EZC Classic Adjust |
Specification data - Carbon steel door frames
Classification data | |
Fire performance | FD30. FD60. |
Configuration | Classic Adjust EZC. |
Dimensions | |
Width and height | Manufacturer guidanceWidth: Up to 932 mm single or 1864 mm double. Height: Up to 3000 mm. Custom sizes available upon request. Insert requirements. |
Perimeter seals or inserts | N/A. |
Finish | |
Coating | Zinc annealed. |
Handing | Left hand reverse. Right hand reverse. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel |
Expected Life | 20 year |
Product certifications

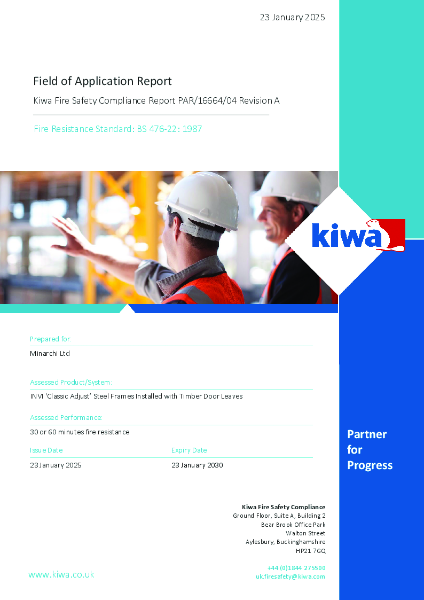

Fire Resistance Testing to BS 476
INVI Jamb EZC/D - FD30 & FD60 Field Of Application
Fire Resistance Testing to BS 476
Strebord FOA inc. EZC/D & ISD (Frame 5.1, 5.2 & 5.3) - FD30

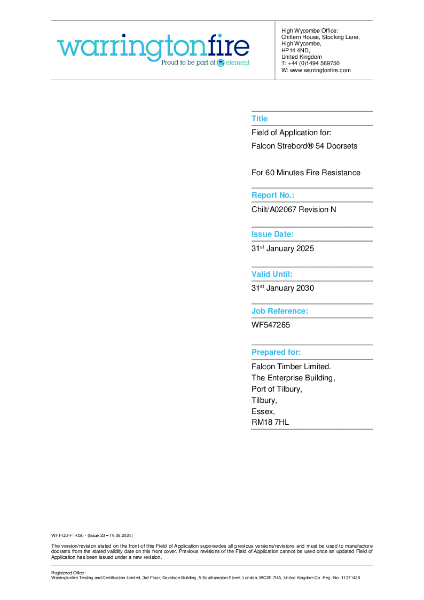

Fire Resistance Testing to BS 476
Strebord FOA inc. EZC/D (Frame 4) - FD60
