Intelivent Solar - Natural Ventilation Units

Verified by manufacturer 10 months ago

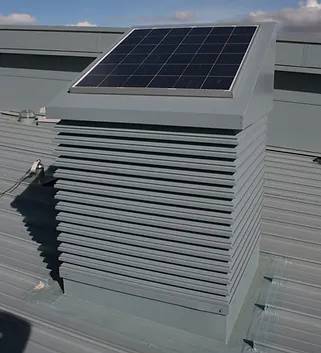

Intelivent™ Solarstore Turret

GDL Air Systems Ltd Variant:

Natural ventilation systems using solar energy and natural daylight.

Jump to:
+44 (0)1457 861538 Website

Application

Designed to deliver natural daylight throughout buildings in areas such as corridors, stairwells, offices and classrooms. Particularly suitable for use within educational, healthcare and commercial buildings.

Description

The Solarstore and Solarpipe are used in conjunction with the penthouse turret to provide both lighting and ventilation within a building.


Solarstore Turret

Intelivent™ Solarstore allows increased ventilation in summer and at times of high occupancy, and also improves the effectiveness of night time cooling or night purge.


Solarpipe Turret

Intelivent™ Solarpipe combines natural ventilation and lighting by diffusing natural light into a building, eliminating the need for artificial lighting providing a sustainable and energy efficient alternative.


Features and benefits:

  • Turrets can be sized accordingly to meet the required light and ventilation needs for each specific space.
  • Fresh air circulates and stale air is extracted.
  • Bird mesh fitted to rear of blades as standard.
  • Ultra low leakage insulated damper supplied with actuator.
  • Turret roof fabricated from 2.0 mm aluminium.
  • The Solarstore can increase the ventilation rate by over 75%.
  • Optional extras including insect mesh, double bank, internal splitter and acoustic insulation.
  • Manufactured in Britain.

General information

Color

Silver

Grey

Other

Finish

Galvanized

Material

Aluminium

Steel

Shape

Rectangle

Square

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_65_40_33_56 Natural ventilation systemsPrimary

CAWS

L10/495 Daylight pipe

L10/48 Daylight pipe

L10/47 Roof ventilators

L10/45 Rooflights

L10/490 Roof ventilators

L10/460 Rooflights

Product range

Intelivent Solar / Intelivent™ Solarpipe Turret
Intelivent Solar / Intelivent™ Solarstore Turret

Specification data - Natural ventilation systems

System performance

Natural ventilation design.

Ventilation inlet openings

Dampers and louvres.

Guidance for specification option:

  • High performance weather louvre.
  • Ultra low leakage insulated damper supplied with actuator (DL533+3M).

Actuators

Damper actuators.

Supply

Internal ceiling egg crate grille (S5000+1C).

Ventilation openings

Aluminium louvre panel units.

Guidance for specification option:

High performance weather louvre.

Thermal insulation

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Accessories

Intelivent™ Solarstore - Solar PV panel.

Guidance for specification option:

  • Photovoltaic solar cell.
  • Power management module.
  • DC carbon fibre re-chargeable battery (enables night purge allowing 24-hour ventilation).
  • Dual DC reversible fans (supply/extract boost fan).

Controls

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Ventilation opening control

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Integral accessories

Turret skirt with 50 mm turned down from extruded aluminium section.
Galvanized drop duct from turret up stand.
Telescopic damper connection sleeve constructed from 16 swg galvanized steel.
Grille connection sleeve, fabricated from aluminium.

System accessories

Bird mesh.

Guidance for specification option:

Fitted to units as standard.

Insect mesh.

Guidance for specification option:

Optional. Reduces free area by 15%.

Double bank.

Guidance for specification option:

Optional.

Internal splitter.

Guidance for specification option:

Optional. For supply and extract.

Acoustic insulation.

Guidance for specification option:

Optional. Reduce noise and vibration levels.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
