Industrial Stair System - Ascent Step Over Unit

Verified by manufacturer 7 days ago

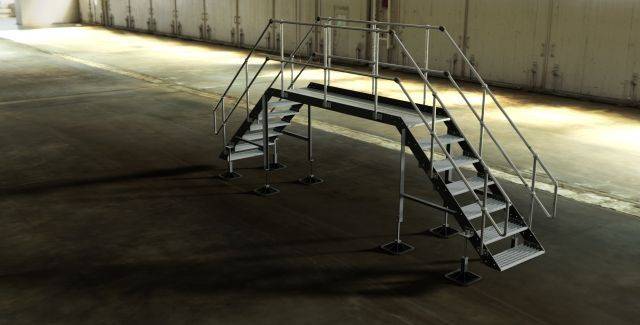

Ascent Step Units - Mild Steel, Up & Over

Safety Fabrications Limited Variant:
Third party certifications:
  • TUV - Safety and Quality Report

    Certificate type

Industrial stair system/ step over system, designed to create safe access over plant and equipment. Typically used on roof tops and in plant rooms. Available in both Aluminium & Galvanized Mild steel.

Jump to:
BIM object icon
+44 (0)1142852203 Website

Application

Ascent Step Over Units provide simple access solutions to complex access issues, including how to get over Mechanical & Electrical services; ducting, pipework, cable trays and parapet walls without compromising the health and safety of the worker.

Description

Ascent Step Over Units are typically 800 mm wide complete with handrail to bothsides. They can be provided in both Mild Steel galvanized & Aluminium Mill Finish or Powder Coated to your requirements. The step over units can be both Free standing supported on non-penetrative rubber feet or affixed to the structure of the building. The walking surface is free draining and anti-slip. They are designed in accordance with BS EN ISO 14122-1:2001 + A1 2010. They are manufactured in Great Britain in accordance with CE/ UKCA manufacturing procedures.


Investment in both research and development has enabled the creation of a step system manufactured in accordance with BS EN ISO 3834-2:2005 and BS EN 1090-1:2009 + A1:2011 & 2:2008 and CE Marked. This has produced an accurately manufactured product which is both easy to specify and install.


Features and benefits:

  • Offers on-site adjustment.
  • Available as either 'Up and Onto' or 'Up and Over' and are complemented with a range of platforms to clear obstructions.
  • Supplied with freestanding feet enabling a safe and secure fit without roof penetration.
  • General arrangement drawings provided.
  • Supplied flat pack.
  • All fixings supplied.
  • Standards range of heights up to 1750 mm.
  • Standard Platform lengths up to 2500 mm. (larger available on request).
  • All Ascent™ products have been approved through the necessary safety and structural calculations and are supplied in compliance with BS EN ISO 3834-2 and BS EN 1090-1 and CE marked.

General information

Color

Consult manufacturer and insert requirements.

Grey

Finish

Powder-coated

Anti-slip

Anodized

Material

Aluminium

Steel

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Standard product warranty.

20 year

Uniclass

Ss_35_10_30_40 Industrial stair systemsPrimary

CAWS

L35/150 Stair systems

L30/20 Stairs

L30/250 Metal stairs

L30/270 Stairs

Specification data - Industrial stair systems

Landings

-

Material

Mild steel cold-formed planks.

Handrail system

Required.

Height

287–407 mm.

1 tread.

432–627 mm.

2 treads.

652–847 mm.

3 treads.

872–1067 mm.

4 treads.

1092–1287 mm.

5 treads.

Show more

Self-closing gates

Not applicable.

Required.

Insert requirement, consult manufacturer for information.

Tread width

800 mm.

Standards

Designed in accordance with BS EN ISO 14122-1:2001 + A1:2010 and Building Regulations Part K ; 2013.

To BS EN ISO 3834-2 and BS EN 1090-1.

Third-party certification

CE marked.

Length

Up to 538 mm.

Up to 1038 mm.

Up to 1538 mm.

Up to 2038 mm.

Up to 2538 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

90%

Recycled content

60 %

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

TUV - Safety and Quality Report

TUV - Safety and Quality Report

Factory Production Control EN 1090-1

TUV - Safety and Quality Report

TUV - Safety and Quality Report

Management System as per BS EN ISO 3834-2:2021

TUV - Safety and Quality Report

TUV - Safety and Quality Report

Management system as per: BS EN ISO 9001:2015

Literature

Ascent Step Over units

Ascent Step Over units

Ascent Aluminium Products Life Cycle Assessment & Durability Statement

Ascent Aluminium Products Life Cycle Assessment & Durability Statement

Ascent Step Unit Installation Instructions

Ascent Step Unit Installation Instructions

Case studies

Industrial stair system - Wolfson Building, University of Glasgow

Industrial stair system - Wolfson Building, University of Glasgow

Industrial stair system - Ascent Step over unit

Industrial stair system - Ascent Step over unit

Industrial stair system - Edinburgh Airport

Industrial stair system - Edinburgh Airport

Similar products from Safety Fabrications Limited

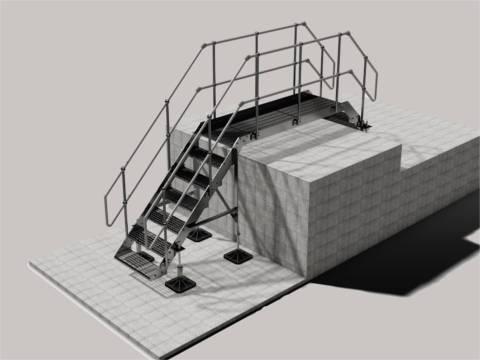

Industrial Stair System - Step Over Unit; Up & Onto Obstruction
