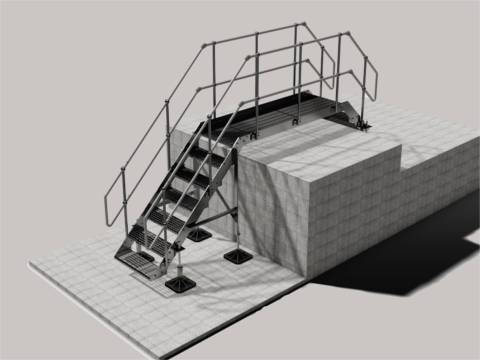

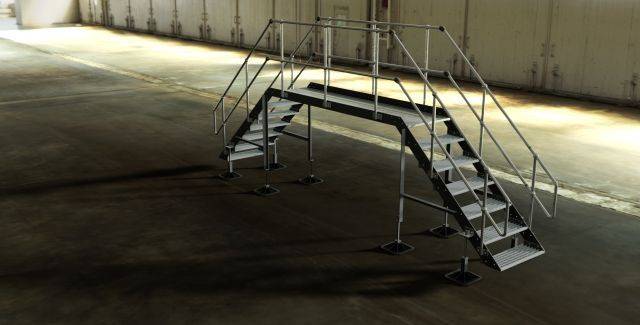

Industrial Stair System - Ascent Step Over Unit

Verified by manufacturer 4 months ago

Ascent Step Units - Mild Steel, Up & Over

Safety Fabrications Limited Variant:
Third party certifications:
  • TUV - Safety and Quality Report

    Certificate type

Industrial stair system/ step over system, designed to create safe access over plant and equipment. Typically used on roof tops and in plant rooms. Available in both Aluminium & Galvanized Mild steel.

Jump to:
BOS
+44 (0)1142852203 Website

Application

Ascent Step Over Units provide simple access solutions to complex access issues, including how to get over Mechanical & Electrical services; ducting, pipework, cable trays and parapet walls without compromising the health and safety of the worker.

Description

Ascent Step Over Units are typically 800 mm wide complete with handrail to bothsides. They can be provided in both Mild Steel galvanized & Aluminium Mill Finish or Powder Coated to your requirements. The step over units can be both Free standing supported on non-penetrative rubber feet or affixed to the structure of the building. The walking surface is free draining and anti-slip. They are designed in accordance with BS EN ISO 14122-1:2001 + A1 2010. They are manufactured in Great Britain in accordance with CE/ UKCA manufacturing procedures.


Investment in both research and development has enabled the creation of a step system manufactured in accordance with BS EN ISO 3834-2:2005 and BS EN 1090-1:2009 + A1:2011 & 2:2008 and CE Marked. This has produced an accurately manufactured product which is both easy to specify and install.


Features and benefits:

  • Offers on-site adjustment.
  • Available as either 'Up and Onto' or 'Up and Over' and are complemented with a range of platforms to clear obstructions.
  • Supplied with freestanding feet enabling a safe and secure fit without roof penetration.
  • General arrangement drawings provided.
  • Supplied flat pack.
  • All fixings supplied.
  • Standards range of heights up to 1750 mm.
  • Standard Platform lengths up to 2500 mm. (larger available on request).
  • All Ascent™ products have been approved through the necessary safety and structural calculations and are supplied in compliance with BS EN ISO 3834-2 and BS EN 1090-1 and CE marked.

General information

Color

Grey

Manufacturer guidance

Consult manufacturer and insert requirements.

Finish

Powder-coated

Anti-slip

Anodized

Material

Aluminium

Steel

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

20 year

Manufacturer guidance

Standard product warranty.

Uniclass

Ss_35_10_30_40 Industrial stair systemsPrimary

CAWS

L35/150 Stair systems

L30/20 Stairs

L30/250 Metal stairs

L30/270 Stairs

Specification data - Industrial stair systems

Landings

-

Material

Mild steel cold-formed planks.

Handrail system

Required.

Height

287–407 mm.

Guidance for specification option:

1 tread.

432–627 mm.

Guidance for specification option:

2 treads.

652–847 mm.

Guidance for specification option:

3 treads.

872–1067 mm.

Guidance for specification option:

4 treads.

1092–1287 mm.

Guidance for specification option:

5 treads.

Show more

Self-closing gates

Not applicable.

Required.

Guidance for specification option:

Insert requirement, consult manufacturer for information.

Tread width

800 mm.

Standards

To BS EN ISO 3834-2 and BS EN 1090-1.

Manufacturer guidance

Designed in accordance with BS EN ISO 14122-1:2001 + A1:2010 and Building Regulations Part K ; 2013.

Third-party certification

CE marked.

Length

Up to 538 mm.

Up to 1038 mm.

Up to 1538 mm.

Up to 2038 mm.

Up to 2538 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

90%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %
