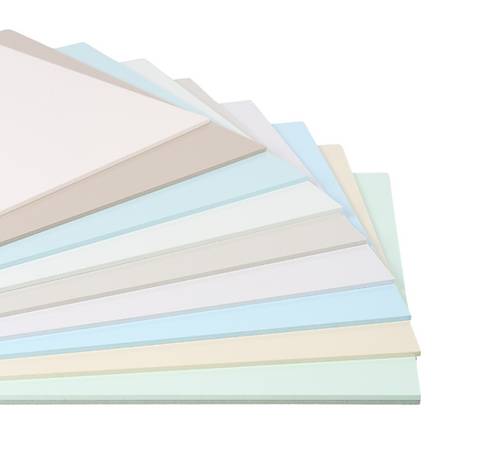

ImpactPRO® Satins PVC Hygienic Wall Cladding - Extruded Semi-Rigid PVC Sheet

Verified by manufacturer 3 months ago

Impact Group UK Third party certifications:
  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

Extruded semi-rigid PVC sheet offering exceptional resistance to impact, chemical substances, moisture, stains, and spills.

Jump to:
+44 (0) 800 669 6306 Website

Application

Suitable for hygienic applications such as:

  • Kitchens.
  • Bathrooms.
  • Gymnasiums.
  • Dental practices.
  • Hospitals.
  • All hygienic and hard wearing applications.

Suitable substrates include:

  • 12.5 mm thick plasterboard.
  • OSB Board 12 mm.
  • Minimum 9 mm W.P.B resin bonded to substrate.

(PVA sealer not generally required).


All these surfaces will require PVA sealer coat by others unless specified otherwise:

  • Good quality fair faced brick or block work. Well aligned joints bagged up flush.
  • Straight to within 3 mm over a 2 m straight edge and bricks/ blocks flush with one's adjacent.
  • Sand and cement rendering 1:3 to a steel trowel finish.
  • Ceramic tiles which are securely bonded to substrate. (No responsibility is accepted for any subsequent delamination of tiles from the substrate).
  • Certain sound painted surfaces (an adhesive test is advisable to ascertain compatibility).
  • Pre-cast concrete walls (must have PVA sealer coat).
  • Plastered surfaces (subject to survey by Installer to confirm suitability).

NB: Pink lightweight plasters are generally not suitable.

Painted surfaces will require a 'key' to avoid delaminating of paint from substrate.

Description

ImpactPRO Satins 2.5mm hygienic cladding solid PVC sheet. 2.5mm for uneven walls with imperfections, for example covering over tiles which have been removed or uneven brick/blockwork.


The ImpactPRO uPVC Satins cladding range offers exceptional resistance to impact, chemical substances, moisture, stains, and spills, enabling simplified cleaning and maintenance that's also practical and cost-efficient.



Features and benefits:

  • Effective hygienic wall protection.
  • Fire rated - self extinguishing.
  • High chemical resistance.
  • Good temperature range (+60 to -0°C).
  • Cost effective and easy to install.
  • Food contact approved.
  • Highest quality PVC sheets.
  • 2.5 mm solid PVC hygienic cladding sheets.
  • Food grade. high chemical resistance.
  • Class 0 fire rating, high impact resistant.

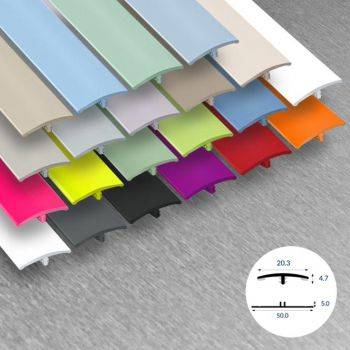

  • Matching profile trims available.

General information

Color

White

Blue

Grey

Green

Purple

Show more

Finish

Satin

Material

PVC

Shape

Rectangle

Length

2440 mm

2800 mm

3050 mm

Width

1220 mm

Height

2.5 mm

Warranty description

20 year

Uniclass

Pr_25_71_14_62 Plastics sheet wall claddingsPrimary

CAWS

K13/145 Proprietary plastics cladding

K13/145 Proprietary plastics cladding

Specification data - Plastics sheet wall claddings

Material

Solid PVC sheet.

Thickness

2.5 mm.

Sheet size

2440 x 1220 mm.

2800 x 1220 mm.

3050 x 1220 mm.

Finish

Satin.

Colour

Brilliant white.

Clay.

Linen.

Ivory.

Sandstone.

Pebble.

Duck egg.

Willow.

Mint.

Sky.

Edges

-

Manufacturer guidance

Matching profile trims available. Consult manufacturer and insert requirements.

Fire performance

To BS 476-Part 6, V-0.
To BS 476-Part 7, Class 1.

Specific gravity

To DIN ISO 1183, 1.45 g/cm³.

Water absorption

To EN ISO 62, 0.20%.

Manufacturer guidance

Water absorption till saturation 23°C.

Service temperature range

0–60℃.

Tensile strength

To DIN EN ISO 527-1, >45 MPa.
To DIN EN ISO 527, >20 (at break).

Elongation

To EN ISO 527, >45%.

Shore Hardness - D

To DIN EN ISO 868, 68.

Modulus of elasticity

To ISO 527-1,2, >2500 MPa.

Softening temperature

To DIN EN ISO 306, 70°C.

Manufacturer guidance

Vicat-softening point VST/B/50.

Coefficient of thermal expansion

To DIN 53752, 0.7 m/(m.K).

Manufacturer guidance

Coefficient of linear thermal expansion 23°C–100°C.

Thermal conductivity (maximum)

To DIN 52612, 0.2 W/mK.

Manufacturer guidance

At 23°C.

Vapour resistivity

To DIN 53482, 10^13 Ω.

Strength

To MSZ EN 60243-1, 18 kV/mm.

Manufacturer guidance

Dielectric strength.

Sustainability data

Contains Red List materials

No

Country of material origin

Hungary

Country of product manufacture

United Kingdom

Material

PVC

Manufacturing plant location

Recyclability

100%

Guidance for specification option:

The recyclability is 100% given for Trovidur® EC-Clad, as long as the protective film is removed and the material is free from contamination like adhesive residues.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Expected Life

40 year

Third party certifications

BS EN 13501-1

BS EN 13501-1

ImpactPRO Fire Certification

Literature

ImpactPRO® Installation Guide

ImpactPRO® Installation Guide

ImpactPRO® Technical Properties Data Sheet

ImpactPRO® Technical Properties Data Sheet

ImpactPRO® Cladding Collection Colour Guide

ImpactPRO® Cladding Collection Colour Guide
