IKO Permatrack Road Surface Patch Repair System

Name: IKO Permatrack Road Surface Patch Repair System
Brand: IKO UK
SKU: 6b9sTcq9c8zYUhhEvhBKrE

Verified by manufacturer 2 days ago

IKO UK

Product certifications:

BBA HAPAS Certification
Certificate type

A system designed for repairing potholes and damaged areas on roads, compatible with bituminous and primed concrete surfaces.

Jump to:

+44 (0)1257 255 771 Website

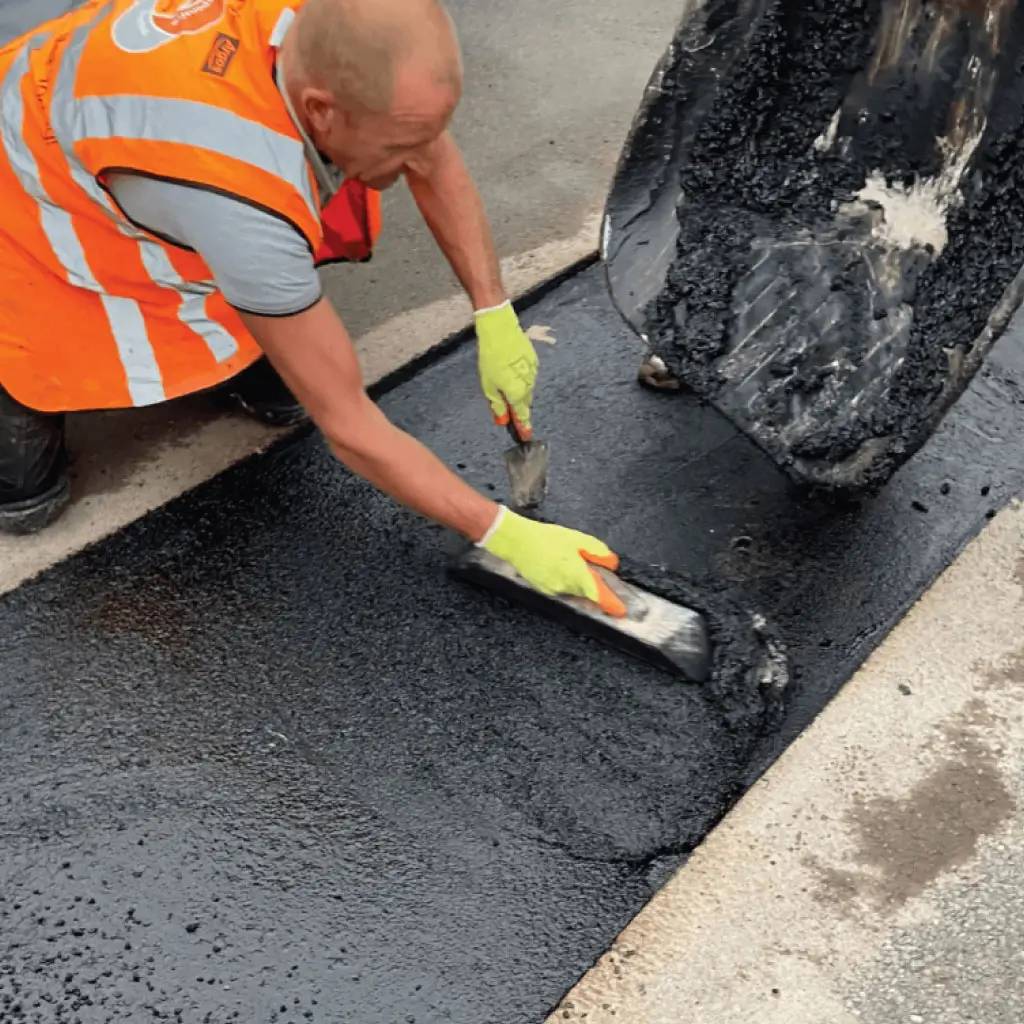

Application

Suitable for use as a repair system for potholes and reinstatements within bituminous and primed concrete primed surfaces.

Description

Specifically designed to address the pothole problem on roads, the IKO Permatrack Road Surface Patch Repair System can also be used within larger damaged areas.

Features and benefits:

BBA Hapas certified – 02/H072 Sheet 3 Issue 1 ‘IKO Permatrack Patch Repair System for Highways’.
Complies with Manual of Contract Documents for Highway Works (MCHW), Volume 1, Series 900, Clause 946.

Components:

IKO Permatrack H.
IKO Permatrack PSB and IKO Quick Dry Primer.

General information

Color	Black
Material	Bitumen Aggregate
Shape	Formless
Warranty description	Five year Guidance for specification option: All of IKO’s road repair and maintenance products come with a five-year materials guarantee when installed in accordance with IKO specifications.

Uniclass	Pr_35_31_05_50 Mastic asphalt (MA) surface coursesPrimary

SKU Code	77050ICR, 77040ICR, 39983100

Specification data - Mastic asphalt (MA) surface courses

Classification data
Standard	To BS EN 13108-6.
Constituents	-
Aggregate size (maximum)	6 mm.
Binder designation	SBS-modified.
Colour	Black.
Aggregate properties	-
Resistance to polishing – polished stone value (minimum)	PSV of 65.
Resistance to surface abrasion – AAV (maximum)	AAV of 10.
Tensile Modulus	>2400 MPa. Manufacturer guidance Indirect tensile stiffness modulus.
Density	2400 kg/m³.
Primer	IKO Quick Dry Bitumen Primer.
Waterproofing layer	IKO Permatrack PSB.
Surface finish	6 mm bitumen coated chippings. Guidance for specification option: At a spread rate of 6.0–7.5 kg/m². 14 mm bitumen coated chippings. Guidance for specification option: At a spread rate of 7.5–10 kg/m². 20 mm bitumen coated chippings. Guidance for specification option: At a spread rate of 10–13.0 kg/m². Manufacturer guidance The Permatrack H on its own does not provide a surface macrotexture but requires bitumen coated chippings to be embedded into the surface.
