IKO Permatrack Inlaid Crack Repair System

Name: IKO Permatrack Inlaid Crack Repair System
Brand: IKO UK
SKU: c2kTM8jkRaUF5Ywpzk7xdA

Verified by manufacturer 2 days ago

IKO UK

Product certifications:

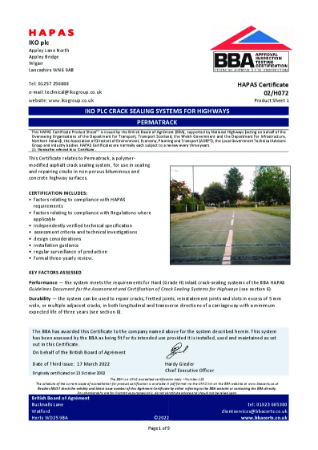

BBA HAPAS Certification
Certificate type

Rapidly installed, long-term repair solution for reflective cracking in asphalt or concrete roads.

Jump to:

+44 (0)1257 255 771 Website

Application

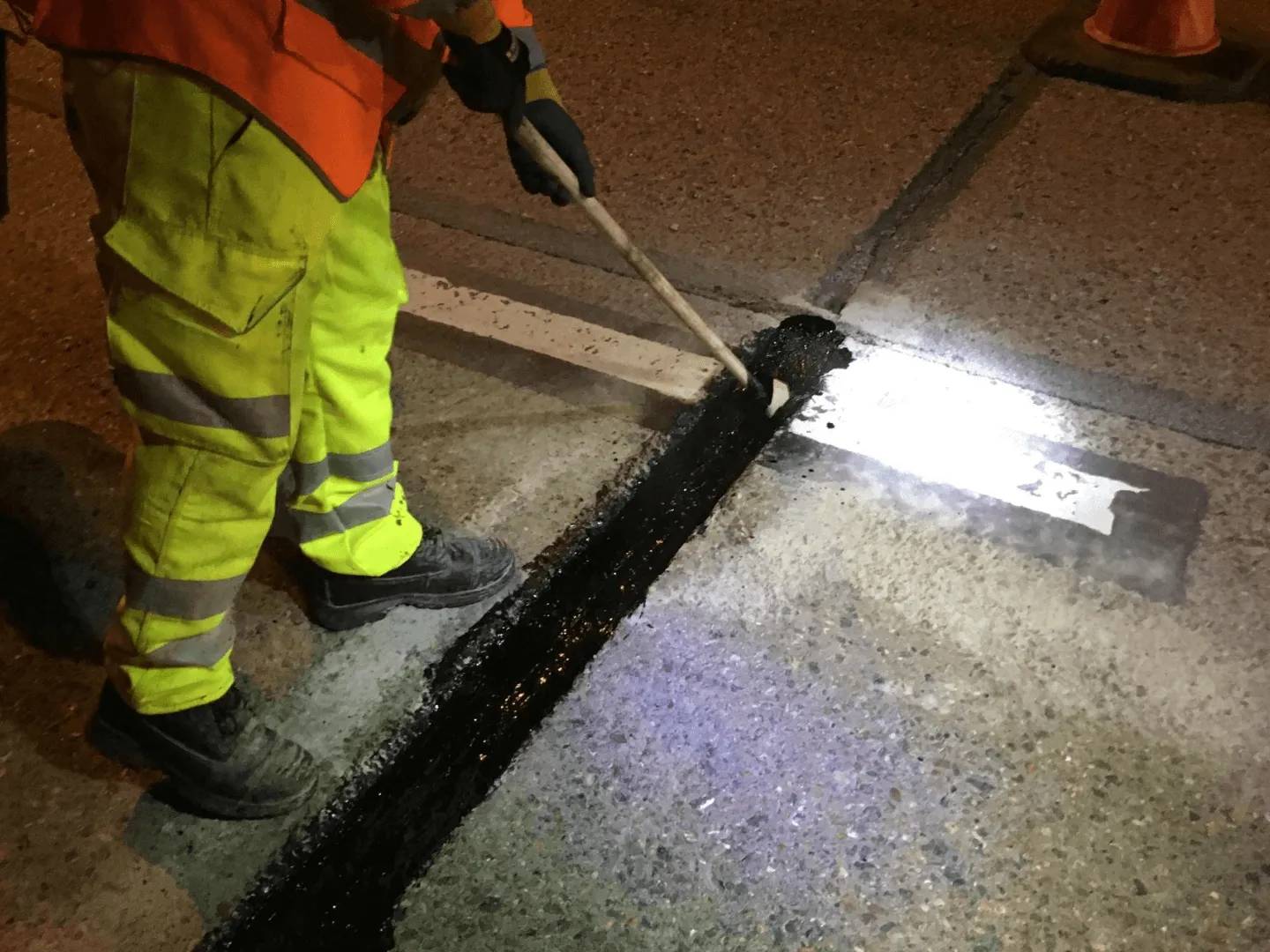

Used for repairing reflective cracks in traditional asphalt or concrete roads, suitable for single or multiple adjacent cracks.

Description

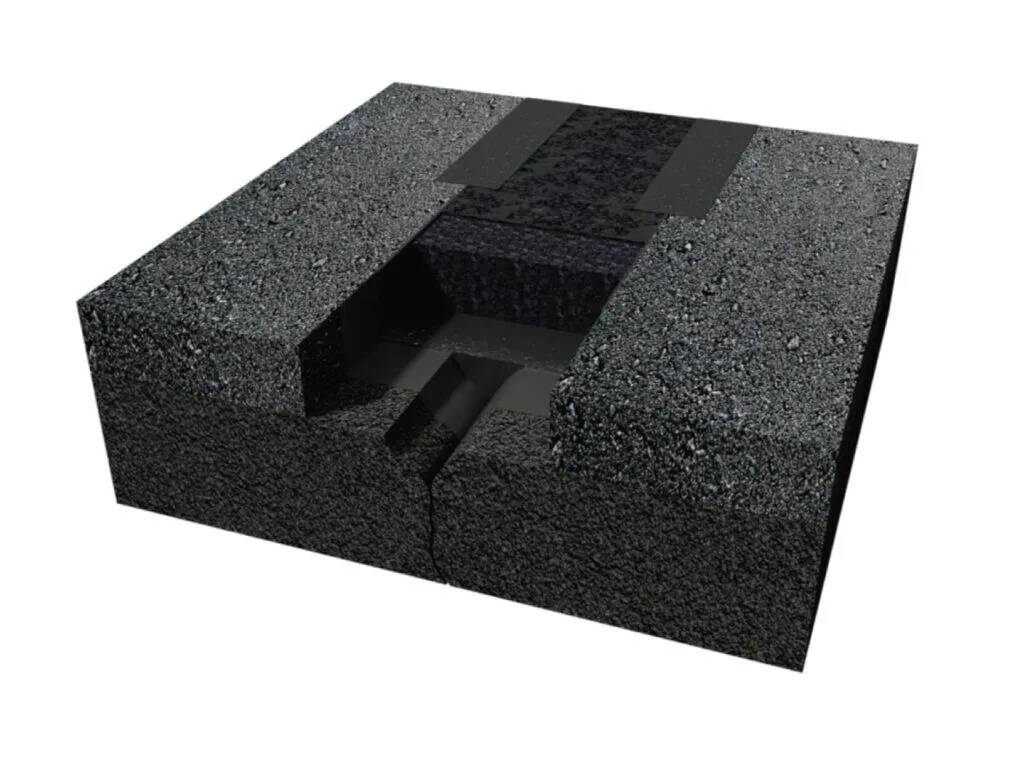

IKO Permatrack Inlaid Crack Repair System is a rapidly installed, long-term repair solution for reflective cracking in traditional asphalt or concrete roads. It can be used for repairing a single crack or adjacent multiple cracks.

Features and benefits:

BBA Hapas certified – 02/H072 ‘IKO Permatrack Crack Sealing Systems for Highways’.
Meets requirements of the Manual of Contract Documents for Highway Works (MCHW) Volume 1, Specification for Highway Works (SHW), Series 700, Clause 711 for Inlaid Crack Sealing Systems.
Unlimited depth and width.
Long-term durability – designed to last a minimum of three years.

Components:

IKO Permatrack H.
IKO Permatrack PSB and IKO Quick Dry Primer.

General information

Color	Black
Material	Bitumen Aggregate Rubber
Shape	Formless
Warranty description	Five year Guidance for specification option: All of IKO’s road repair and maintenance products come with a five-year materials guarantee when installed in accordance with IKO specifications.

Uniclass	Pr_35_31_05_50 Mastic asphalt (MA) surface coursesPrimary

Specification data - Mastic asphalt (MA) surface courses

Classification data
Standard	To BS EN 13108-6.
Constituents	-
Aggregate size (maximum)	6 mm.
Binder designation	SBS-modified.
Colour	Black.
Aggregate properties	-
Resistance to polishing – polished stone value (minimum)	PSV of 65.
Resistance to surface abrasion – AAV (maximum)	AAV of 10.
Tensile Modulus	>2400 MPa. Manufacturer guidance Indirect tensile stiffness modulus.
Density	2400 kg/m³.
Primer	IKO Quick Dry Primer.
Waterproofing layer	IKO Permatrack PSB. Guidance for specification option: A rubberised waterproofing layer designed to increase flexibility and improve adhesion to existing surfacing.
Surface finish	6 mm bitumen coated chippings. Guidance for specification option: At a spread rate of 6.0–7.5 kg/m². 14 mm bitumen coated chippings. Guidance for specification option: At a spread rate of 7.5–10 kg/m². 20 mm bitumen coated chippings. Guidance for specification option: At a spread rate of 10–13.0 kg/m². Manufacturer guidance The Permatrack H on its own does not provide a surface macrotexture but requires bitumen coated chippings to be embedded into the surface.
