ICU doors

Verified by manufacturer 3 days ago

Manual.

Dortek Ltd Variant:

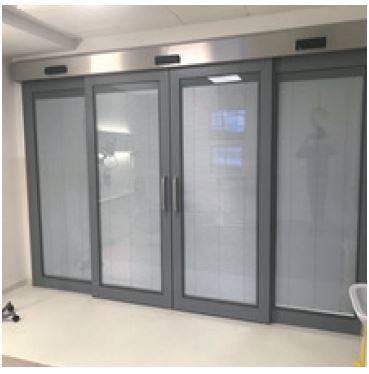

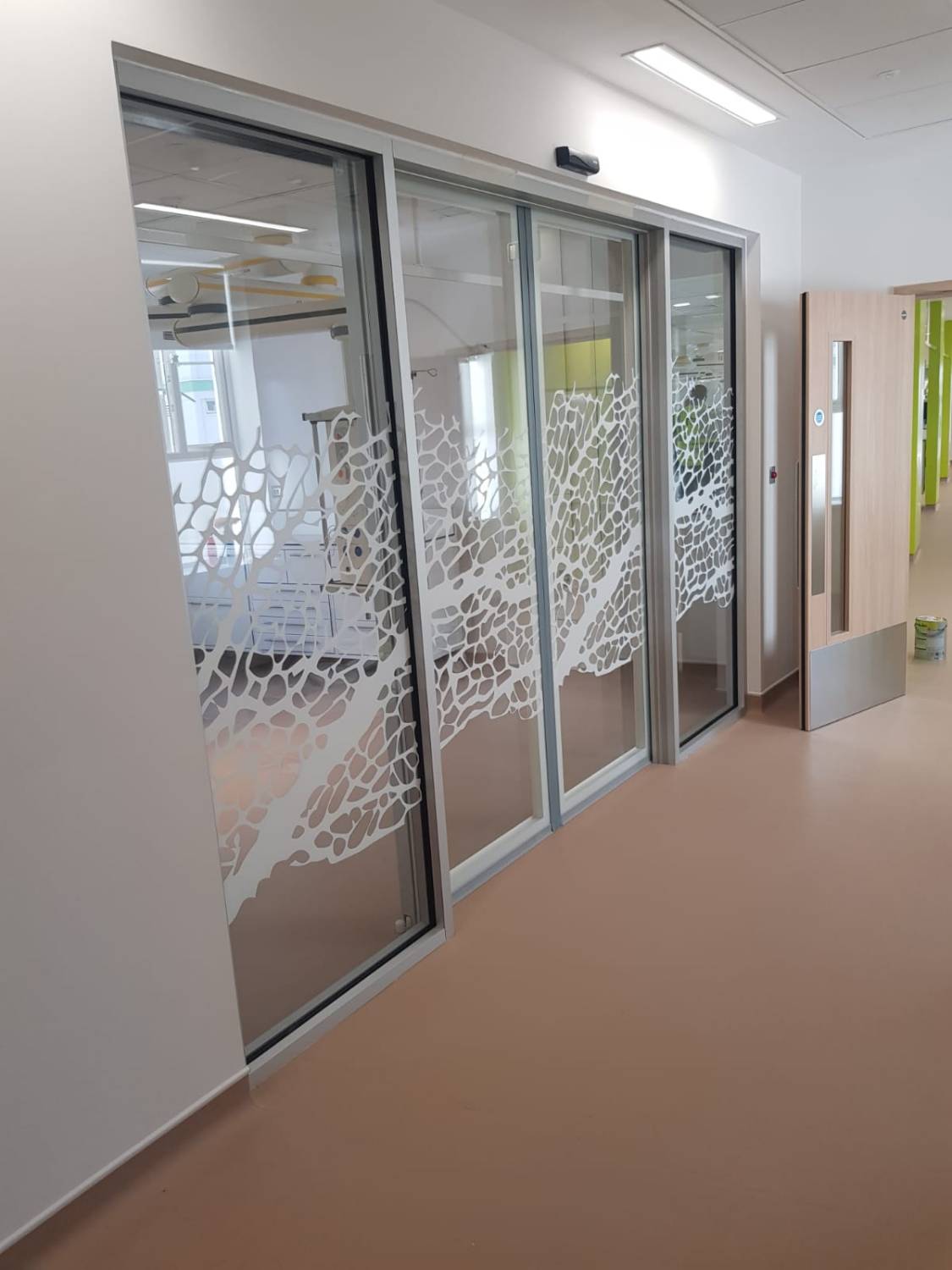

Sliding ICU bi-parting door with fixed glazed panels.

Jump to:
BOS
 +44 (0)1482 226848 Website

Application


  • ICU.

Description

Sliding bi-parting door with fixed glazed panels. Innovative glass sliding system that is durable, contemporary and ideal for providing visibility. The smooth sliding action saves on opening space.


Features and benefits:

  • DT-A1 Glass sliding door with fixed glazed panel.
  • Manual or automated door.
  • Options include manifestations, blinds or switchable glass within door & fixed glazed panels.
  • DT5 track system fitted to 100 x 145mm aluminium box section at head.
  • Aluminium box section fixed into wall.
  • Fixed glazed panel fitted to underside of box section.
  • Self-supporting 100 x 45mm aluminium vertical posts fitted into grounds in wall opening.
  • Fixed glazed unit fixed to aluminium vertical supports.


Antimicrobial options:

  • Antimicrobial copper alloy handles. Aesthetic finish and appearance of stainless steel 400mm or 650mm sizes available.
  • On-line coated glass with a photocatalytic coating providing antimicrobial properties. Can be toughened or laminated.
  • Consult manufacturer.


General information

Color

Silver

Other

Guidance for specification option:

Colour to RAL number, consult manufacturer.

Finish

Powder-coated

Satin

Material

Glass

Aluminium

Shape

Rectangle

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

L20/490 Automatic doors

L20/60 Doors

Product range

Doors / Sliding Doors

Specification data - Sliding door and partition sets

Performance

Internal.

Arrangement

Bi-parting opening.

Track system

DT5 aluminium track system.

Guidance for specification option:

With complete with low friction nylon roller bearings.

Door leaves

-

Construction

Guidance for specification option:

Mounting type:

  • Track mounted over the structural opening.
  • Requires sliding space.
  • Requires track fixing over the opening and sliding space.


Optional:

  • Fixed glazed panel within the structural opening.
  • Track mounted within Structural opening (self supporting unit).
  • Glass sliding door sliding over fixed glazed panel.
  • 100 x 145 mm aluminium box section at head section and 100 x 45 mm aluminium up rights fixed into opening.
  • Fixed glazed panel fixed within opening.

Finish and colour

Powder coated, RAL.

Guidance for specification option:

As standard. Colour to RAL number, insert requirement.

Satin aluminium.

Guidance for specification option:

Optional.

Stainless steel.

Guidance for specification option:

Optional.

Operation

Manual.

Guidance for specification option:

Manual opening with soft open / close damper.

Hardware

Not required.

Stainless steel D handle back to back secret fix, at 300 mm centres.

Stainless steel D handle at 300 mm centres on track side and flush pull handle on non track side.

Antimicrobial handle.

Guidance for specification option:

Optional.

Accessories

Not required.

LCD switchable glass.

Guidance for specification option:

  • Max size 1500 x 3200 mm.
  • Opaque in off state and translucent in “on” state.

Glass

Double glazed 6 mm, toughened glass.

Single glazed 6 mm, toughened glass.

10.4 mm laminated safety glass.

Guidance for specification option:

Optional.

Toughened & laminated safety glass.

Guidance for specification option:

Optional.

Antimicrobial glass.

Guidance for specification option:

Optional.

Canopy

Sloping canopy.

Flat top canopy.

Canopies

Stainless steel.

Guidance for specification option:

As standard.

Powder coated, RAL.

Guidance for specification option:

Optional, insert requirement.

Manufacturer guidance

Colour / finish.

Frame

High surround frame.

Guidance for specification option:

45 x 110 mm (width x high).

Aluminium corner edge profile.

Guidance for specification option:

Optional.

Stainless steel wall liner.

Guidance for specification option:

Optional.

Controllers

Not required.

Manufacturer guidance

Automation Controllers.

Glass panel

Fixed glazed panel on one side.

Fixed glazed panel either side for bi-parting.

Manufacturer guidance

45 mm wide x 110 mm high powder coated aluminium surround frame profile to match door blade.

110 mm wide x 45 mm high surround frame.

Glass spec to match door blade.

Integral venetian blinds

Integrated venetian blind systems with horizontal slats with tilt only.

Colour/ Finish

Guidance for specification option:

Colour of blind slat from standard range, insert requirement.

Manufacturer guidance

Venetian blind colour.

Blinds operation

Manual.

Guidance for specification option:

Operated via turn knob.

Electronic.

Guidance for specification option:

Operated with up/down rocker switch for blind control.

Manifestation

Manifestations mounted on inside of the glazed on a double glazed unit.

Manifestations surface applied on glazing by others.

Beading

Sloped beading.

Guidance for specification option:

Between glass and frame.

Rectangular beading.

Guidance for specification option:

Between glass and frame.

Seals

Not required.

Draught compression seals.

Guidance for specification option:

To leading & trailing edges, jambs and transoms.

Door stoppers

Not required.

Dortek enhanced, 60 mm frame stop.

Dortek flush maglock.

Sustainability data

Contains Red List materials

No

Material

Glass

Aluminium
