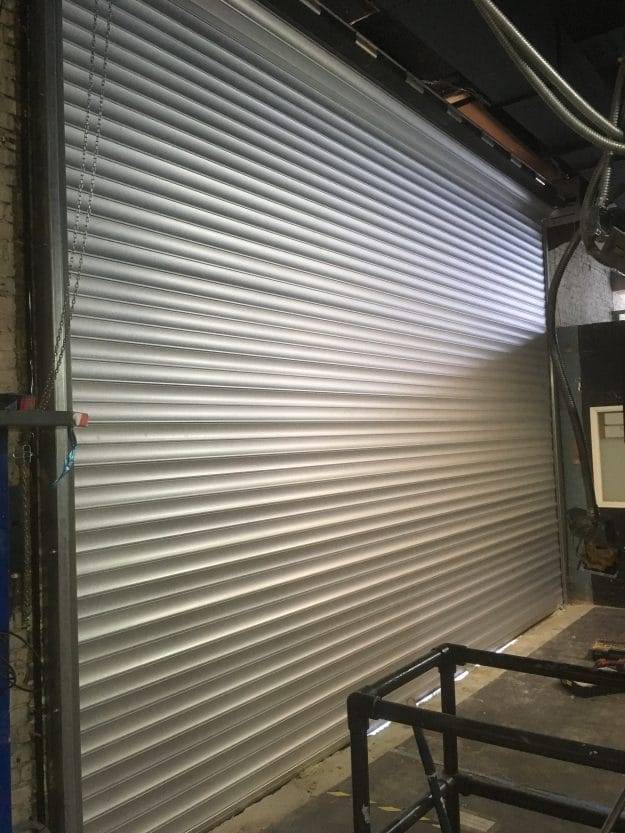

i95 Steel Security Shutter
Verified by manufacturer 13 days ago
Double skinned insulated steel security roller shutter with 95 mm high slats.
Application
Suitable for commercial sites and industrial units that have a large aperture.
Description
Double skinned insulated steel security roller shutter with 95 mm high slats, providing a high security solution popular in commercial and industrial door applications. Developed to span larger openings, the i95 offers superb thermal performance as well as high security. The shutter can span up to 7 m in width and an area up to 35 m².
Features and benefits:
- Guide channel depth: 80 mm.
General information
Finish | Galvanized Plastisol Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product range |
Specification data - Roller shutters
Opening sizes | 7000 x 5000 mm.Guidance for specification option: Available up to 7000 x 5000 mm (w x h). Manufacturer guidanceEnclosure size (internal face fix): Dependent on height.
|
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain. | |
Lath material | Double skinned steel with polyurethane foam insulating core, 95 mm in height. Bottom slat: Polyester powder coated aluminium with weather seal. |
Profile | Manufacturer guidance95 mm. |
Finish and colour | Galvanized.Guidance for specification option: Standard. Polyester powder coated, BS.Guidance for specification option: Insert colour requirement. Polyester powder coated, RAL.Guidance for specification option: Insert colour requirement. |
Frame and guides | |
Material | Enclosure: Roll formed steel with end plates. Guide channels: 85 mm deep steel with brush seals. |
Finish | Galvanized.Guidance for specification option: Standard. Polyester powder coated, BS.Guidance for specification option: Insert colour requirement. Polyester powder coated, RAL.Guidance for specification option: Insert colour requirement. |
Operation | |
Mode | GfA three phase motor with push button control.NRG Economy tubular motor with internal rocker or external key switch.Manufacturer guidanceNumerous control option variants such as group, remote or mobile phone activation are available. |
Control | Push button.Key switch. |
Accessories | None.Crank handle.Manual override facility. |
Weight | 12 kg/m². |
Guide channel depth | 80 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 DWG | - | 1 |
 IFC | - | 1 |
Literature
Industrial Security Shutters
Insulated Security Shutters

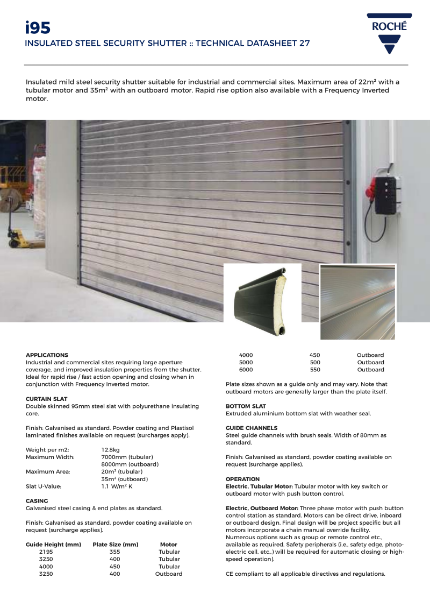

i95 Datasheet
