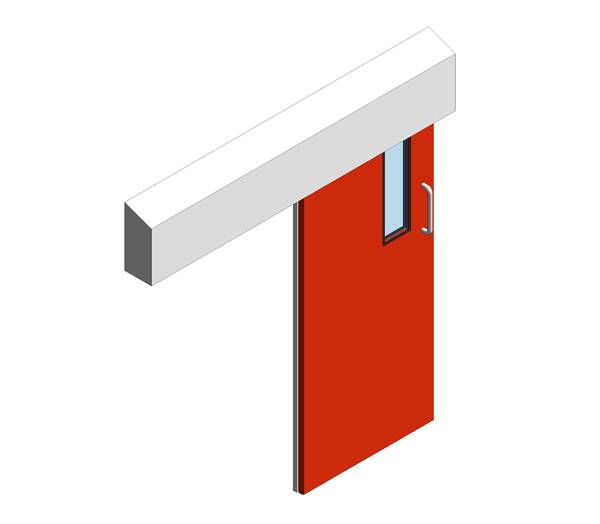

Hygienic Sliding GRP Fire Doors - 60 Min FR

Name: Hygienic Sliding GRP Fire Doors - 60 Min FR
Brand: Dortek Ltd
SKU: 369rmyeEhfNGaF93g59CJc

Verified by manufacturer 15 days ago

Third party certifications:

GRP fire doors which combine safety with hygiene and durability.

Jump to:

Application

Suitable for the following applications:

Specialist GRP fire doors which combine safety without compromising high standards of hygiene and durability.

Features and benefits:

Dortek hygienic sliding GRP doors have a moulded, smooth, seamless, one-piece construction which is easy to clean.
The door does do not harbour bacteria and is unaffected by moisture and common cleaning chemicals, making them particularly suitable in areas that have regular and rigorous cleaning regimes. It is also free from organic materials, ledges, recesses or right angles, for flawless hygiene.
The patented concealed intumescent strip is built into the door during the manufacturing process. This maintains a smooth, seamless profile ensuring that there are no ledges where dirt and germs can gather.
These doors are extremely strong and durable, yet light and easy to operate. The built-in colour is aesthetically pleasing and requires no maintenance.
Fire resistant up to 60 minutes.
Automated.
Hygienic GRP frame.
Smooth and seamless, easy to clean.
Free from voids, ledges and lippings.
Non-porous and non-shedding.
Water and chemical resistant.
Will not warp, rot, swell or rust.
Low maintenance built in colour.

Color	Green Blue Purple Red
Finish	Smooth
Material	Glass Reinforced Plastic (GRP) Guidance for specification option: Glass reinforced polyester.
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year Guidance for specification option: 12 months labor and parts warranty.

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS	L20/490 Automatic doors L20/520 Sliding doors L20/60 Doors

Product range	Doors / Fire Doors Doors / Sliding Doors

Track system	Aluminium rail system with nylon bearings.
Door leaves	-
Finish and colour	Smooth non-porous fire retardant gelcoat finish with built in colour.
Operation	Automatic. Guidance for specification option: Automated as standard with a micro-processor controlled safety photo-cell with in-built safety sensor to open the door if obstructed. Other methods of actuation available - contact manufacturer. Interlocking systems available - contact manufacturer for more information.

Fire resistance	30 minutes. 60 minutes.
Colour	Pale green. Pastel blue. Pastel green. Sky blue. Pastel violet. Poppy red. Special order. Guidance for specification option: Bespoke colours available upon request - contact manufacturer. Show more
Vision panels	Guidance for specification option: Positioned 165 mm (minimum) from the leading edge or centrally in width.
Canopy	Stainless steel with sloping top. Steel, polyester powder coated white with sloping top.
Ironmongery	Guidance for specification option: Insert requirement, consult with manufacturer, a wide range is available.
Materials	Guidance for specification option: 40–60 mm thick with a 2.5 mm thick seamless hygienic glass-fibre reinforced, fire retardant moulded polyester facing and a 35 mm thick vermiculite board core with a density of 380 kg/m³ and thermal conductivity of 0.05 W/mK.
Handles	Stainless steel flush and pull handles.
Guides	Guidance for specification option: Internal bottom track with nylon guide.
Door frames	GRP with smoke seal and intumescent in PVC holder.
Door leaf size	1728 x 2440 mm. 1650 x 2440 mm. 1225 x 2040 mm. 1850 x 2440 mm. 1325 x 2040 mm. 1125 x 2440 mm. 1425 x 2040 mm. 2250 x 2040 mm. 1025 x 2040 mm. 1125 x 2040 mm. 1850 x 2040 mm. 1325 x 2440 mm. 1728 x 2040 mm. 1650 x 2040 mm. 925 x 2040 mm. 1025 x 2440 mm. 1225 x 2440 mm. 1425 x 2440 mm. 2250 x 2440 mm. 2050 x 2440 mm. 925 x 2440 mm. 2050 x 2040 mm. Show more
