Husky and Soltaire Telescopic - Sliding Telescopic Door Solution
Verified by manufacturer 2 months ago
TELHP120/2 - Husky Telescopic two-door kit
TELHP120/2 - Husky Telescopic two-door kit
For sliding telescopic doors weighing up to 120 kg.
Application
- For sliding doors weighing up to 120 kg.
- Residential or commercial.
- Internal use.
- Suitable wide openings to create room dividers or partition doors.
Description
For sliding telescopic doors weighing up to 120 kg.
Features and benefits:
- Telescopic is an innovative sliding door solution designed with a toothed belt and pulley system to link the doors together.
- By moving the lead door, all other doors travel simultaneously.
- The Telescopic range is perfect for wide openings to create room dividers or partition doors.
- When open, the doors neatly stack to one or both sides of the opening to offer a walkway free of obstruction.
- Telescopic is available in kit pack format to create various door configurations.
- Husky Telescopic is suitable for residential applications; Soltaire Telescopic is for commercial projects.
Please note: the track must be purchased in addition to the kit.
Kit components:
- Hangers;
- Clip stop/ track stop;
- Short wheel assembly;
- Long wheel assembly;
- Belt retain block;
- Pulley wheel (four-door kits only);
- Toothed belt;
- Datum block;
- Fixed floor guide;
- Adjustable floor guide;
- Belt clamp.
General information
Color | Silver |
Finish | Mill Other |
Material | Aluminium Metal |
Shape | Rectangle |
Length | 1500 mm 1800 mm 2000 mm 2500 mm 3000 mm Manufacturer guidanceTrack length. |
Width | Bespoke Guidance for specification option: Door width. |
Warranty description | Ten year |
Uniclass | |
CAWS | P21/10 Door track and running gear P21/350 Door track and running gear |
Specification data - Door track and running gear
Classification data | |
Standard | To BS EN 1527. |
Classification grades (minimum) | |
Durability | Manufacturer's standard. |
Door mass | 3. Guidance for specification option: Up to 120 kg. |
Corrosion resistance | Manufacturer's standard. |
Category of door-opening action | 1. |
Initial friction | Manufacturer's standard. |
Form | Manufacturer's standard (two aluminium tracks). Guidance for specification option: See Integral accessories for related details and consult manufacturer's literature for further details. Manufacturer guidanceSpecify track length below - see Length. |
Integral accessories | 1500 mm track. 1800 mm track. 2000 mm track. 2500 mm track. 3000 mm track. 4000 mm track. 6000 mm track. Manufacturer guidanceSee Components for related kit contents. |
Door leaf | Thickness: 32–47 mm. Width: 500–1200 mm. Maximum weight: 120 kg. Manufacturer guidanceSupplied by others. |
Components | Track (as above) plus: Hangers x4; Clip stop/ track stop x2; Short wheel assembly x1; Long wheel assembly x1; Belt retain block x1; Toothed belt (3 m); Datum block x1; Fixed floor guide x1; Adjustable floor guide x1; Belt clamp x3. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium Metal |
Expected Life | Ten year |
Literature
Literature type
Husky & Pocket Door Range Brochure 2024/5
P C Henderson Product Range Brochure 2024/5

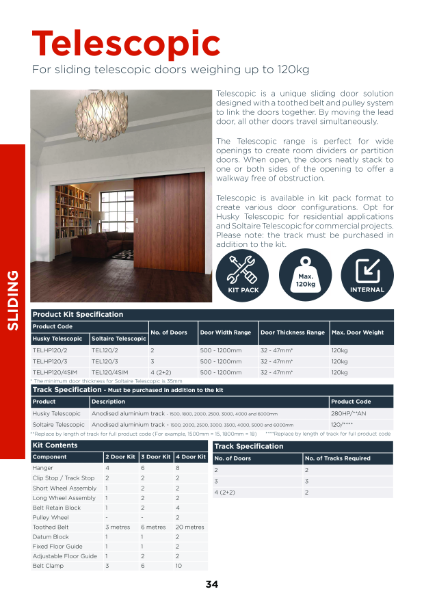

Telescopic Brochure Page

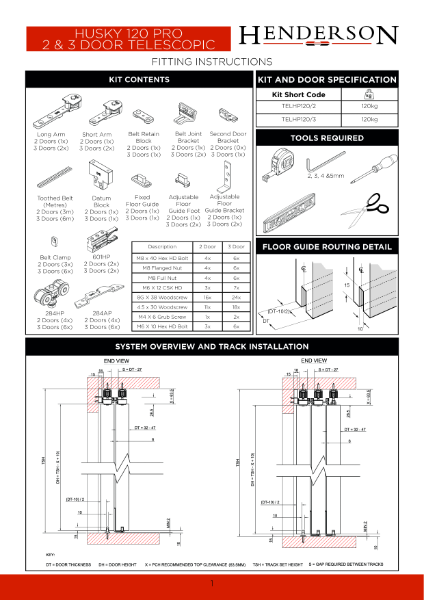

Husky 120 Pro Telescopic - 2+3 Door Instructions

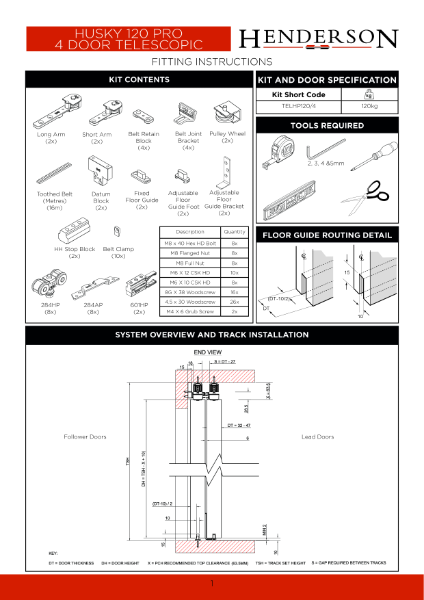

Husky 120 Pro Telescopic - 4 Door Instructions

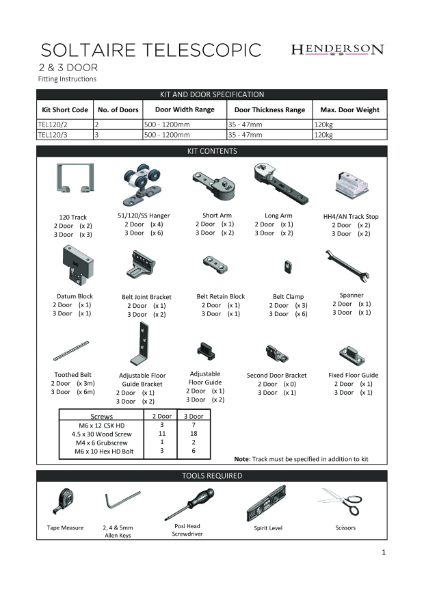

Soltaire Telescopic - 2+3 Door Instructions

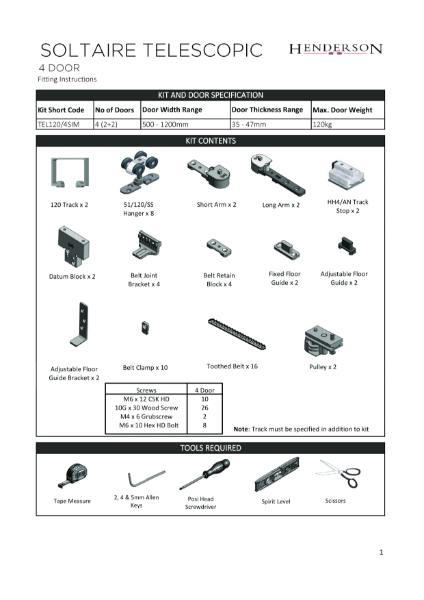

Soltaire Telescopic - 4 Door Instructions
