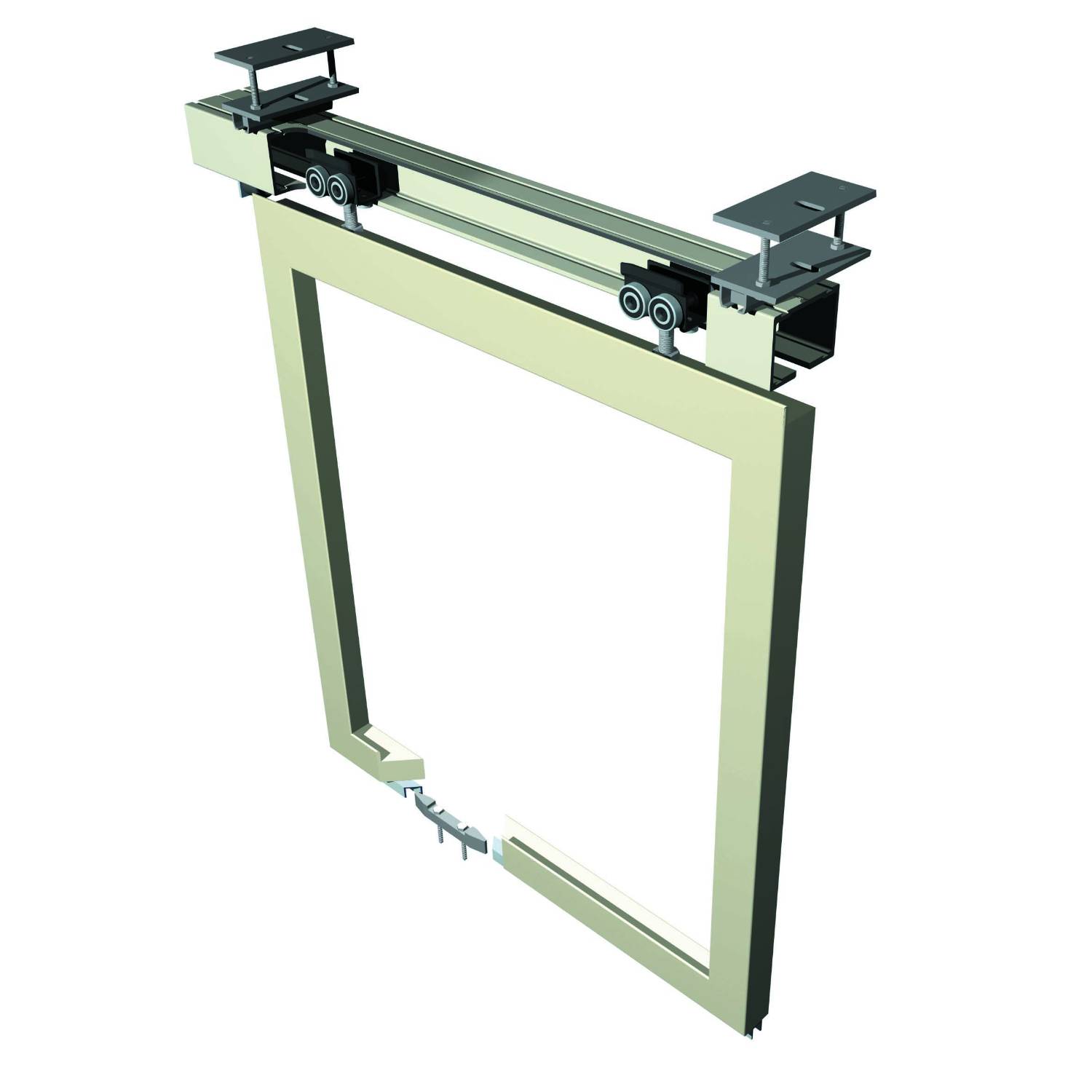

Flexirol Sliding - Sliding Door System for Large Doors

Name: Flexirol Sliding - Sliding Door System for Large Doors
Brand: P C Henderson Ltd
SKU: 9xidnjzbmcZcHktTd6dPxx

Verified by manufacturer 3 days ago

For sliding wooden or metal doors weighing up to 500 kg.

Jump to:

Application

For sliding wooden or metal doors weighing up to 500 kg.
For internal or external use.
Suitable for commercial applications including hotels, offices, conference centres, shop fronts and showrooms where durability and design are paramount.

For sliding wooden or metal doors weighing up to 500 kg.

Features and benefits:

Exclusive system ideally suited to large doors which require high performance as well as an attractive finish.
The system is suitable for commercial applications including hotels, offices, conference centres, shop fronts and showrooms where durability and design are paramount.
The track can be soffit-fixed or face-fixed for flexibility of installation.

Components:

Color	Silver
Finish	Mill Other
Material	Aluminium Metal
Shape	Rectangle
Length	2000 mm 2500 mm 3000 mm 4000 mm 5000 mm 6000 mm Show more Manufacturer guidance Track length.
Width	Bespoke Guidance for specification option: Door width.
Warranty description	Ten year

Uniclass	Pr_30_36_36_23 Door track and running gearPrimary
CAWS	P21/10 Door track and running gear P21/350 Door track and running gear

Standard	To BS EN 1527.
Classification grades (minimum)	-
Durability	Manufacturer's standard.
Door mass	4.
Corrosion resistance	Manufacturer's standard.
Category of door-opening action	1.
Initial friction	Manufacturer's standard.
Form	White aluminium top track, integral hangers with nylon wheels. Mill finish aluminium top track, integral hangers with nylon wheels. Manufacturer guidance Specify track length below - see Length.
Integral accessories	Track stop (HH3/301). Manufacturer guidance Track, brackets, hangers, guides and guide channel are specified separately.

Length	Track: 2000 mm. Track: 2500 mm. Track: 3000 mm. Track: 4000 mm. Track: 5000 mm. Track: 6000 mm. Show more
Brackets	Face fixed (1A/550). Suspended soffit fixed ceiling bracket with vertical adjustment (3S/550).
Hangers	For metal doors (556). For wooden doors with concealed fixing (556/57). For wooden doors with angle plate fixing (556/52).
Guides	For wooden and metal doors (89/2N). Guidance for specification option: One per door. For wooden doors (106N/94). Guidance for specification option: Two per door. For metal doors (104N/94). Guidance for specification option: Two per door.
Guide channel	Brass, 1500 mm (94/1500). Brass, 3000 mm (94/3000). Aluminium, 1500 mm (94X/1500). Aluminium, 2000 mm (94X/2000). Aluminium, 2500 mm (94X/2500). Aluminium, 3000 mm (94X/3000). Aluminium, 3000 mm (94X/3000). Aluminium, 5000 mm (94X/5000). Aluminium, 6000 mm (94X/6000). Show more
Door leaf	Material: wood or metal. Thickness: 40–100 mm. Maximum width: 6000 mm. Maximum weight: 500 kg. Manufacturer guidance Supplied by others.
