Hush Under Screed Acoustic Membrane - Acoustic Under Screed Membrane

Name: Hush Under Screed Acoustic Membrane - Acoustic Under Screed Membrane
Brand: Hush Acoustics
SKU: u64vYBhgAwynXt8Sm3XBuQ

Verified by manufacturer 8 hours ago

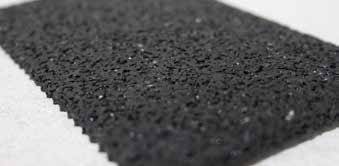

Acoustic rubber membrane for concrete and masonry separating floors to be installed under the screed.

Jump to:

Application

Suitable for isolating screed from concrete, concrete plank, raft, concrete/ metal and beam and block structures.

It can be used as an alternative product for Robust Details specifications.

Acoustic membrane designed to isolate a screed from concrete, concrete plank, raft, concrete/ metal and beam and block structures.

Features and benefits:

Easy to install.
The product has a high resistance to compressive loads and remains outstanding elastic.
Outstanding impact sound reduction.
Loose lay system which does not slip during installation.
Outstanding compressive strength and load bearing performance.
High resilience does not compress and reduce sound absorption.
Environmentally friendly - fully recycled.
Building Regulations Approved Document E (England & Wales), Technical Handbook Section 5 (Scotland) and Technical Handbook G (Northern Ireland) compliant.
Can be used as an alternative product for Robust Details specifications.

Color	Black
Finish	- Manufacturer guidance Fine-tuned granulate.
Material	Rubber
Shape	Rectangle
Length	6000 mm 7000 mm 8000 mm 9000 mm 10000 mm Manufacturer guidance 6–10 m (dependent on thickness).
Width	1000 mm
Height	6 mm 8 mm 10 mm

Uniclass	Pr_25_57_06_71 Resilient layer insulationPrimary
CAWS	M10/295 Floating construction (thin sheet impact sound insulation) M10/40 Floating construction

Product range	Acoustic Rubber Materials

Classification data
Material	Recycled rubber mat. Guidance for specification option: Fine-tuned granulate of recycled rubber.
Density	700 kg/m³ (approximate).
Thickness	6 mm. 8 mm. 10 mm.
Fire performance	Flammability rating: B2.
Sound insulation rating	Impact (Lntw): 55 dB. Airborne (Dntw): 53 dB. Airborne (Dntw +Ctr): 50 dB.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100% Rubber.
Roll size	6–10 x 1 m. Guidance for specification option: L x W: Dependent on thickness.
Colour:	Black.
Surface finish	Fine-tuned granulate.
TensileStrength	To DIN 53571: 0.7 N/mm².
Tear resistance	To DIN 53571: 75%.
