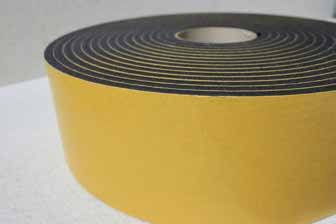

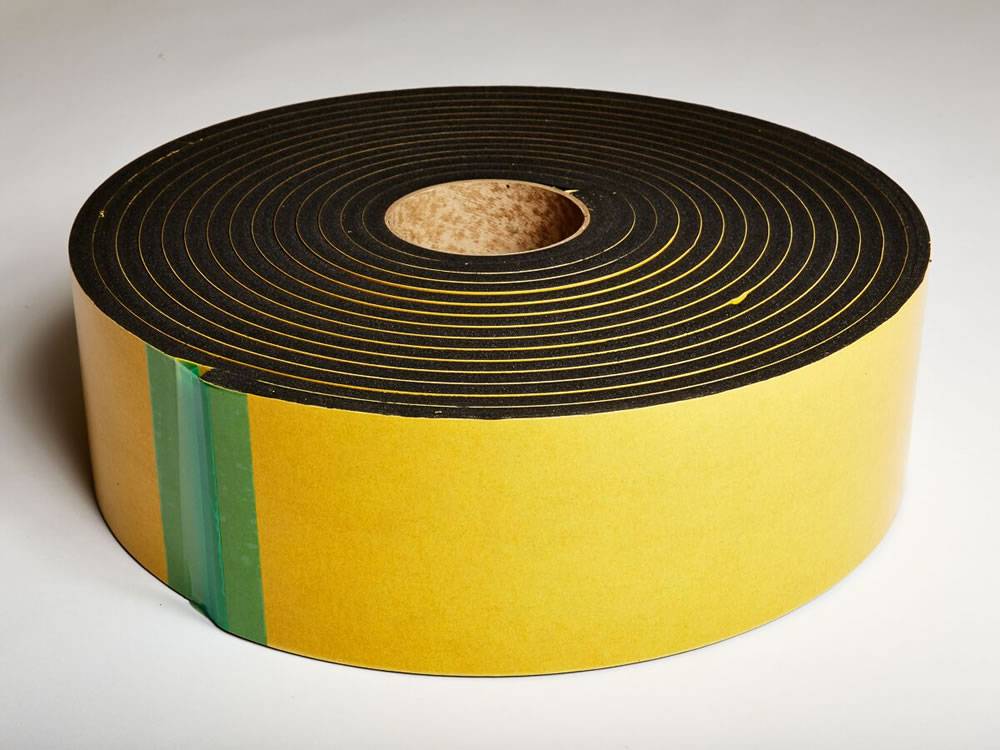

Hush Heavy Duty Isolation Tape - Isolation Tape
Verified by manufacturer 3 months ago
Acoustic isolation tape designed to prevent sound transmission through structures including stud walls and floor joists.
Application
Hush Heavy Duty Isolation Tape is suitable for use under timber/ metal stud walls or on top of floor joists to isolate the structural elements and reduce transmission.
It can be used to improve the acoustic performance of walls, ceilings and floor in a wide range of building types including:
- Houses, apartments and flats
- Schools, colleges and universities
- Offices
- Public and civic buildings
- Hospitals and healthcare buildings
- Hotels
- Industrial buildings
- Retail, bars, cafes and restaurants
Description
Hush Heavy Duty Isolation Tape is an acoustic isolating layer designed to be used under timber/ metal stud walls or on top of floor joists.
Features and benefits:
- Helps to reduce flanking and direct sound transmission through metal and timber stud walls.
- It is used to isolate sole and header plates of timber/ metal stud walls or at the perimeter junctions of Hush Wall Systems or bespoke acoustic wall designs.
- Includes a self-adhesive backing to one side making it very simply and easy to install.
- Helps to achieve compliance with all UK Building Regulations relating to sound transmission in buildings.
General information
Color | Yellow Black |
Finish | Smooth |
Material | Foam |
Shape | Rectangle Guidance for specification option: When unrolled. |
Length | 10000 mm Guidance for specification option: Roll length. |
Width | 50 mm 100 mm |
Height | 8 mm |
Uniclass | |
CAWS | K10/45 Wall lining system (adhesive) K10/35 Wall lining system (metal framing) K10/30 Metal stud K10/15 Lining on timber K11/275 Acoustic separating floor system K10/205 Lining on timber K10/185 Wall lining system (adhesive) K10/175 Wall lining system (metal furrings) K10/165 Wall lining system (metal framing) K10/155 Wall lining system (metal studs) K10/125 Metal stud partition system |
Product range |
Specification data - Resilient layer insulation
Classification data | |
Thickness | 8 mm. |
Width | 50 mm. 100 mm. |
Roll length | 10 m. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Foam |
Literature
Literature type

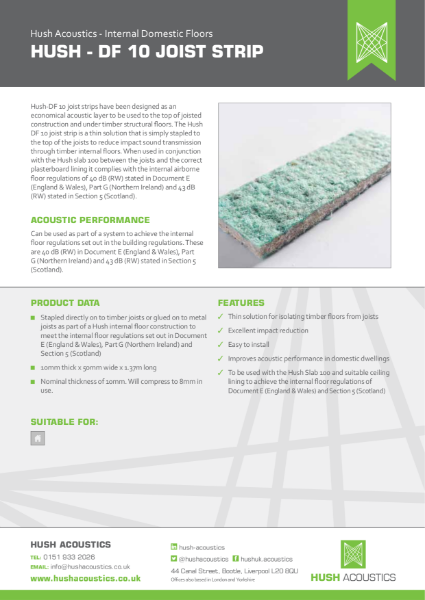

Hush DF 10 Joist Strip
Hush Acoustics Products and Systems Brochure
Case studies
Soundproofing a multi-use residential and commercial building, Ellesmere Port
