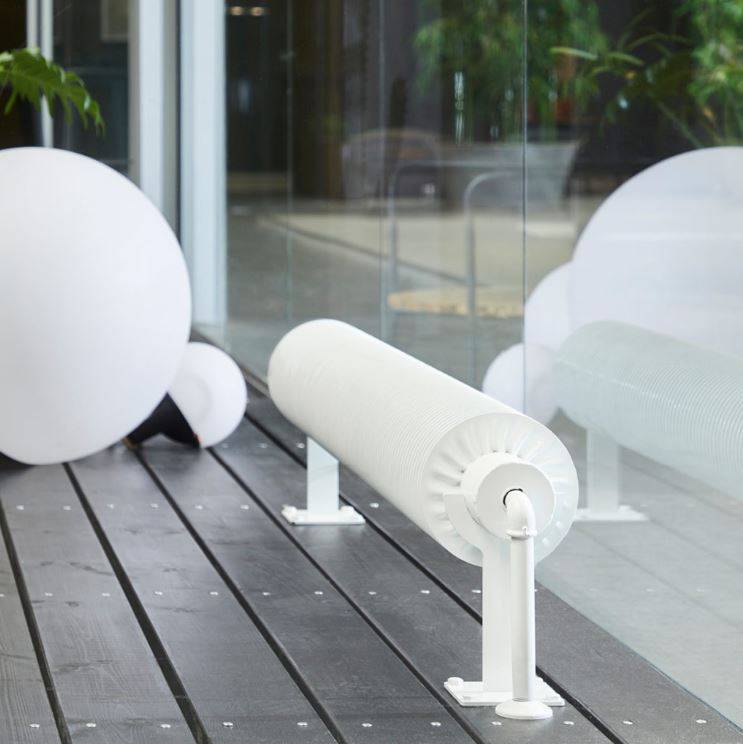

Hudevad Tube - Radiator

Name: Hudevad Tube - Radiator
Brand: Hudevad Radiator Design A/S
SKU: cp4omUzRKcQGHVe4brjYk5

Verified by manufacturer 4 months ago

Tube ∅ 33.7 mm (DN25)

Hudevad Radiator Design A/S

Product certifications:

Independent sustainability assessment
Certificate type

Floor, Freestanding or Wall mounted steel, finned tube radiator.

Jump to:

+44 (0)24 7688 1200 Website

Application

Suitable for heating under glass sections and skylights.

Description

The Tube is a classic finned tube radiator. The radiator has a industrial design made with elements in Swedish quality steel. It has high performance and durability and a simple design. Tube is suitable for heating under glass sections and skylights.

Features and benefits:

Degreasing, corrosion protection, phosphating and powder coating in accordance with DIN EN 12476.
Powder coated in accordance with DIN 55900, EN 442.
Max operating pressure 10 bar in accordance with EN 442.
Minimum 1.5 mm cold-rolled steel according to EN 10305-3 and 10305-5.

General information

Color	White Other
Finish	Powder-coated
Material	Steel
Shape	Other Circle
Length	400 mm 600 mm 800 mm 1000 mm 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm 2200 mm 2400 mm 2600 mm 2800 mm 3000 mm 3200 mm 3400 mm 3600 mm 3800 mm 4000 mm 4200 mm 4400 mm 4600 mm 4800 mm 5000 mm 5200 mm 5600 mm 5800 mm 5400 mm 6000 mm Show more
Width	33.7 mm 48.3 mm 60.3 mm 76.1 mm 88.9 mm 114.3 mm Show more Manufacturer guidance Tube diameter.
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_70_60_36_73 RadiatorsPrimary
CAWS	T90/465 Radiators T90/465 Radiators

SKU Code	316

Specification data - Radiators

Classification data
Standards	To BS EN 442-1 and BS EN 442-2.
Radiator type	Finned tube radiator.
Output	Guidance for specification option: Consult manufacturer and insert requirements.
Finish	Powder-coated. Guidance for specification option: In accordance with DIN 55900, EN 442.
Connections	Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidance All connections 1/2” standard.
Accessories	Not required. Floor brackets. Guidance for specification option: 64125x. Floor brackets must be ordered separately (x in item number indicates tube diameter). Standard wall brackets. Guidance for specification option: 64122x. Wall brackets must be ordered separately (x in item number indicates tube diameter). Only for Tube ø33.7 mm and ø48.3 mm.
Material	To EN 10305-3 and EN 10305-5, 1.5 mm cold-rolled steel.
Tube diameter	33.7 mm. Guidance for specification option: DN25.
Diameter	84 mm. Manufacturer guidance Rib diameter.
Tubes	One. Two. Three.
Colour	White RAL 9016, gloss 70. Guidance for specification option: Standard. Other. Guidance for specification option: Can be painted in other colours. Insert requirements.
TestPressure	13 bar.
Operating pressure (maximum)	To EN 442, 10 bar.
Operating temperature	110°C.
Length	400 mm. 500 mm. 600 mm. 700 mm. 800 mm. 900 mm. 1000 mm. 1100 mm. 1200 mm. 1300 mm. 1400 mm. 1500 mm. 1600 mm. 1800 mm. 2000 mm. 2200 mm. 2400 mm. 2600 mm. 2800 mm. 3000 mm. 3200 mm. 3400 mm. 3600 mm. 3800 mm. 4000 mm. 4200 mm. 4400 mm. 4600 mm. 4800 mm. 5000 mm. 5200 mm. 5400 mm. 5600 mm. 5800 mm. 6000 mm.
Tapping configuration	Tapping code 10. Guidance for specification option: Tapping type: ABCD. Model: KR, KR2, KR3, Freestanding. Manufacturer guidance See manufacturer literature for more information.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Latvia
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
