Hudevad Fionia Vertical - Radiator

Verified by manufacturer 1 month ago

Type 11 Radiator

Hudevad Radiator Design A/S Variant:
Third party certifications:
  • DoP

    DoP

    Certificate type

  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

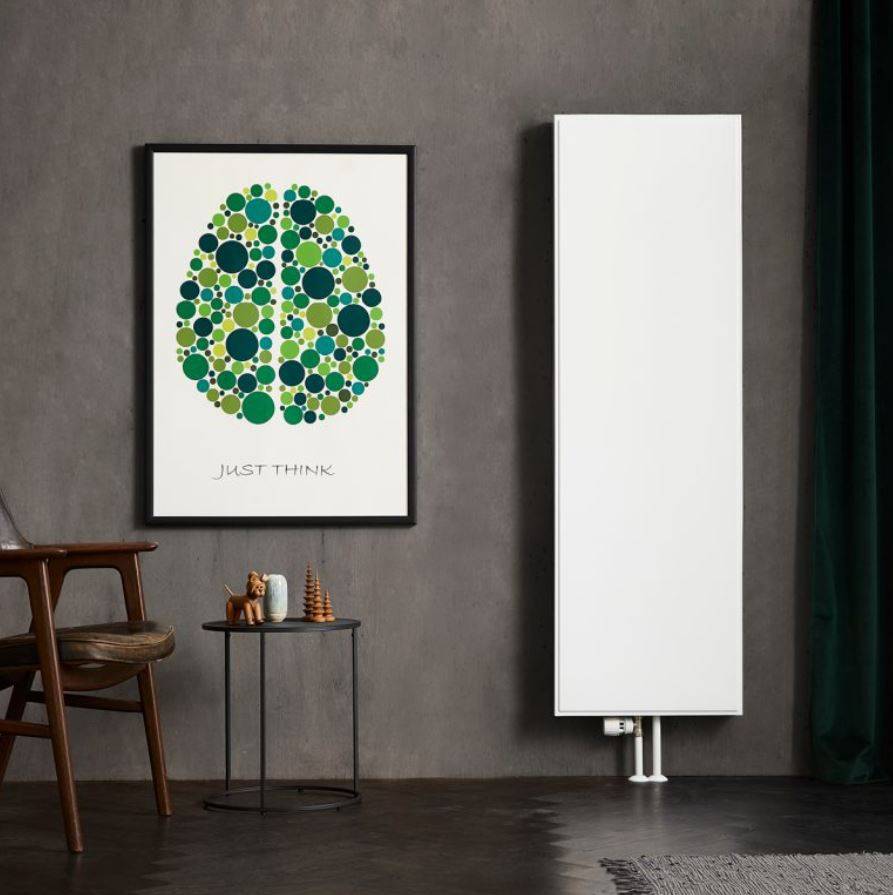

Wall mounted radiator in steel with fixed casing and convectors.

Jump to:
+44 (0)24 7688 1200 Website

Application

Suitable choice for large halls or areas that are difficult to heat.

Description

Fionia Vertical has a 2 mm thick front plate with the characteristic Hudevad edge, closed sides and can be fitted with a removable grille with angled slats, so convectors can't be seen inside. The grille is always recessed in the top of the radiator so that it is flush with the radiator edge.


Features and benefits:

  • Pre-treatment by degreasing and steel phosphating.
  • Powder coated in accordance with DIN 55900, EN 442.
  • Max operating pressure 10 bar in accordance with EN 442.
  • 2 mm steel casing according to EN 10051.
  • Steel panel (heating element) according to EN 442.

General information

Color

White

Guidance for specification option:

White RAL 9016 70% Gloss.

Other

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

310 mm

410 mm

510 mm

610 mm

710 mm

Width

64 mm

79 mm

102 mm

Height

1620 mm

1820 mm

2020 mm

Manufacturer guidance

Availability of heights varies depending of chosen tapping configuration and width.

Warranty description

Ten year

Uniclass

Pr_70_60_36_73 RadiatorsPrimary

CAWS

T90/465 Radiators

T90/465 Radiators

Specification data - Radiators

Standards

To BS EN 442-1 and BS EN 442-2.

Radiator type

Single convector panel.

Guidance for specification option:

Type 11.

Output

Guidance for specification option:

Consult manufacturer and insert requirements.

Finish

Powder-coated.

Guidance for specification option:

 In accordance with DIN 55900, EN 442.

Connections

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

All connections 1/2” standard.

Accessories

Not required.

Danfoss TRV Head.

Guidance for specification option:

Required for Tapping Code 35,36,39 and 40.

Other.

Guidance for specification option:

Hudevad recommends use of Danfoss accessories when fitting the radiator. For further accessories please refer to the Hudevad Pricelist.

Casing

To EN 10051, 2.00 mm steel.

Heating element

To EN 442, steel panel.

Colour

White RAL 9016, gloss 70.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Can be painted in other colours. Insert requirements.

TestPressure

13 bar.

Operating pressure (maximum)

To EN 442, 10 bar.

Operating temperature

110°C.

Height

1620 mm.

Guidance for specification option:

H1: 1620 mm.

H2: 1600 mm.

1820 mm.

Guidance for specification option:

H1: 1820 mm.

H2: 1800 mm.

2020 mm.

Guidance for specification option:

H1: 2020 mm.

H2: 2000 mm.

Manufacturer guidance

Availability of heights varies depending of chosen tapping configuration and width.

Depth

64 mm.

Length

310 mm.

Guidance for specification option:

L1: 310 mm.

L2: 300 mm.

410 mm.

Guidance for specification option:

L1: 410 mm.

L2: 400 mm.

510 mm.

Guidance for specification option:

L1: 510 mm.

L2: 500 mm.

610 mm.

Guidance for specification option:

L1: 610 mm.

L2: 600 mm.

710 mm.

Guidance for specification option:

L1: 710 mm.

L2: 700 mm.

Tapping configuration

Tapping code 32.

Guidance for specification option:

Tapping type: Bottom tapping's, flow left.

Tapping code 34.

Guidance for specification option:

Tapping type: Top tapping's, flow left. Note: Top tapping is not recommended for flows below 30 L/h.

Tapping code 36.

Guidance for specification option:

Tapping type: E/F valve left.

Danfoss TRV Head required.

Tapping code 38.

Guidance for specification option:

Tapping type: Hidden tapping's, no valve, flow left.

Tapping code 40.

Guidance for specification option:

Tapping type: Hidden tapping's, with valve, flow left.

Danfoss TRV Head required.

Manufacturer guidance

See manufacturers literature for more information.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

DoP

DoP

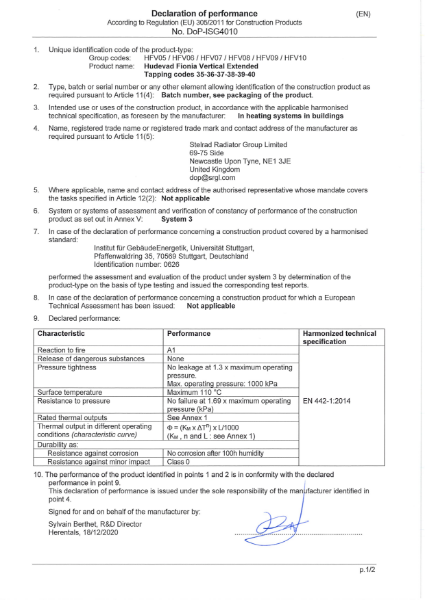

Hudevad Fionia Vertical Tapping Code 31- 34 DoP

DoP

DoP

Hudevad Fionia Vertical Tapping Code 35-40 DoP

Independent sustainability assessment

Independent sustainability assessment

Green Building Council Denmark
