Hudevad SC Lowline - Radiator

Verified by manufacturer 1 month ago

Type 14 Radiator

Hudevad Radiator Design A/S Variant:
Third party certifications:
  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

  • DoP

    DoP

    Certificate type

Floor or wall-mounted steel element radiator in open design.

Jump to:
+44 (0)24 7688 1200 Website

Application

Suitable choice for the interior of any room. Suitable for placement in front of glazing and in corridors where the light is in focus.

Description

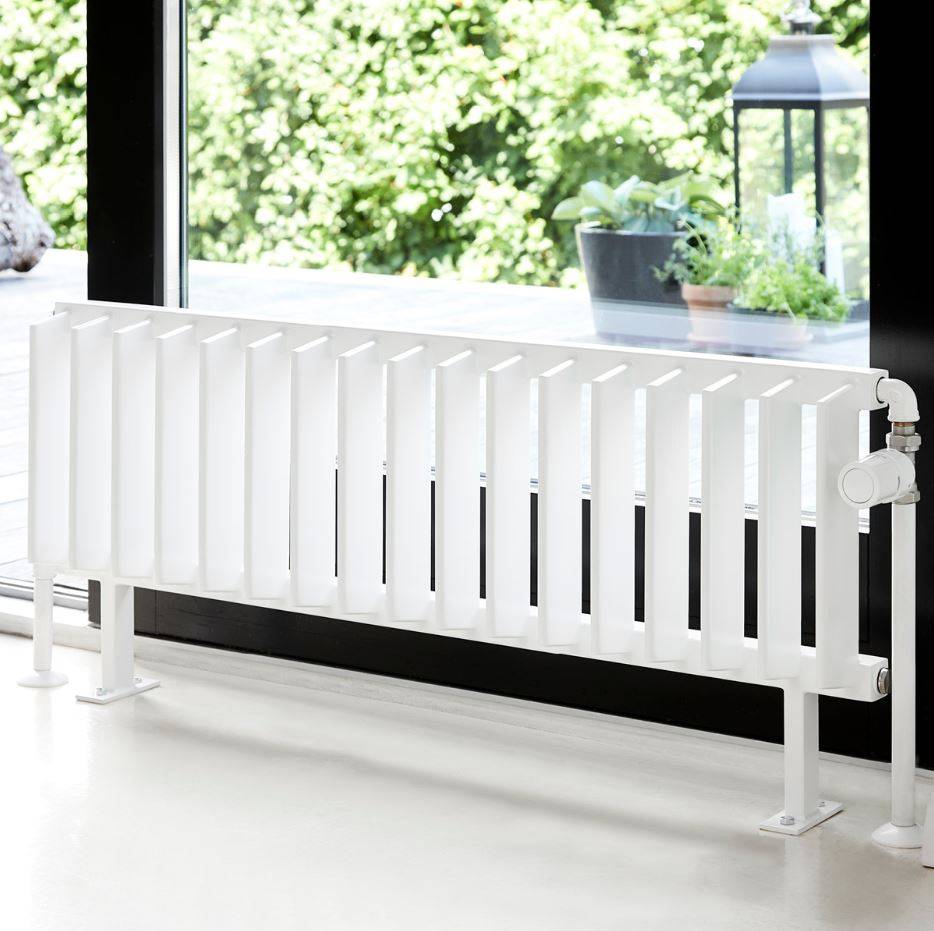

The SC Lowline is a column radiator with narrow elements that are placed vertically on top and bottom pipes in either single or double row with 40 or 60 mm distance. Suitable for placement in front of glazing and in corridors where the light is in focus. SC is distinctive and discreet at the same time and can be customized in many ways.

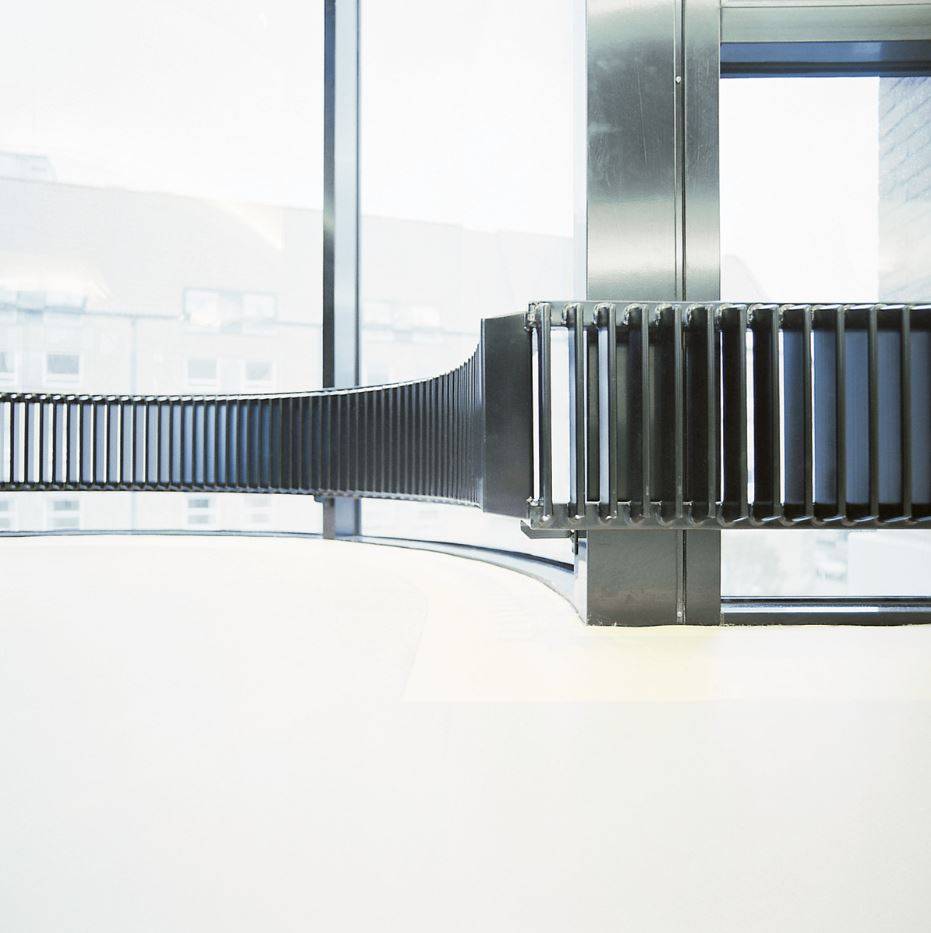

The radiator has a high-end and timeless design that can fit in any environment and can be made curved or angled. The radiator doesn’t block the light, as its flat elements are spaced and angled for optimal effect and ’air’.


Features and benefits:

  • Pre-treatment by alkaline degreasing and a layer of zirconia as conversion coating.
  • Powder coated in accordance with DIN 55900, EN 442.
  • Max operating pressure 7.7 bar in accordance with EN 442.
  • Top and bottom tubes: Square steel tube 35 x 35 x 2.5 mm to EN 10305-5.
  • Flat tube elements: Steel tube 70 x 11 x 1.9 mm to EN 10305-5.

General information

Color

White

Guidance for specification option:

White RAL 9016 70% Gloss.

Other

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Other

Length

400 mm

460 mm

480 mm

560 mm

580 mm

Show more

Width

98 mm

160 mm

Height

300 mm

Warranty description

Ten year

Uniclass

Pr_70_60_36_73 RadiatorsPrimary

CAWS

T90/465 Radiators

T90/465 Radiators

Specification data - Radiators

Standards

To BS EN 442-1 and BS EN 442-2.

Radiator type

Single steel column.

Output

Guidance for specification option:

Consult manufacturer and insert requirements.

Finish

Powder-coated.

Guidance for specification option:

In accordance with DIN 55900, EN 442.

Connections

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

All connections 1/2” standard.

Accessories

Not required.

Bracket SB20.

Bracket SB82.

Spacer.

Fixed feet.

Top and bottom rail

To EN 10305-5, square steel tube.

Guidance for specification option:

35 x 35 x 2.5 mm.

Manufacturer guidance

Top and bottom tube.

Tube

To EN 10305-5, steel tube.

Guidance for specification option:

70 x 11 x 1.9 mm.

Manufacturer guidance

Flat tube elements.

Colour

White RAL 9016, gloss 70.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Can be painted in other colours. Insert requirements.

TestPressure

10 bar.

Operating pressure (maximum)

To EN 442, 7.7 bar.

Operating temperature

95°C.

Height

300 mm.

Depth

98 mm.

Length

400 mm.

460 mm.

480 mm.

560 mm.

580 mm.

Show more

Spacing

40 mm.

Tapping configuration

Tapping code 10.

Guidance for specification option:

Tapping type: ABCD.

Tapping code 11.

Guidance for specification option:

Tapping type: FF built-in valve (6 tap right).

Tapping code 12.

Guidance for specification option:

Tapping type: EE built-in valve (6 tap left).

Tapping code 15.

Guidance for specification option:

Tapping type: E/F, no valve.

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Denmark

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

Independent sustainability assessment

Independent sustainability assessment

Green Building Council Denmark

DoP

DoP

Hudevad SCE 40/60 & SCD 40/60 Lowline DoP

Literature

Hudevad SC Lowline

Hudevad SC Lowline
