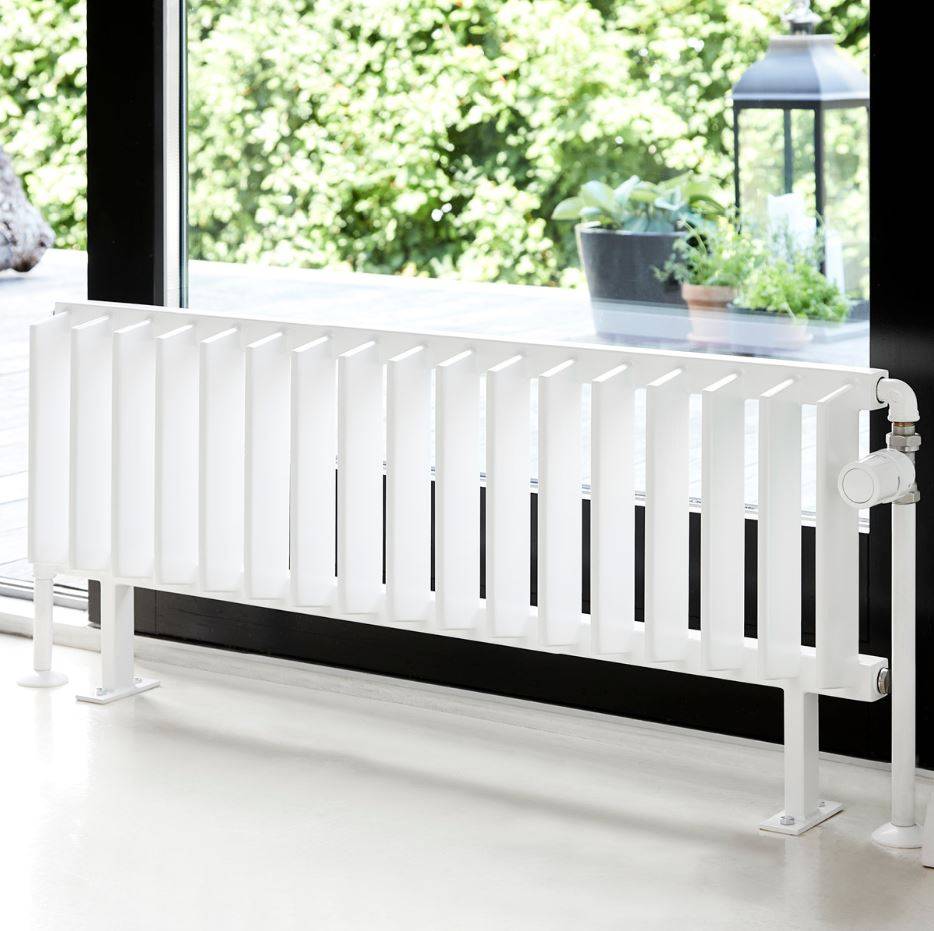

Hudevad SC Lowline - Radiator

Name: Hudevad SC Lowline - Radiator
Brand: Hudevad Radiator Design A/S
SKU: uoMBpwhK695hLy1LTSvFfp

Verified by manufacturer 6 months ago

Type 14 Radiator

Hudevad Radiator Design A/S

Third party certifications:

Independent sustainability assessment
Certificate type

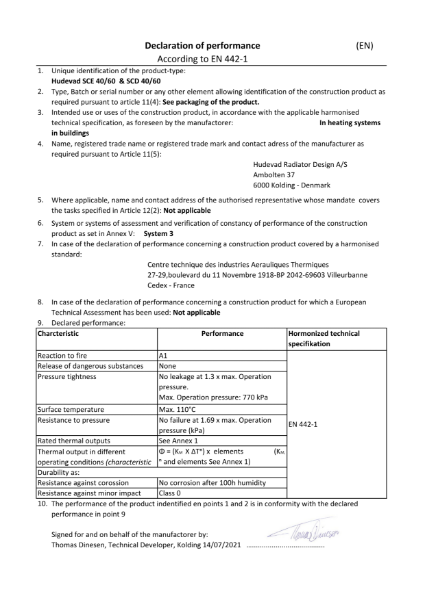

DoP
Certificate type

Floor or wall-mounted steel element radiator in open design.

Jump to:

+44 (0)24 7688 1200 Website

Application

Suitable choice for the interior of any room. Suitable for placement in front of glazing and in corridors where the light is in focus.

Description

The SC Lowline is a column radiator with narrow elements that are placed vertically on top and bottom pipes in either single or double row with 40 or 60 mm distance. Suitable for placement in front of glazing and in corridors where the light is in focus. SC is distinctive and discreet at the same time and can be customized in many ways.

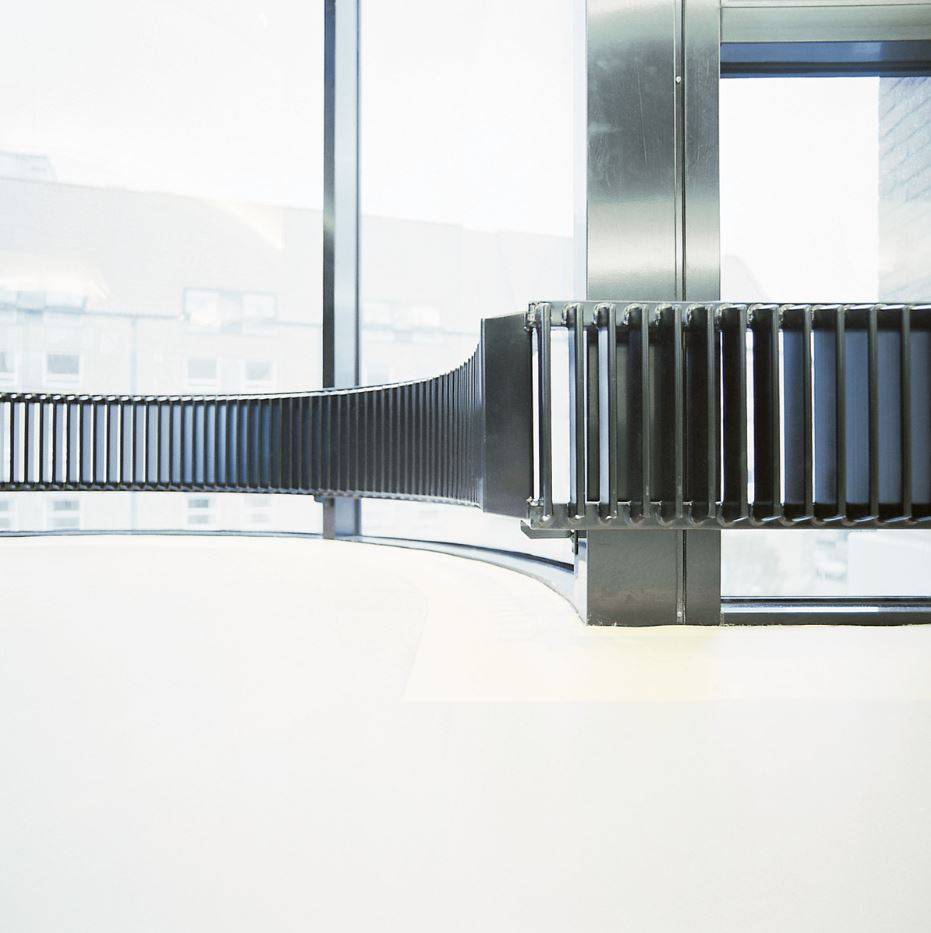

The radiator has a high-end and timeless design that can fit in any environment and can be made curved or angled. The radiator doesn’t block the light, as its flat elements are spaced and angled for optimal effect and ’air’.

Features and benefits:

Pre-treatment by alkaline degreasing and a layer of zirconia as conversion coating.
Powder coated in accordance with DIN 55900, EN 442.
Max operating pressure 7.7 bar in accordance with EN 442.
Top and bottom tubes: Square steel tube 35 x 35 x 2.5 mm to EN 10305-5.
Flat tube elements: Steel tube 70 x 11 x 1.9 mm to EN 10305-5.

General information

Color	White Guidance for specification option: White RAL 9016 70% Gloss. Other
Finish	Powder-coated
Material	Steel
Shape	Rectangle Other
Length	400 mm 460 mm 480 mm 560 mm 580 mm 640 mm 700 mm 720 mm 800 mm 820 mm 880 mm 940 mm 960 mm 1040 mm 1060 mm 1120 mm 1180 mm 1200 mm 1280 mm Show more
Width	98 mm 160 mm
Height	300 mm
Warranty description	Ten year

Uniclass	Pr_70_60_36_73 RadiatorsPrimary
CAWS	T90/465 Radiators T90/465 Radiators

Specification data - Radiators

Standards	To BS EN 442-1 and BS EN 442-2.
Radiator type	Single steel column.
Output	Guidance for specification option: Consult manufacturer and insert requirements.
Finish	Powder-coated. Guidance for specification option: In accordance with DIN 55900, EN 442.
Connections	Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidance All connections 1/2” standard.
Accessories	Not required. Bracket SB20. Bracket SB82. Spacer. Fixed feet.

Top and bottom rail	To EN 10305-5, square steel tube. Guidance for specification option: 35 x 35 x 2.5 mm. Manufacturer guidance Top and bottom tube.
Tube	To EN 10305-5, steel tube. Guidance for specification option: 70 x 11 x 1.9 mm. Manufacturer guidance Flat tube elements.
Colour	White RAL 9016, gloss 70. Guidance for specification option: Standard. Other. Guidance for specification option: Can be painted in other colours. Insert requirements.
TestPressure	10 bar.
Operating pressure (maximum)	To EN 442, 7.7 bar.
Operating temperature	95°C.
Height	300 mm.
Depth	98 mm.
Length	400 mm. 460 mm. 480 mm. 560 mm. 580 mm. 640 mm. 700 mm. 720 mm. 800 mm. 820 mm. 880 mm. 940 mm. 960 mm. 1040 mm. 1060 mm. 1120 mm. 1180 mm. 1200 mm. 1280 mm. Show more
Spacing	40 mm.
Tapping configuration	Tapping code 10. Guidance for specification option: Tapping type: ABCD. Tapping code 11. Guidance for specification option: Tapping type: FF built-in valve (6 tap right). Tapping code 12. Guidance for specification option: Tapping type: EE built-in valve (6 tap left). Tapping code 15. Guidance for specification option: Tapping type: E/F, no valve.

Sustainability data

Contains Red List materials	No
Country of material origin	Sweden
Country of product manufacture	Denmark
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
