Hudevad SC Horizontal - Radiator
Verified by manufacturer 6 days ago
Type 14 Radiator
Type 14 Radiator
Independent sustainability assessment
Certificate type
DoP
Certificate type
Wall or floor-mounted steel element radiator in open design.
Application
Suitable choice for the interior of any room. Suitable for placement in front of glazing and in corridors where the light is in focus.
Description
The Hudevad SC Horizontal is a column radiator with narrow elements that are placed vertically on top and bottom pipes in either single or double row with 40 or 60 mm distance. Suitable for placement in front of glazing and in corridors where the light is in focus.
Features and benefits:
- Pre-treatment by alkaline degreasing and a layer of zirconia as conversion coating.
- Powder coated in accordance with DIN 55900, EN 442.
- Max operating pressure 7.7 bar in accordance with EN 442.
- Headers: square steel tube 35 x 35 x 2.5 mm to EN 10305-5.
- Flat tube elements: steel tube 70 x 11 x 1.9 mm to EN 1030.
General information
Color | White Guidance for specification option: White RAL 9016 70% Gloss. Other |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 400 mm 460 mm 480 mm 560 mm 580 mm |
Width | 98 mm 160 mm |
Height | 400 mm 500 mm 600 mm 700 mm 900 mm Manufacturer guidanceFor height 300 mm please see SC Lowline. |
Warranty description | Ten year |
Uniclass | |
CAWS | T90/465 Radiators T90/465 Radiators |
Specification data - Radiators
Standards | To BS EN 442-1 and BS EN 442-2. |
Radiator type | Single steel column. |
Output | Guidance for specification option: Consult manufacturer and insert requirements. |
Finish | Powder-coated.Guidance for specification option: In accordance with DIN 55900, EN 442. |
Connections | Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceAll connections 1/2” standard. |
Accessories | Not required.Bracket SB20.Bracket SB82.Spacer.Fixed feet. |
Header | To EN 10305-5, square steel tube. Guidance for specification option: 35 x 35 x 2.5 mm. |
Tube | To EN 10305-5, steel tube. Guidance for specification option: 70 x 11 x 1.9 mm. Manufacturer guidanceFlat tube elements. |
Colour | White RAL 9016, gloss 70. Guidance for specification option: Standard. Other. Guidance for specification option: Can be painted in other colours. Insert requirements. |
TestPressure | 10 bar. |
Operating pressure (maximum) | To EN 442, 7.7 bar. |
Operating temperature | 95°C. |
Height | 400 mm. 500 mm. 600 mm. 700 mm. 900 mm. Manufacturer guidanceFor height 300 mm please see SC Lowline. |
Depth | 98 mm. |
Length | 400 mm. 460 mm. 480 mm. 560 mm. 580 mm. |
Spacing | 40 mm. |
Tapping configuration | Tapping code 10. Guidance for specification option: Tapping type: ABCD. Tapping code 11. Guidance for specification option: Tapping type: FF built-in valve (6 tap right). Tapping code 12. Guidance for specification option: Tapping type: EE built-in valve (6 tap left). Tapping code 15. Guidance for specification option: Tapping type: E/F, no valve. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Denmark |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Independent sustainability assessment
Green Building Council Denmark

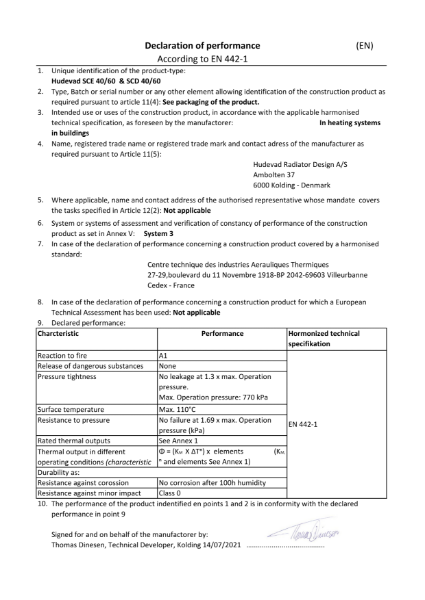

DoP
Hudevad SCE 40/60 & SCD 40/60 Horizontal DoP
Literature
Hudevad SC Horizontal
