Hudevad Protector - Radiator Wall
Verified by manufacturer 6 months ago

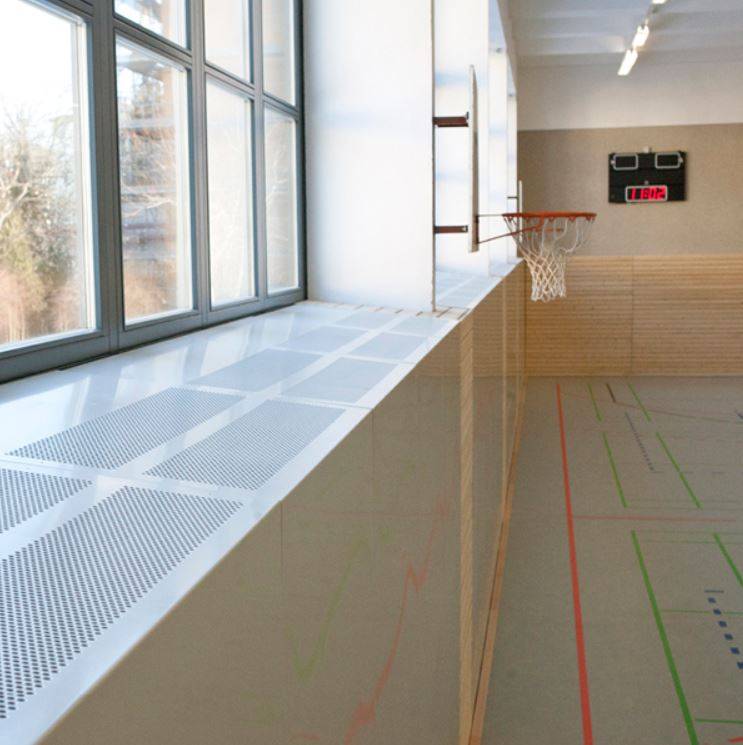

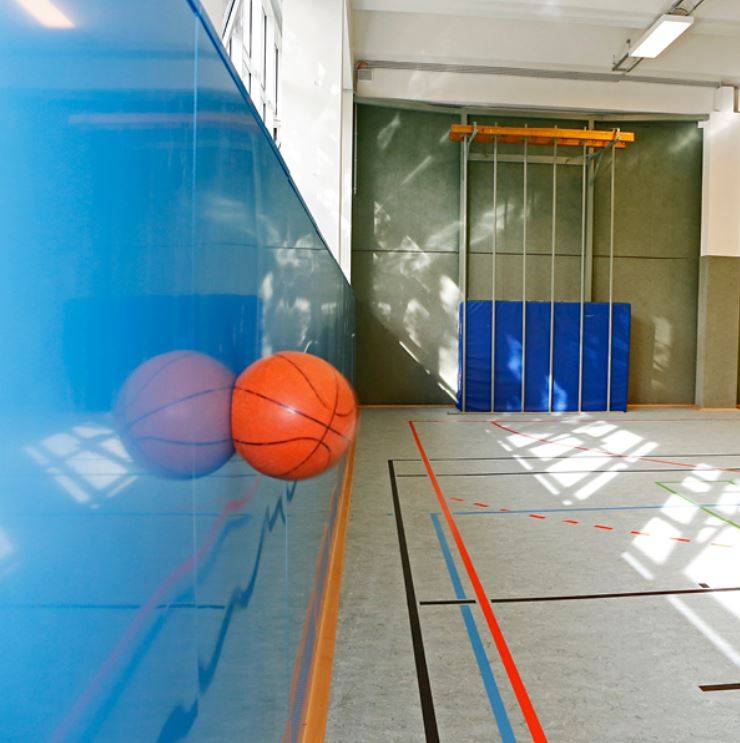

Steel radiator wall often used in sports facilities.
Application
Suitable for use in sports facilities, sports arenas and gyms.
Description
The Protector is a radiator wall often used in sports facilities, sports arenas and gyms and easily handles challenges such as statics and lack of space. The Protector is made from 1-meter-wide modules and are robust and easy to integrate due to the supplied mounting frame that allows access to the radiators behind. Can also be supplied with storage solutions.
Features and benefits:
- Pre-treatment by degreasing and passivation (radiator and casing).
- Powder coated in accordance with DIN 55900, EN 442.
- Max operating pressure 10 bar in accordance with EN 442.
- Front and upper cover plate: 2 mm steel plate (S235).
General information
Color | Other Guidance for specification option: RAL colour to suit specification. |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 1000 mm Bespoke Guidance for specification option: Other sizes are available upon request. |
Width | 260 mm Bespoke Guidance for specification option: Other sizes are available upon request. |
Height | 2000 mm 2800 mm Bespoke Guidance for specification option: Other sizes are available upon request. |
Warranty description | Ten year |
Uniclass | |
CAWS | T90/465 Radiators T90/465 Radiators |
Specification data - Radiators
Standards | To BS EN 442-1 and BS EN 442-2. |
Radiator type | Radiator wall. |
Output | Guidance for specification option: Consult manufacturer and insert requirements. |
Finish | Powder-coated.Guidance for specification option: In accordance with DIN 55900, EN 442. |
Connections | Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceAll connections 1/2” standard. |
Accessories | Guidance for specification option: Hatch for athletics equipment or other options for front plates with special dimensions are available upon request. Please contact Hudevad Radiator Design for information. |
Coverplate | 2 mm steel plate (S235). |
Colour | RAL. Guidance for specification option: Powder-coated in RAL colour to suit specification, according to DIN 55900. Consult manufacturer and insert requirements. |
TestPressure | 13 bar. |
Operating pressure (maximum) | To EN 442, 10 bar. |
Operating temperature | 95°C. |
Height | Guidance for specification option: 2000—2800 mm above floor level, additional height for angled top part. Other sizes are available upon request. Consult manufacturer and insert requirements. Manufacturer guidanceFront cover height. |
Depth | 260 mm. Other. Guidance for specification option: Other sizes are available upon request, consult manufacturer and insert requirements. |
Length | 1000 mm. Other. Guidance for specification option: Other sizes are available upon request, consult manufacturer and insert requirements. Manufacturer guidanceLength per section. |
FrameSize | 15/35 x 15/35 x 2 mm. Guidance for specification option: Rectangular profile tubes. Manufacturer guidanceFrame size. |
Frame finish | To DIN 18032-3, 1997-04, powder-coated in white RAL 9016. |
Wall brackets | 5 mm galvanized steel. |
Tapping configuration | Standard ABCD. Manufacturer guidanceSee manufacturer literature for more information. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Denmark |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature

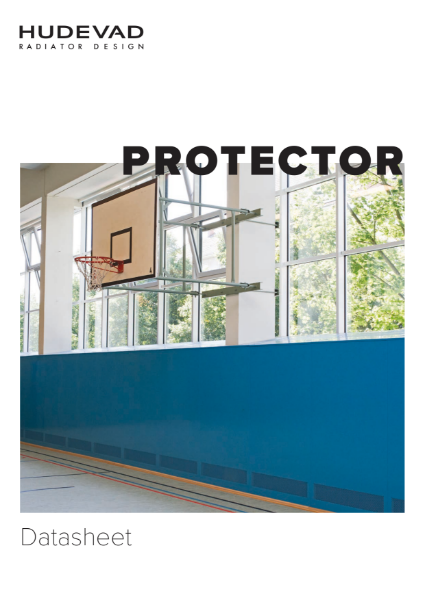

Hudevad Protector
