Hudevad P5 Vertical - Radiator

Name: Hudevad P5 Vertical - Radiator
Brand: Hudevad Radiator Design A/S
SKU: nMJtG2FUyiRCYmDrswnvQQ

Verified by manufacturer 1 month ago

Type 11 Radiator

Hudevad Radiator Design A/S

Third party certifications:

Independent sustainability assessment
Certificate type

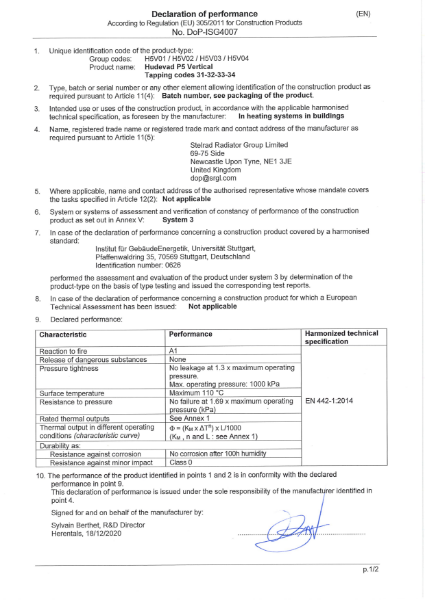

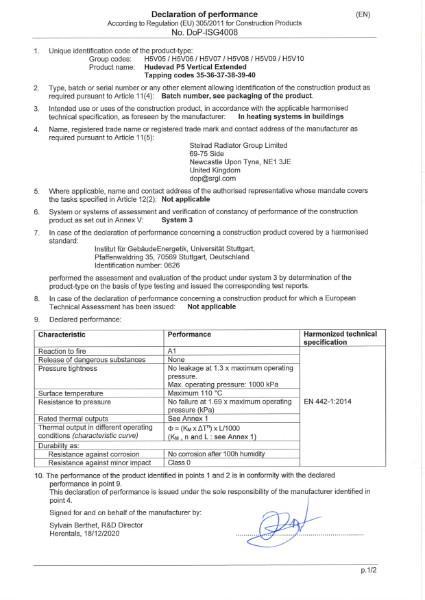

DoP
Certificate type

Wall mounted radiator in steel with fixed casing and convectors.

Jump to:

+44 (0)24 7688 1200 Website

Application

Suitable choice for the interior of any room.

Description

The P5 Vertical are all made with 2 mm thick front plate with the characteristic Hudevad edge. The deeper models of the P5 Vertical have closed sides with a streamlined recess that gives the radiator a completely unique look. P5 Vertical can be used anywhere.

Features and benefits:

Pre-treatment by degreasing and steel phosphating.
Powder coated in accordance with DIN 55900, EN 442.
Max operating pressure 10 bar in accordance with EN 442.
2 mm steel casing according to EN 10051.
Steel panel (heating element) according to EN 442.

General information

Color	White Guidance for specification option: White RAL 9016 70% Gloss. Other
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	355 mm 455 mm 555 mm 655 mm 755 mm
Width	50 mm 79 mm 102 mm
Height	1620 mm 1820 mm 2020 mm
Warranty description	Ten year

Uniclass	Pr_70_60_36_73 RadiatorsPrimary
CAWS	T90/465 Radiators T90/465 Radiators

Specification data - Radiators

Standards	To BS EN 442-1 and BS EN 442-2.
Radiator type	Single convector panel. Guidance for specification option: Type 11.
Output	Guidance for specification option: Consult manufacturer and insert requirements.
Finish	Powder-coated. Guidance for specification option: In accordance with DIN 55900, EN 442.
Connections	Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidance All connections 1/2” standard.
Accessories	Guidance for specification option: Hudevad recommends use of Danfoss accessories when fitting the radiator. For further accessories please refer to the Hudevad Pricelist.

Casing	To EN 10051, 2.00 mm steel.
Heating element	To EN 442, steel panel.
Colour	White RAL 9016, gloss 70. Guidance for specification option: Standard. Other. Guidance for specification option: Can be painted in other colours. Insert requirements.
TestPressure	13 bar.
Operating pressure (maximum)	To EN 442, 10 bar.
Operating temperature	110°C.
Height	1620 mm. Guidance for specification option: H1: 1620 mm. H2: 1600 mm. 1820 mm. Guidance for specification option: H1: 1820 mm. H2: 1800 mm. 2020 mm. Guidance for specification option: H1: 2020 mm. H2: 2000 mm. Manufacturer guidance Availability of height varies depending of chosen tapping configuration selected.
Depth	50 mm.
Width	355 mm. Guidance for specification option: L1: 355 mm. L2: 300 mm. 455 mm. Guidance for specification option: L1: 455 mm. L2: 400 mm. 555 mm. Guidance for specification option: L1: 555 mm. L2: 500 mm. 655 mm. Guidance for specification option: L1: 655 mm. L2: 600 mm. 755 mm. Guidance for specification option: L1: 755 mm. L2: 700 mm.
Tapping configuration	Tapping code 32. Guidance for specification option: Tapping type: Bottom tapping's, flow left. H1: 1620 mm, 1820 mm, 2020 mm. H2: 1600 mm, 1800 mm, 2000 mm. Tapping code 34. Guidance for specification option: Tapping type: Top tapping's, flow left. Note: Top tapping is not recommended for flows below 30 L/h. H1: 1620 mm, 1820 mm, 2020 mm. H2: 1600 mm, 1800 mm, 2000 mm. Tapping code 36. Guidance for specification option: Tapping type: E/F valve left. H1: 1820 mm, 2020 mm. H2: 1600 mm, 1800 mm. Tapping code 38. Guidance for specification option: Tapping type: Hidden tapping's, no valve, flow left. Tapping code 40. Guidance for specification option: Tapping type: Hidden tapping's, with valve, flow left. H1: 1820 mm, 2020 mm. H2: 1600 mm, 1800 mm. Manufacturer guidance See manufacturers literature for more information.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	99 %
