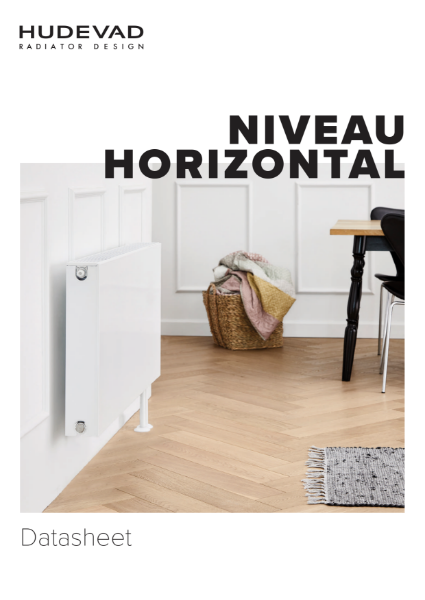

Hudevad Niveau Horizontal - Radiator

Name: Hudevad Niveau Horizontal - Radiator
Brand: Hudevad Radiator Design A/S
SKU: xnUSE4TQzbhiv9vVb5QXp2

Verified by manufacturer 2 months ago

Type 11 Radiator

Hudevad Radiator Design A/S

A flat front compact horizontal radiator.

Jump to:

+44 (0)24 7688 1200 Website

Application

Suitable for the interior of any room. Can be used in commercial settings, private homes and office spaces.

Description

A flat panel radiator with closed sides and top grille that fits into any modern environment.

Features and benefits:

Easy to clean.
Available in wall or floor mounting.
Available in four different types.
Ten-year warranty.

General information

Color	White Guidance for specification option: White RAL 9016, gloss 70. Other
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	300 mm 400 mm 500 mm 600 mm 700 mm 800 mm 900 mm 1000 mm 1100 mm 1200 mm 1300 mm 1400 mm 1500 mm 1600 mm 1700 mm 1800 mm 1900 mm 2000 mm 2100 mm 2200 mm 2300 mm 2400 mm 2500 mm 2600 mm 2700 mm 2800 mm 3000 mm Show more
Width	63 mm 79 mm 102 mm 160 mm
Height	300 mm 400 mm 500 mm 600 mm 700 mm 900 mm Show more
Warranty description	Ten year

Uniclass	Pr_70_60_36_73 RadiatorsPrimary
CAWS	T90/465 Radiators T90/465 Radiators

Specification data - Radiators

Standards	To BS EN 442-1 and BS EN 442-2.
Radiator type	Single convector panel.
Output	Guidance for specification option: Consult manufacturer's literature and insert requirements.
Finish	Powder-coated. Guidance for specification option: In accordance with DIN 55900, BS EN 442.
Connections	Guidance for specification option: All connections 1/2” standard (adapters available). Tapping Codes 13 and 14 are Euroconus connections and may require adaptors in the UK. Consult manufacturer.
Accessories	Mounting feet. Radiator feet. Danfoss RA-N valve. Not required.

Heating element	To BS EN 442, steel panel.
Colour	White RAL 9016, gloss 70. Guidance for specification option: Standard. Other. Guidance for specification option: Can be painted in other colours. Insert requirements.
TestPressure	13 bar.
Operating pressure (maximum)	To BS EN 442, 10 bar.
Operating temperature	110°C.
Height	300 mm. Guidance for specification option: Water content: 1.89 L/m. Weight: 11.9 kg. 400 mm. Guidance for specification option: Water content: 2.34 L/m. Weight: 16.1 kg. 500 mm. Guidance for specification option: Water content: 2.80 L/m. Weight: 20.4 kg. 600 mm. Guidance for specification option: Water content: 3.25 L/m. Weight: 24.7 kg. 700 mm. Guidance for specification option: Water content: 3.77 L/m. Weight: 28.9 kg. 900 mm. Guidance for specification option: Water content: 4.80 L/m. Weight: 37.4 kg. Show more Manufacturer guidance Consult manufacturer's literature for details.
Length	400–3000 mm. Guidance for specification option: In increments of 100 mm. Consult manufacturer's literature and insert requirements. Manufacturer guidance Availability of lengths varies depending of chosen tapping configuration and height.
Depth	63 mm.
Tapping configuration	Tapping code 10. Guidance for specification option: Tapping type: ABCD (4 tap). Tapping code 11. Guidance for specification option: Tapping type: FF built-in valve (6 tap right). Tapping code 12. Guidance for specification option: Tapping type: EE built-in valve (6 tap right). Tapping code 13. Guidance for specification option: Tapping type: Center tap R (8 taps right). Tapping code 14. Guidance for specification option: Tapping type: Center tap L (8 taps left). Tapping code 66. Guidance for specification option: Tapping type: E/F with valve right. Tapping code 67. Guidance for specification option: Tapping type: E/F with valve left. Show more

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	95 %
