Hudevad LST Vertical - Radiator
Verified by manufacturer 3 months ago
Wall and floor mounted steel, safety radiator.
Application
Suitable for use in public buildings.
Description

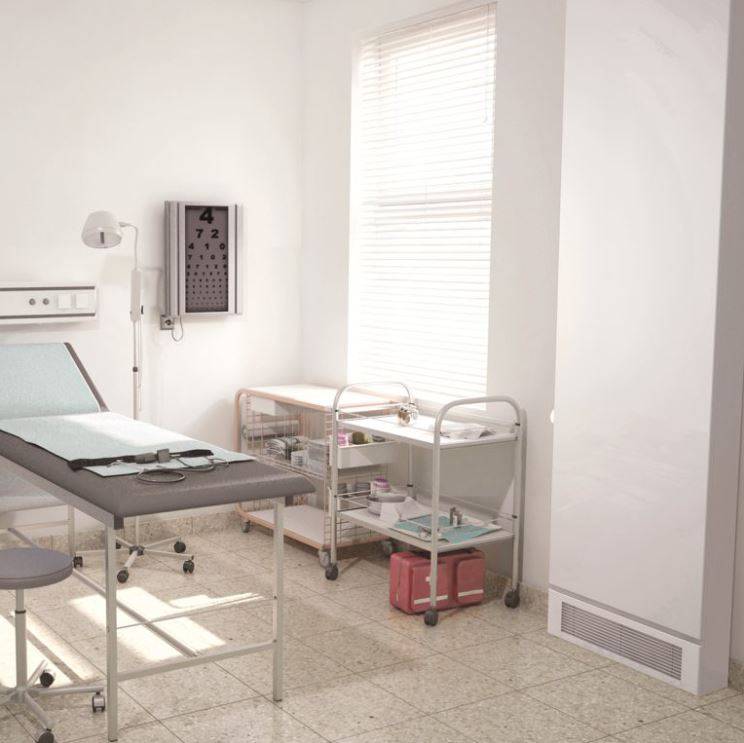

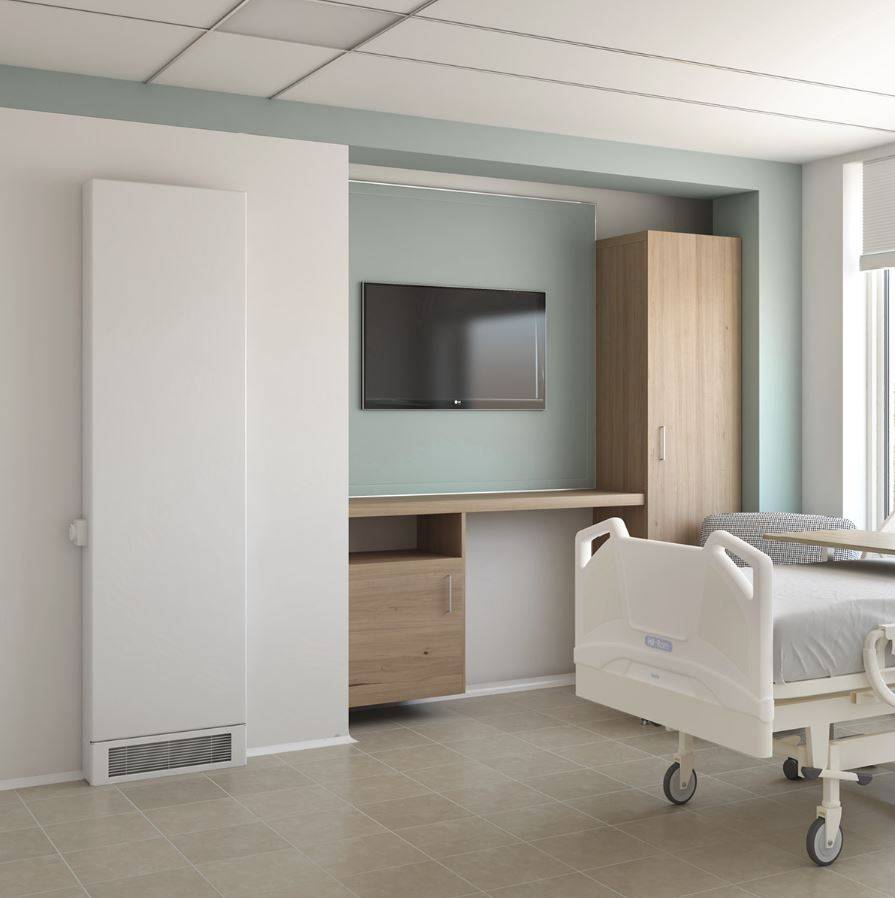

Hudevad LST I Plus Vertical is a safety radiator that is often used in public buildings in countries where the water flow temperature is high. The radiator is simple and quick to install. The cabinet is fitted with safety brackets to prevent unauthorized access to the emitter, which is encapsulated inside.
Features and benefits:
- Pre-treatment by degreasing and steel phosphating.
- Powder coated in accordance with DIN 55900, EN 442.
- Max operating pressure 10 bar in accordance with EN 442.
- Radiator panels, according to EN 10051.
- Heating element, steel panel according to EN 442.
General information
Color | White |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 560 mm 660 mm 760 mm |
Width | 132 mm |
Height | 2110 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | T90/465 Radiators T90/465 Radiators |
Specification data - Radiators
Standards | To BS EN 442-1 and BS EN 442-2. |
Radiator type | Double panel double convector.Manufacturer guidanceType 22. |
Output | Guidance for specification option: Consult manufacturer and insert requirements. |
Finish | Powder-coated.Guidance for specification option: In accordance with DIN 55900, EN 442. |
Connections | Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceAll connections 1/2” standard. |
Accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Casing | To EN 10051, radiator panels. |
Heating element | To EN 442, steel panel. |
Colour | White RAL 9016, gloss 70. |
TestPressure | 13 bar. |
Operating pressure (maximum) | To EN 442, 10 bar. |
Operating temperature | 110°C. |
Height | 2110 mm. |
Depth | 132 mm. |
Length | 560 mm. 660 mm. 760 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

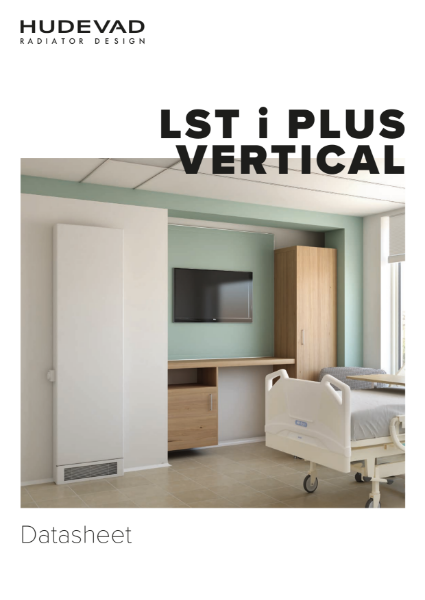

Hudevad LST i Plus Vertical
