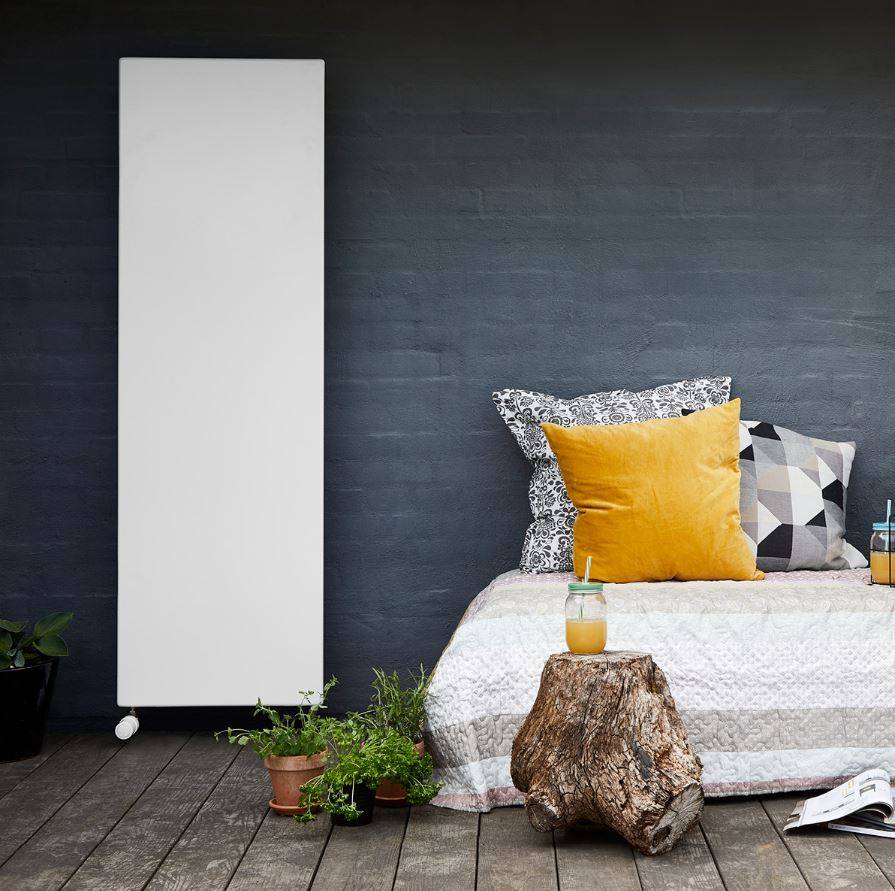

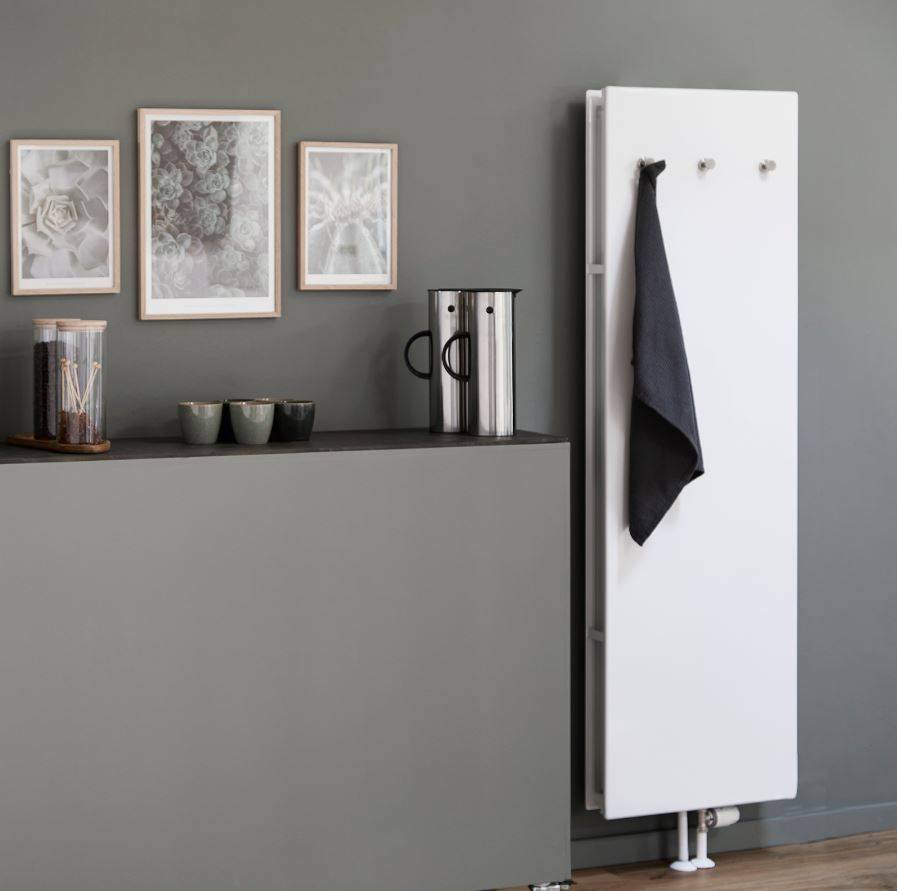

Hudevad Integral Vertical - Radiator
Verified by manufacturer 3 days ago
Type 11 Radiator
Type 11 Radiator
Independent sustainability assessment
Certificate type

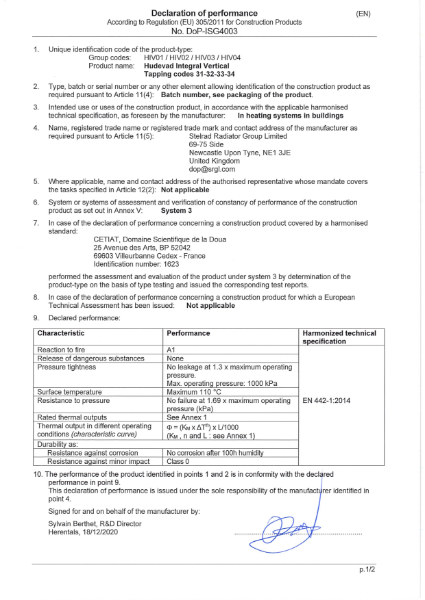

DoP
Certificate type
Wall mounted radiator in steel with fixed front panel and convectors
Application
Suitable choice for the interior of any room. Can be used in all commercial settings, office spaces and also private homes where a robust and effective radiator is needed.
Description
Integral Vertical is fitted with a smooth front plate with rounded corners. It has open sides and top for an unhindered chimney effect. Can be used in all commercial settings, office spaces and also private homes where a robust and effective radiator is needed.
The Integral Vertical is also available without convectors, so it is suitable for areas where hygiene and cleaning is very important like hospitals, dental clinics and nursing homes.
Features and benefits:
- Pre-treatment by degreasing and steel phosphating.
- Powder coated in accordance with DIN 55900, EN 442.
- Max operating pressure 10 bar in accordance with EN 442.
- 1.20 mm steel casing according to EN 10051.
- Steel panel (heating element) according to EN 442.
General information
Color | White Guidance for specification option: White RAL 9016 70% Gloss. Other |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 300 mm 400 mm 500 mm 600 mm 700 mm |
Width | 49 mm 78 mm 101 mm |
Height | 1600 mm 1800 mm 2000 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | T90/465 Radiators T90/465 Radiators |
Specification data - Radiators
Standards | To BS EN 442-1 and BS EN 442-2. |
Radiator type | Single convector panel.Guidance for specification option: Type 11. |
Output | Guidance for specification option: Consult manufacturer and insert requirements. |
Finish | Powder-coated.Guidance for specification option: In accordance with DIN 55900, EN 442. |
Connections | Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceAll connections 1/2” standard. |
Accessories | Guidance for specification option: Hudevad recommends use of Danfoss accessories when fitting the radiator. For further accessories please refer to the Hudevad Pricelist. |
Casing | To EN 10051, 1.20 mm steel. |
Heating element | To EN 442, steel panel. |
Colour | White RAL 9016, gloss 70. Guidance for specification option: Standard. Other. Guidance for specification option: Can be painted in other colours. Insert requirements. |
TestPressure | 13 bar. |
Operating pressure (maximum) | To EN 442, 10 bar. |
Operating temperature | 110°C. |
Height | 1600 mm. 1800 mm. 2000 mm. |
Depth | 49 mm. |
Width | 300 mm. 400 mm. 500 mm. 600 mm. 700 mm. |
Tapping configuration | Tapping code 32. Guidance for specification option: Tapping type: Bottom tapping's, flow left. Tapping code 34. Guidance for specification option: Tapping type: Top tapping's, flow left. Note: Top tapping is not recommended for flows below 30 L/h. Manufacturer guidanceSee manufacturers literature for more information. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature
Hudevad Integral Vertical
