Hudevad Dante - Radiator

Name: Hudevad Dante - Radiator
Brand: Hudevad Radiator Design A/S
SKU: 5tteCtdUiSe78uAUFk1VgW

Verified by manufacturer 3 months ago

Four Column Radiator

Hudevad Radiator Design A/S

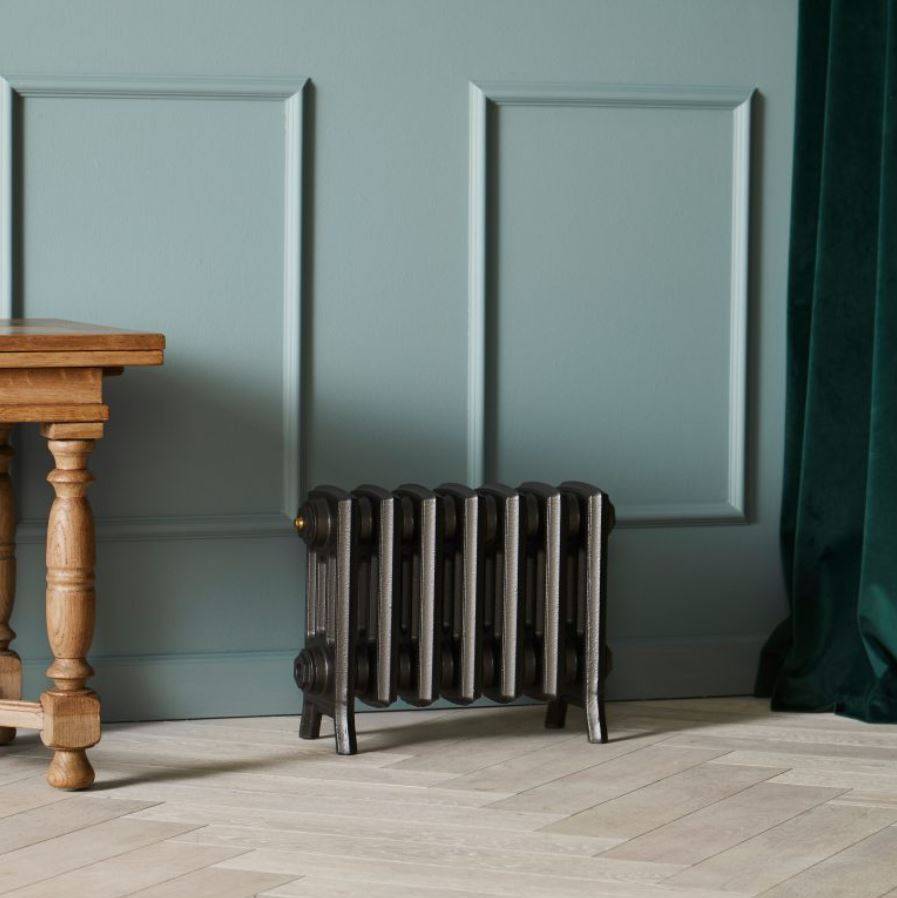

Floor-mounted cast iron column radiator in original design.

Jump to:

+44 (0)24 7688 1200 Website

Application

Suitable choice for low window spaces and attic rooms as well as larger, taller radiators required for hallways and large reception rooms.

Description

The Hudevad Dante radiator is a classical cast iron radiator in authentic design and make. The radiator is floor mounted (with wall ties for stability) for the original look. The column radiator has four or six columns depth.

Hudevad Dante provides stylish alternatives for low window spaces and attic rooms as well as larger, taller radiators required for hallways and large reception rooms.

Features and benefits:

Pre-treatment by degreasing and passivation.
Priming, water based in Umbra Grey.
Grey cast iron according to EN 10130/10131.
Max operating pressure 6 bar in accordance with EN 442.

General information

Color	Grey Other
Finish	Natural Painted
Material	Cast iron
Shape	Rectangle
Length	452 mm 573 mm 695 mm 756 mm 816 mm 938 mm 999 mm 1060 mm 1181 mm 1242 mm 1364 mm 1424 mm 1546 mm 1607 mm 1728 mm 1850 mm 1911 mm 1972 mm Show more
Width	144 mm 221 mm
Height	360 mm 505 mm 660 mm 760 mm 960 mm
Warranty description	Ten year

Uniclass	Pr_70_60_36_73 RadiatorsPrimary
CAWS	T90/465 Radiators T90/465 Radiators

Specification data - Radiators

Standards	To BS EN 442-1 and BS EN 442-2.
Radiator type	Cast iron column. Manufacturer guidance To EN 10130/10131.
Output	Guidance for specification option: Consult manufacturer and insert requirements.
Finish	Natural cast. Primed for painting.
Connections	Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidance All connections 1/2” standard, air vent (brass) and plugs are included.
Accessories	Not required. Antique brass thermostats. Guidance for specification option: BEL-TRV-AB. Brushed nickel thermostats. Guidance for specification option: BEL-TRV-BRN.

TestPressure	7.8 bar.
Operating pressure (maximum)	To EN 442, 6 bar.
Operating temperature	95°C.
Height	360 mm. 505 mm. 660 mm. 760 mm. 960 mm. Manufacturer guidance Including feet.
Depth	144 mm.
Length	452 mm. 573 mm. 695 mm. 756 mm. 816 mm. 938 mm. 999 mm. 1060 mm. 1181 mm. 1242 mm. 1364 mm. 1424 mm. 1546 mm. 1607 mm. 1728 mm. 1850 mm. 1911 mm. 1972 mm. Show more
Columns	Four.
Tapping configuration	Tapping code 10. Guidance for specification option: Tapping type: ABCD (4 taps).

Sustainability data

Contains Red List materials	No
Country of material origin	Turkey
Country of product manufacture	United Kingdom
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
