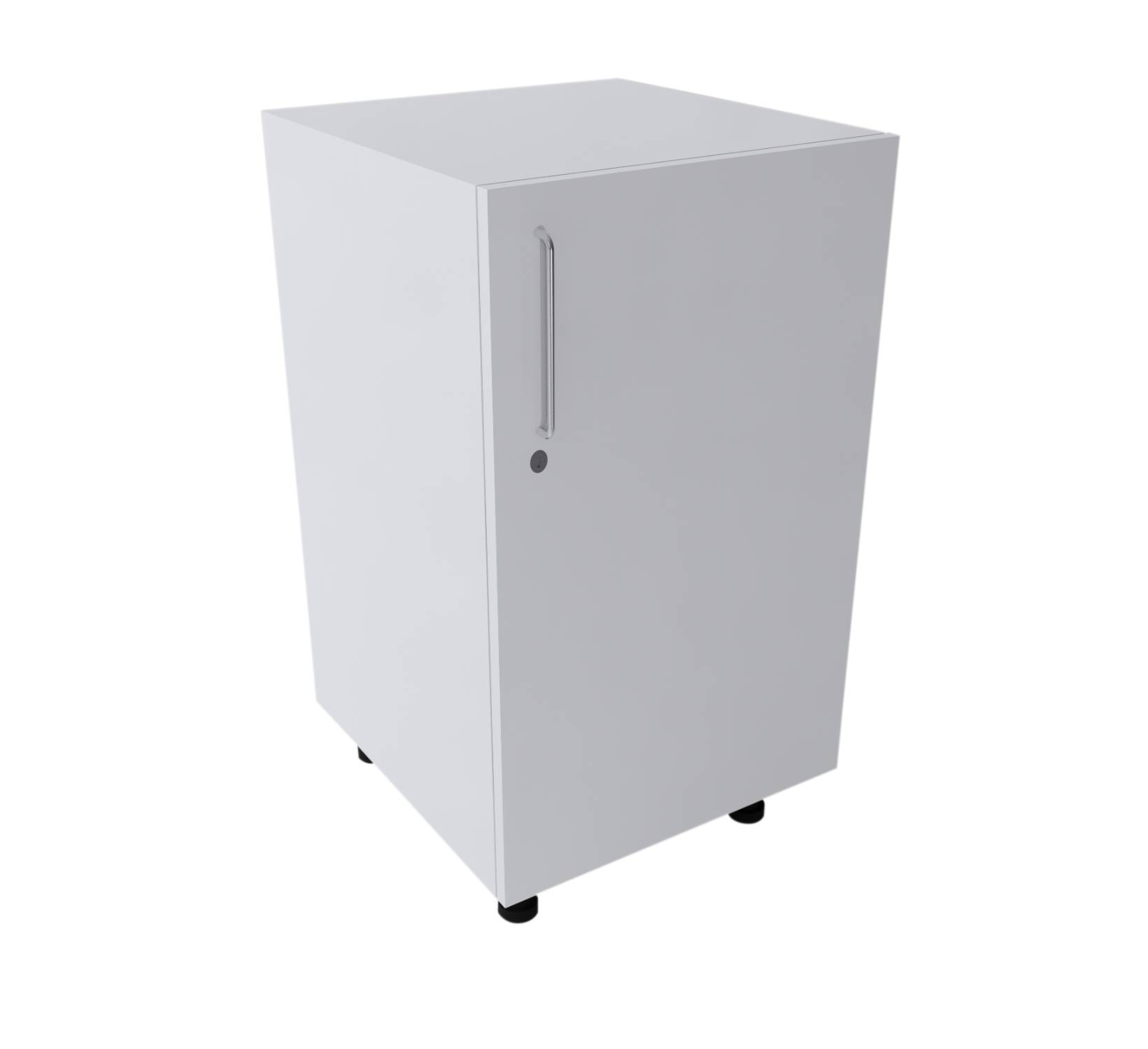

HTM63 Base Cabinets – Single - Clinical Cabinet
Verified by manufacturer 2 days ago
BU3005: 300 mm Base Unit
BU3005: 300 mm Base Unit
ISO 9001 Quality Management
Certificate type
Health & Safety Accreditation
Certificate type
Acclaim Accreditation
Certificate type
Constructionline Gold
Certificate type
Clinical cabinetry with a wide range of forms.
Application
Suitable for clinical and non clinical applications.
Description
The HTM63 base cabinet range have a selection of cabinets with various doors and drawer configurations.
Features and benefits:
- Can be used in clinical and non-clinical environments.
- Supplied with fixed or adjustable shelving.
- Supplied as standard in white or grey.
- A wide range of colours are also available, consult manufacturer.
- 18 mm MFC construction.
- Grass Tiomos concealed cup hinge and plate 120° hinges.
- 192 mm steel D pull handle.
- Adjustable plastic plinth feet.
- Syno 3000 cam lock with keys.
- Additional 70 mm service void at rear.
General information
Color | White Grey Other |
Material | MFC |
Shape | Rectangle |
Length | 300 mm 400 mm 500 mm 600 mm |
Width | 500 mm |
Height | 900 mm |
Uniclass | |
CAWS | N10/130 Laboratory furniture N10/135 Storage and display units |
Specification data - Laboratory storage units
Form | Floor-mounted shelf units. |
Dimensions | 300 x 500 x 900 mm.Manufacturer guidanceLength x depth x height. |
Material | 18 mm MFC. |
Colour | White Egger® with Hranipex® white pearl edging.Guidance for specification option: Finish colour codes: W980 ST2, HU10980. Light grey Egger® with Hranipex® grey pearl XG edging.Guidance for specification option: Finish colour codes: U708 ST9, HU17035. Light grey Egger® with Hranipex® blue pearl edging.Guidance for specification option: Finish colour codes: U708 ST9, HU15510. |
Arrangement | Open shelving cabinet. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | MFC |
Recyclability | Made from materials that are widely accepted by recycling facilities. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 30 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Health & Safety Accreditation
CHAS
Acclaim Accreditation
Acclaim SSIP
Constructionline Gold
Facilitiesline Gold
Case studies
Great Ormond Street Hospital: PAMHS Department
Worcestershire Royal Hospital: A&E Department
University Of Bristol Dental School
Milton Keynes University Hospital – Radiotherapy Centre
Queen Alexandra Hospital, Portsmouth – A&E
