HRV Q Plus (MVHR) - Mechanical Ventilation w/ Heat Recovery

Name: HRV Q Plus (MVHR) - Mechanical Ventilation w/ Heat Recovery
Brand: Titon
SKU: 3U6QfkSAv4bY2RSUGQ1zc9

Verified by manufacturer 1 month ago

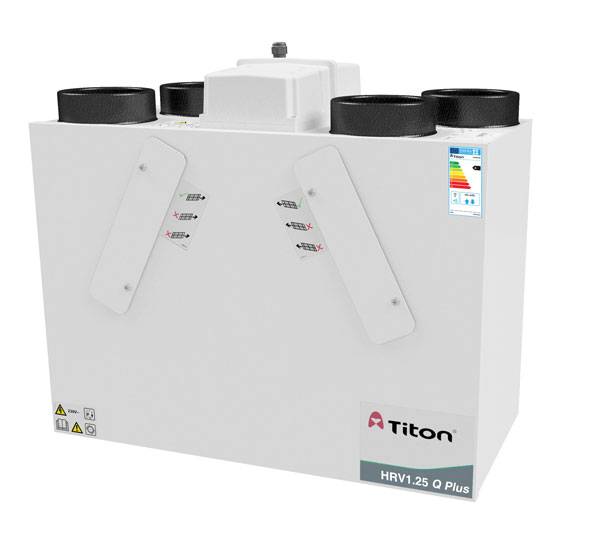

HRV1.25 Q Plus

Titon

Range of mechanical ventilation with heat recovery (MVHR) units that work by combining supply and extract air.

Jump to:

+44 (0)1206 713800 Website

Application

Suitable for new build multi dwellings; houses, flats or apartments, usually in dwellings that are classed as ‘highly airtight dwellings’ in Part F.

Description

Range of mechanical ventilation with heat recovery (MVHR) units that work by combining supply and extract air.

Moisture-laden, stale air is extracted from wet areas, such as kitchens and bathrooms. The heat from the extract air is recovered by the heat exchanger in the MVHR unit and is recycled by warming up the supply air entering a dwelling.

Features and benefits:

All models perform to Energy Savings Trust Best Practice levels.
Controlled airflows.
Pre-heated incoming fresh air.
Heat exchange may reduce heat demand.
May be useful where external noise pollution is a problem as there are fewer building penetrations.
Low Specific fan power to 0.39 W/L/s.
Airflow up to 178 L/s (640 m³/h).
Heat recovery rates up to 92%.
Award winning Trimbox NO₂ filter options.
Four configurable speed options.
Full thermal summer bypass.
Offers an extensive range of controls.
Sensors available: humidity, CO₂, temperature and air quality.
Zintec sheet steel or expanded polypropylene casings.
Independently Acoustically tested to BS EN 13141-7 (Induct measurements)
Silencer attenuators available to assist in noise control
Enthalpy option available

General information

Color	White
Finish	Powder-coated
Material	Steel Polypropylene
Shape	Rectangle
Length	285 mm 353 mm 477 mm 533 mm 600 mm Manufacturer guidance Depth (excluding mounting bracket).
Width	600 mm 752 mm 1000 mm
Height	430 mm 505 mm 602 mm 708 mm 200 mm
Warranty description	Three year Guidance for specification option: UK only; consult manufacturer for details.

Uniclass	Pr_65_67_29_23 Domestic fan unitsPrimary
CAWS	U90/413 Ventilation fan units U90/413 Ventilation fan units

Specification data - Domestic fan units

Standards	-
Performance testing	Tested to BS EN 13141. Conforms to requirements of UK statutory Building Regulations and Technical Standards for Ventilation and BRE 398. SAP Appendix Q tested. Exceeds requirements of Building Regulations Approved Document L (England & Wales). EU RoHS Directive compliant. Conforms to requirements of EC council directives relating to Electromagnetic Compatibility and Electrical Safety: 2006/95/EC (LVD), 2004/108/EC (EMC).
Safety	To EN 60335-1:2002/A2:2006 and EN 60335-2-80:2003/A1:2004.
Third-party certification	CE and UKCA marked.
Duty	Airflow up to 178 L/s (640 m³/h). Guidance for specification option: Airflow is dependent on model specified; consult manufacturer's literature for details.
Mounting	Horizontal/ wall.
Controls	auralite® HRV (TP518). Guidance for specification option: Available for TP406HMB only. auralite® HRV (TP519). Guidance for specification option: Available for TP416B only. aura-t™ HMB (TP539). Guidance for specification option: Available for TP416B only. Available with onboard capabilities. aura-t™ B (TP536). Guidance for specification option: Available for TP406HMB only. Available with onboard capabilities. aura-t™ SMART. Guidance for specification option: Available for TP406HMB only. Available with onboard capabilities. aura-t™ SMART (B WiFi). Guidance for specification option: Available for TP416B only.
Accessories	Guidance for specification option: A range of accessories is available; consult manufacturer for details and insert requirements, or omit. Note that not all accessories are available for all models. Manufacturer guidance Accessories include: Filter access - removable covers. Filter access - drop down panel. Humidity sensor. SUMMERboost®. Summer bypass. Summer mode. Duct pre-heater connection. Independent fan adjustment. Sleepless fan speed setting. Automatic frost protection. Setback speed. Adjustable boost overrun timer.

Dimensions	Width x height x depth (excluding bracket): 600 x 430 x 285 mm.
Weight	16 kg.
Materials	Housing: Zintec sheet steel. Internals: Expanded polypropylene (EPP). Heat exchanger: Polystyrene. Internal insulation: Closed cell foamed Nitrile rubber, class 0 fire rating. Standard filters: Grade ISO Coarse 55% (G3) synthetic filters.
Electrical	Electrical: 230 V, 50/ 60 Hz, 3 A fuse.
Ducting	125 mm diameter.
Performance	Maximum number of kitchen and wet rooms: Four. Heat recovery: 91. Specific fan power (SFP): 0.59 W/L/s. Sound level: 23 dB.
Colour/ Finish	White paint, RAL 9016 semi-gloss Traffic White.
Model	TP406HMB. TP416B.
Configuration	Right hand. Left hand.
Options	N/A.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Steel Polypropylene
Manufacturing plant location	Falconer Rd, Haverhill CB9, UK
Expected Life	12 year
