Sonair 3 - Air Supply Unit
Verified by manufacturer 26 days ago
UK Conformity Assessed (UKCA)
Certificate type
Acoustic (sound attenuating) filtered air supply units.
Application
- Suitable for residential applications.
- For use fitted through walls.
Description
Sonair 3 is a wall-mounted input fan featuring a detachable remote control with an LED speed indicator. It provides mechanical input ventilation when switched on, and when switched off provides background trickle ventilation which includes a controllable shutter. Sonair 3 is designed with sound attenuating features to reduce noise transferring from outside to inside the home.
Features and benefits:
- Ventilates and filters the air.
- Independently tested for acoustic performance.
- Low energy.
- Meets guidelines for occupant accessibility.
- Increase occupant awareness of system operation.
- Discreet design.
- Supplied with a flexible 1.8 m long cable with a 13 amp three pin plug fitted with a 3 amp fuse.
General information
Color | White |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Other |
Length | 134 mm Manufacturer guidanceDepth. |
Width | 340 mm |
Height | 445 mm |
Warranty description | Two year |
Uniclass | |
CAWS | U90/413 Ventilation fan units U90/413 Ventilation fan units |
SKU Code | 352004 |
Specification data - Domestic fan units
Classification data | |
Standards | |
Safety | To BS EN 60335-1 and BS EN 60335-2-80. |
Third-party certification | UKCA marked. |
Duty | 41.7 L/s (maximum). Guidance for specification option: With ISO Coarse 60% filter. |
Mounting | Wall. |
Controls | Remote control. |
Accessories | Sonair 3 Filter G4/ISO Coarse 60%. |
Ducting | Sonair 3 Sound Insulating Tube D100 (110361). 100 mm diameter (non-sound insulating) duct, 350 mm long (8960097). |
Grille | White external grille (8960105). Brown external grille (8960102). Beige external grille (8960103). |
Sound attenuation | To ISO 10140-2 and BS EN ISO 717-1, Dn,e,w (C;Ctr): 58(-1;-2) dB. Guidance for specification option: Sound insulating tube D100 is required. Independently tested by the BRE to requirements of noise insulation regulation. |
Weight | 4.5 kg. |
Dimensions | 445 x 340 x 134 mm. |
Materials | Plastic ABS. Guidance for specification option: White RAL 9003. |
Electrical | 220–240 V a.c., 50 Hz. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
Product certifications
UK Conformity Assessed (UKCA)
Sonair 3 - Declaration of Conformity
Literature
Literature type
Sonair 3 - Installation Instructions

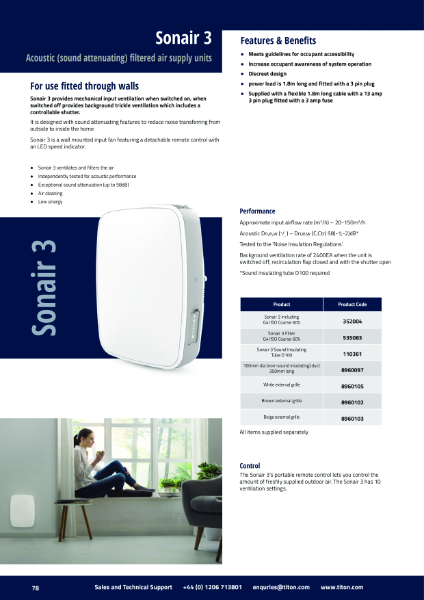

Sonair 3 - Product Data Sheet
Similar products from Titon

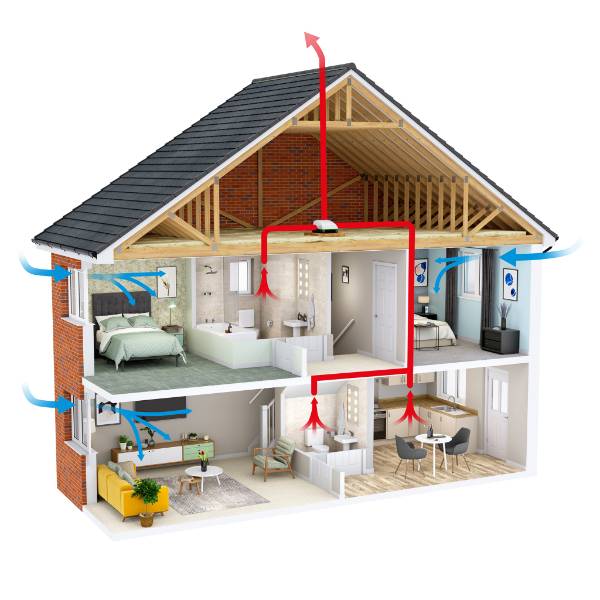

CME Q Plus (MEV) - Continuous Mechanical Ventilation
HRV Cool Plus™ - Cooling Module for MVHR

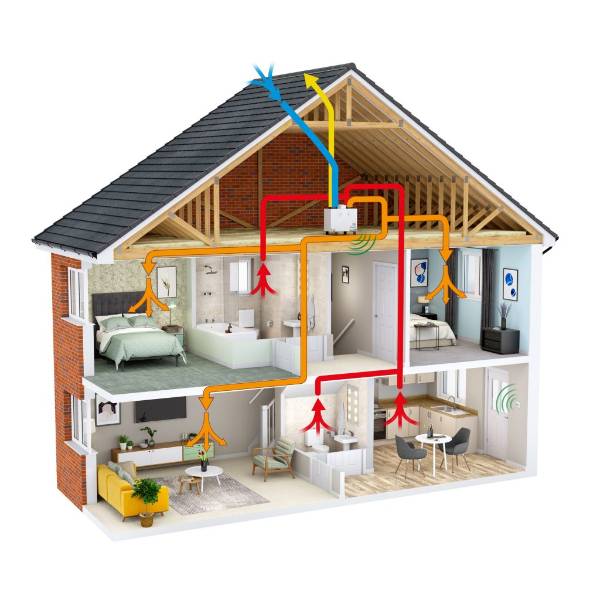

HRV Q Plus (MVHR) - Mechanical Ventilation w/ Heat Recovery
