HPS5 Protection Geotextile - Geosynthetics

Verified by manufacturer 4 months ago

Geofabrics Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • CE Marking

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

Thick needle punched nonwoven geotextile manufactured from 100% virgin polypropylene high tenacity fibres containing 1% active carbon black.

Jump to:
+44 (0) 113 202 5678 Website

Application

Typical applications include, but are not limited to:

  • Soil particle filtration and separation in civil engineering applications.
  • Protection of membranes and waterproofing systems.

Description

Thick needle punched nonwoven geotextile manufactured from 100% virgin polypropylene high tenacity fibres containing 1% active carbon black.


Features and benefits:

  • Optimised for maximum strength and performance – not mass.
  • Available in wide widths to allow for minimal construction costs – up to 6 m.
  • Manufactured from a blend of high tenacity fibres.
  • 100% virgin polypropylene fibres for guaranteed durability.
  • Carbon black for UV stability.

General information

Color

Black

Finish

Natural

Material

Polypropylene

Shape

Rectangle

Length

150000 mm

25000 mm

Width

6000 mm

2000 mm

Height

4.9 mm

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

J42/10 Warm deck roof covering

J42/12 Inverted roof covering

D20/550 Geotextile sheet

D41/240 Geotextile

J42/383 Separating layer

J44/280 Geotextile protective lining

Q20/170 Geotextile filter/ separator membrane

Q25/365 Geotextile sheet

D20/57 Geosynthetic sheet

R12/492 Geotextile membranes – filter

Specification data - Plastics sheets

Material

Polypropylene.

Purpose

Geotextile.

Standard

To BS EN 13249, BS EN 13250, BS EN 13251, BS EN 13252, BS EN 13253, BS EN 13254, BS EN 13255, BS EN 13256, BS EN 13257, BS EN 13265.

Performance characteristics

-

Tensile strength (minimum)

To BS EN 10319, 30 kN/m.

Guidance for specification option:

MD/CMD.

Elongation to break

To EN ISO 10319, 80%.

UV stabilization

To EN ISO 13438, 2688 hours.

Form

Micro-perforated (Needle punched), non-woven.

Physical properties

-

Colour

Black.

Dimensions

-

Thickness (minimum)

4.9 mm.

Guidance for specification option:

Thickness @ 2kPa (nominal), to EN ISO 9863-1.

Width (minimum)

6 m.

Roll length (minimum)

150 m.

Recycled content

None – virgin material.

Execution

Consult manufacturer for details.

Product Reference

HPS5 Protection Geotextile

Water permeability

To EN ISO 12956, 65 L/(m²·s).

Weathering

To EN ISO 12224, >90% retained strength.

CBR puncture resistance

To EN ISO 12236, to 5 kN.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

GEOFABRICS LIMITED ISO 9001:2015

CE Marking

CE Marking

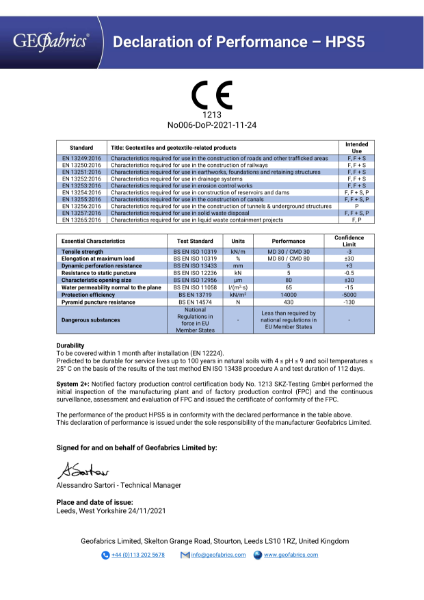

Declaration of Performance – HPS5 - CE

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

Declaration of Performance – HPS5 - UKCA

Literature

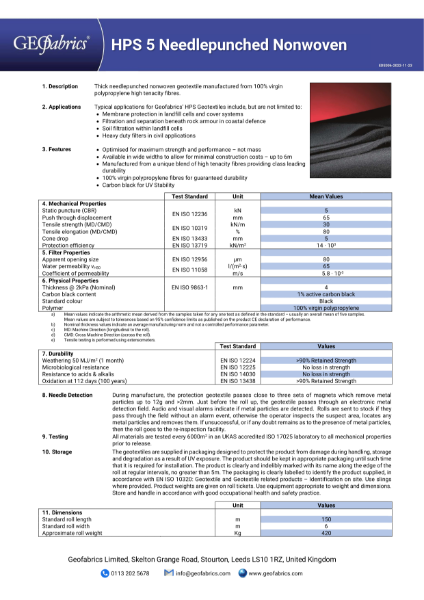

HPS 5 Needlepunched Nonwoven Product Data

HPS 5 Needlepunched Nonwoven Product Data

Case studies

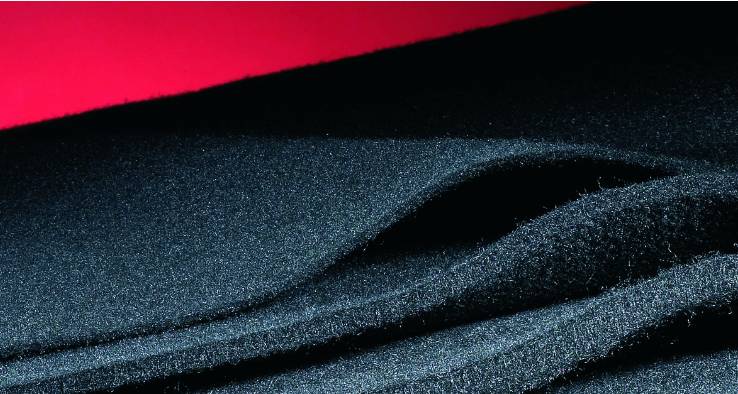

Rock Armour Filter – HPS5
