Horizontal Adaptor System - Facade Support
Verified by manufacturer 16 days ago
UKAS
Certificate type
Facade cladding support system
Application
For use as cladding support for:
- Vertical ‘Cedral’ Weatherboard system.
- Vertical aluminium plank panels.
Description
EVT II Horizontal Adaptors brackets are designed in a vertical direction to enable simple fixing to the SFS stud.
UL (Winmark, UKAS accreditation) approved facade systems, approval recognised by the NHBC.

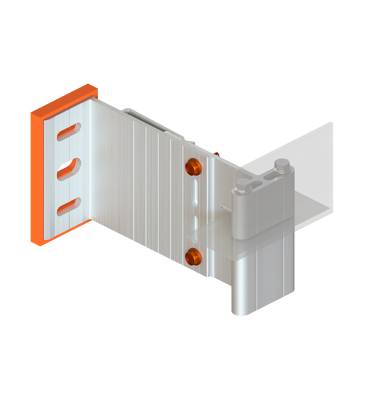

The adaptor piece is designed to be fixed to a single EVT II bracket, for simple conversion of the support profile from vertical to horizontal position. Horizontal brackets are the best solution for to support T and L profiles in the horizontal plain for vertical plank systems and feature band details.
The adaptor uses the features of the EVT II bracket range for multi-substrate application.
The system comprises of:

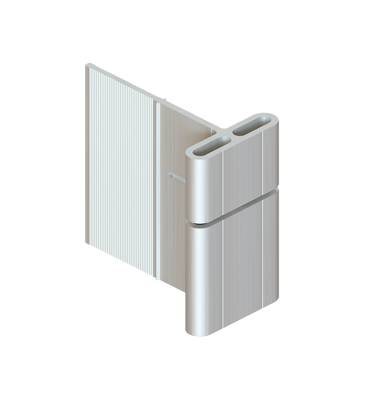

- EVT II Horizontal Adaptor.
- Cladding (supplied by others).
General information
Color | Silver |
Finish | Mill |
Material | Aluminium |
Shape | Other |
Length | 86 mm |
Width | 47 mm |
Height | 80 mm |
Uniclass | |
CAWS | H20/10 Sheet cladding H20/150 Sheet cladding (attached to metal support systems) H30/120 Fibre cement H30/10 Fibre cement H92/120 Rainscreen cladding |
Specification data - Aluminium cladding support system
Classification data | |
System manufacturer | RJ Facade Systems Ltd. |
System reference | Horizontal Adaptor System |
Products | EVT II Horizontal Adaptor - 85 x 80 x 3 mm. |
Material: | Aluminium EN AW 6063 T6. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 4 | |
Recyclability | 100% Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 44 % |

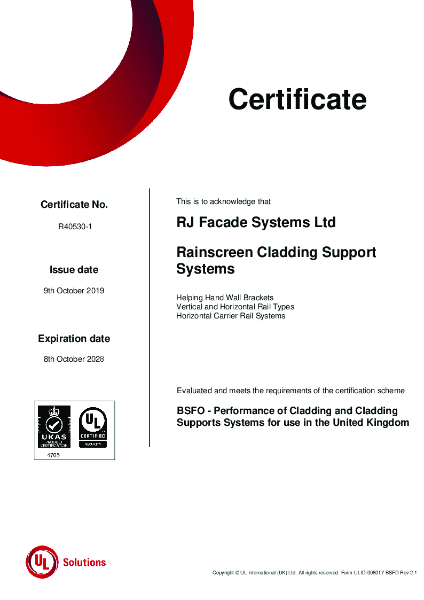

Product certifications
UKAS
RJ Facades UL UKAS R40530 Rev 7
