U Bracket and Profiles (Floor Spanning) - Facade Support

Name: U Bracket and Profiles (Floor Spanning) - Facade Support
Brand: RJ Facade Systems Ltd
SKU: eSdg88jKYbf9uTcmjEfJh1

Verified by manufacturer 16 days ago

RJ Facade Systems Ltd

Product certifications:

UKAS
Certificate type
EPD
Certificate type

Facade cladding support system using aluminium 'U' brackets and profiles.

Jump to:

Request BIM

01483 898125 Website

Application

For use as cladding support for:

Vertical application.
Concealed fix.
Floor to floor.
Heavy materials.

Description

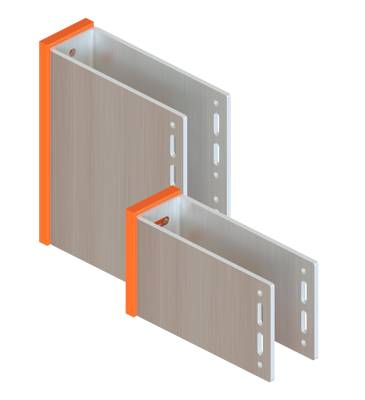

U-Shaped Brackets are designed to be capable of withstanding larger spans, engineered to support large cavities and where there is a need to span between floors due to fixing constraints between slabs.

UL (Winmark, UKAS accreditation) approved facade systems, approval recognised by the NHBC.

Subject to design approval U-Brackets can also be used to support medium to heavyweight facades in applications where the loadings are too high for standard EVT L-Brackets.

Aluminium brackets for rainscreen are designed in accordance with BS EN 1090-3:2008 and / or Euro code 9 – Part 1.

EVT U-Brackets are designed using vertical box sections with a 50mm base and varying depths, box section to be specified by RJ facades technical department.

The brackets base has fixing slots suitable for concrete, steel and timber, it also includes slots and holes for Fixed and Sliding Point brackets.

Brackets are available with various thermal pad options to improve overall thermal performance.

The system comprises of:

EVT II U Bracket AL.
EVT II U Bracket A2.
EVT II Thermal pads.

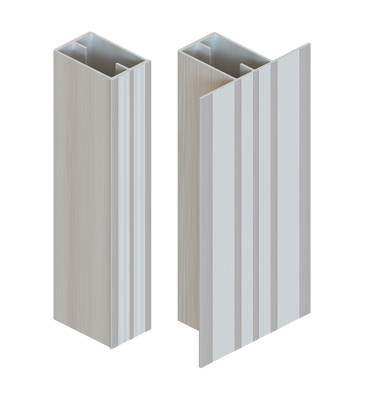

Floorspan Profiles.
Floorspan T Profiles.
Cladding (supplied by others).

General information

Color	Silver
Finish	Mill
Material	Aluminium
Shape	Other
Width	60 mm 80 mm 100 mm 120 mm 160 mm 180 mm 200 mm 220 mm 240 mm 260 mm 280 mm 300 mm 320 mm 340 mm Show more
Height	80 mm 160 mm

Uniclass	Ss_25_20_12_02 Aluminium cladding support systemPrimary
CAWS	H40/110 GRC cladding H20/10 Sheet cladding H51/110 Cladding H30/10 Fibre cement H51/110 Cladding H20/150 Sheet cladding (attached to metal support systems) H30/120 Fibre cement H92/120 Rainscreen cladding

Specification data - Aluminium cladding support system

Classification data
System manufacturer	RJ Facade Systems Ltd.
System reference	U Bracket and Profiles (Floor Spanning).
Certification	UKAS/ UL Winmark approval.
Products	See 'Additional properties' below.
Aluminium profiles	Floorspan Profile – 40/38 x 60 x 2/3mm (3.0m Length) Floorspan T Profile – 110/38 x 60 x 2/3mm (3.0m Length) Floorspan Profile – 40/38 x 100 x 3mm (3.0m Length) Floorspan T Profile – 110/38 x 100 x 2/3mm (3.0m Length)
Material grade	EN AW 5083 'O' - H111/4017-H32
Brackets	EVT II U Bracket AL. Manufacturer guidance Available in a range of sizes. Consult manufacturer for further details and insert requirements.
Thermal insulation	EVT II Thermal pad 80 x 42 mm.

Sustainability data

Country of product manufacture	United Kingdom
Material	Aluminium
Recyclability	Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	44 %
Expected Life	Lifetime
