Briklok™ Brick Slip - Facade Support

Name: Briklok™ Brick Slip - Facade Support
Brand: RJ Facade Systems Ltd
SKU: 2VEhYJvxafjVkKJbWRpEyi

Verified by manufacturer 16 days ago

RJ Facade Systems Ltd

Product certifications:

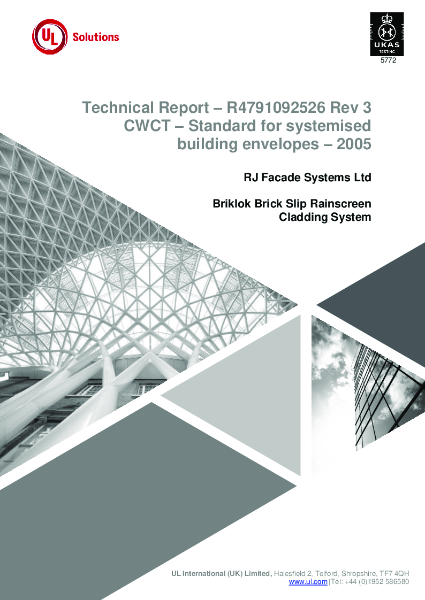

CWCT Certificate
Certificate type

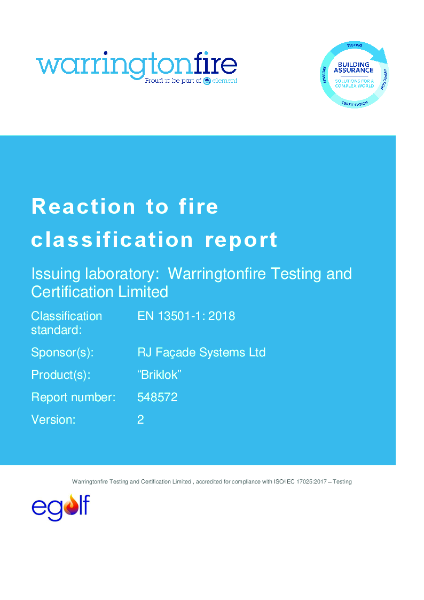

REACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
UKAS
Certificate type

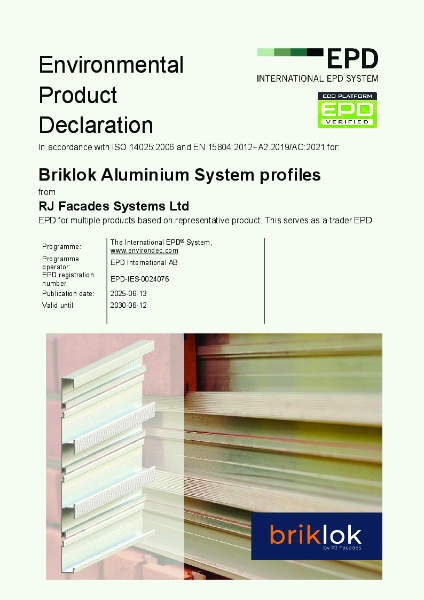

EPD
Certificate type

Mechanically fixed brick slip cladding support system using a range of profiles and spacers.

Jump to:

Request BIM

01483 898125 Website

Application

For use as cladding support for:

Ventilated facades.
Brick slip cladding systems.
Mechanically fixed
High rise applications.
Low rise applications

Description

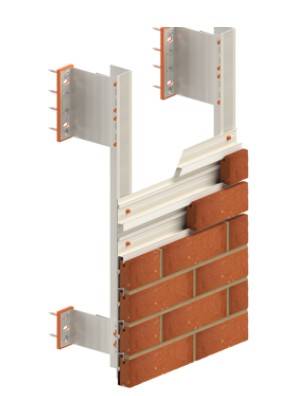

Brick slip cladding support system using a range of profiles and spacers.

Designed to provide a strong backing support wall for ventilated facades.

The system comprises of:

Briklok™ profiles.
Spacers.
Brick slips (supplied by others) - the system is compatible with most types of T2 natural bricks from manufacturers including Ibstock.

Features and benefits:

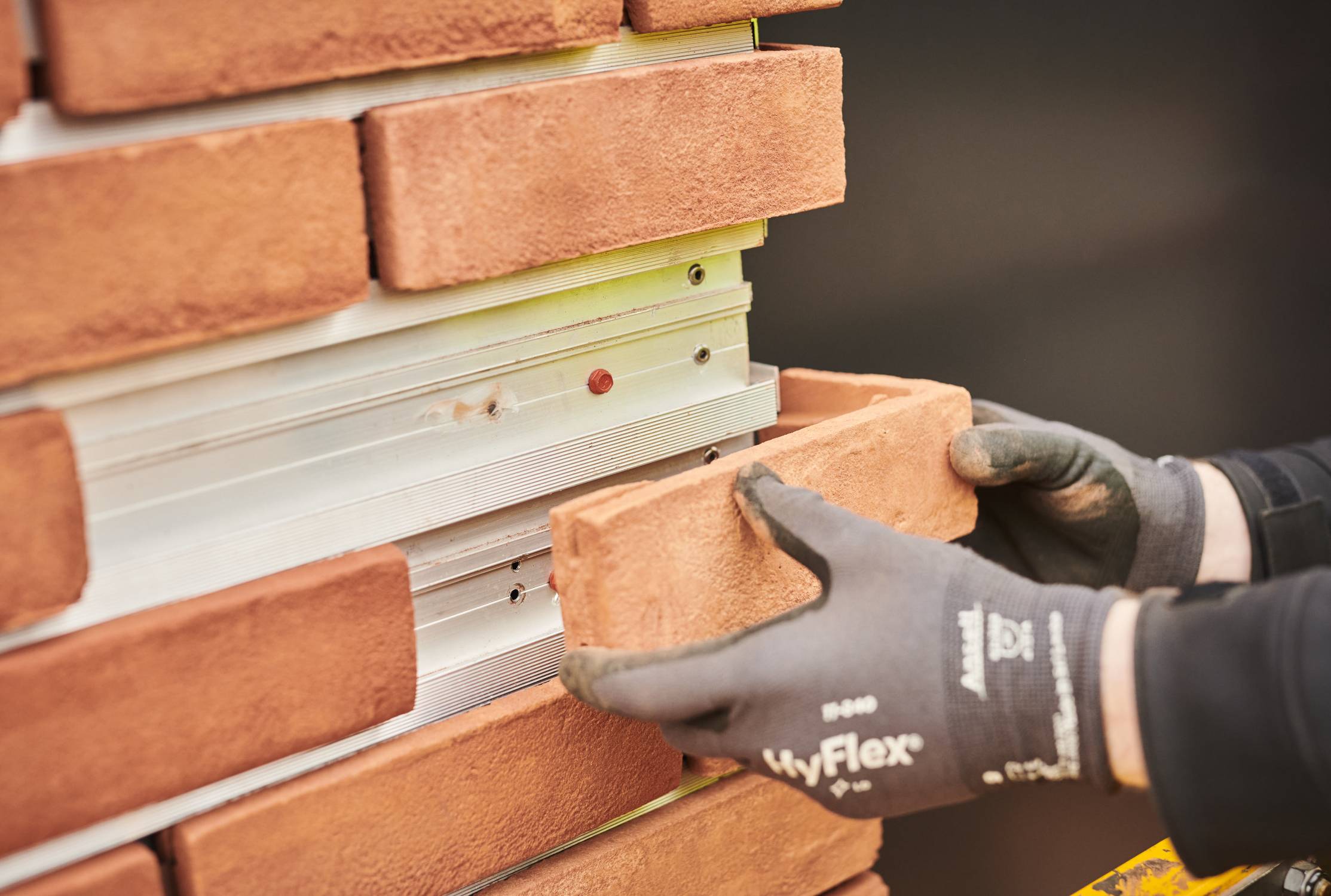

Fully enclosed back aluminium support frame for natural brick slips.
Interlocking design that creates a solid aluminium inner cavity, supporting simple, tested cavity barrier installation.
Creates the possibility of the off-site fabrication of columns and corner returns, resulting in improved, reduced installation time.
Cutting and punching off-site produces clean and accurate cuts and holes, at a precision un-achievable on site. This can reduce wastage, and result in a flawless final product.
Centre for Window and Cladding Technology (CWCT) tested for air leakage, watertightness, point load impact, and wind resistance.
Brick slips enable lightweight construction, with the timeless aesthetic appeal of brick even in high-rise applications.
Limitless options for design and finish.
Patent pending.

General information

Color	Silver Clear Black Bronze Blue Beige Brown Copper Cream Gold Green Grey Ivory Orange Pink Red Purple Turquoise White Yellow Other Show more
Material	Aluminium Stainless steel
Shape	Other
Length	3000 mm
Width	Bespoke Manufacturer guidance Minimum 62 mm. Maximum 67 mm.

Uniclass	Ss_25_20_12_02 Aluminium cladding support systemPrimary
CAWS	F10/110 Clay facing brickwork F10/5 Facing brickwork H92/120 Rainscreen cladding

Specification data - Aluminium cladding support system

Classification data
System manufacturer	RJ Facade Systems Ltd.
System reference	Briklok™ Brick Slip.
Standards	To BS EN 771-1. Guidance for specification option: (Brick slip design only).
Certification	UKAS/ UL Winmark approval/ CWCT (sequence B).
Products	Briklok™ S Upper/ Mid Profile with Briklok™ Lower Profile and Briklok™ Spacer. Guidance for specification option: As standard. Designed for a brick with dimensions from 62 mm to 65 mm. Briklok™ XL Upper/ Mid Profile with Briklok™ Lower Profile and Briklok™ Spacer. Guidance for specification option: Designed for a brick with dimensions from 64 mm to 67 mm. Manufacturer guidance The two sizes were created because of the variance that occurs in real bricks. The size of profile required will be determined pre-project, based on a sample of bricks. Both Briklok™ and Briklok™ XL use the same lower profile. This is not effected by the height of the brick. Briklok™ MJ profiles will be used within movement joints. Standard, corner and column details are available dependent on requirements.
Aluminium profiles	T-profile. L-profile. Structural top hats. Structural C-profiles. Manufacturer guidance Consult manufacturer for further details and insert requirements.
Material grade	EN AW-6063 T6.
Brackets	EVT II L-brackets - aluminium. EVT II L-brackets - stainless steel. EVT II U-brackets - aluminium. EVT II U-brackets - stainless steel. Manufacturer guidance Available in a range of sizes. Consult manufacturer for further details and insert requirements.
Primary	Stainless steel rivets. Guidance for specification option: Consult manufacturer and insert requirements.
Secondary	- Manufacturer guidance Consult manufacturer and insert requirements or omit.

Sustainability data

Country of product manufacture	United Kingdom
Material	Aluminium Stainless steel
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 4.0
Recyclability	100% Recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	44 %
